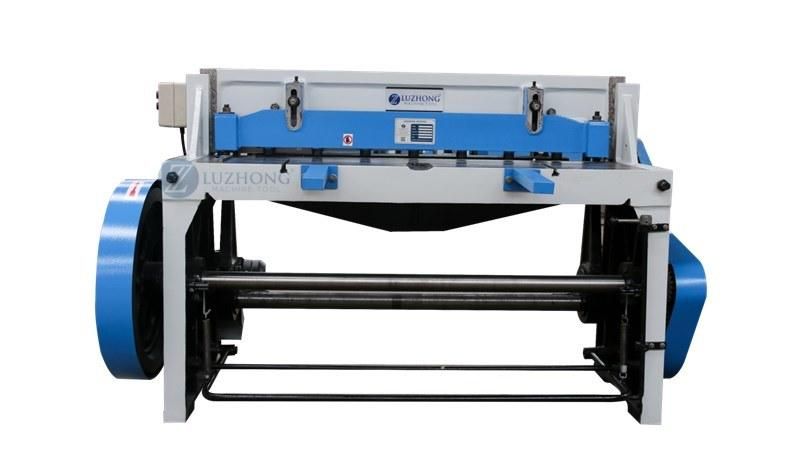

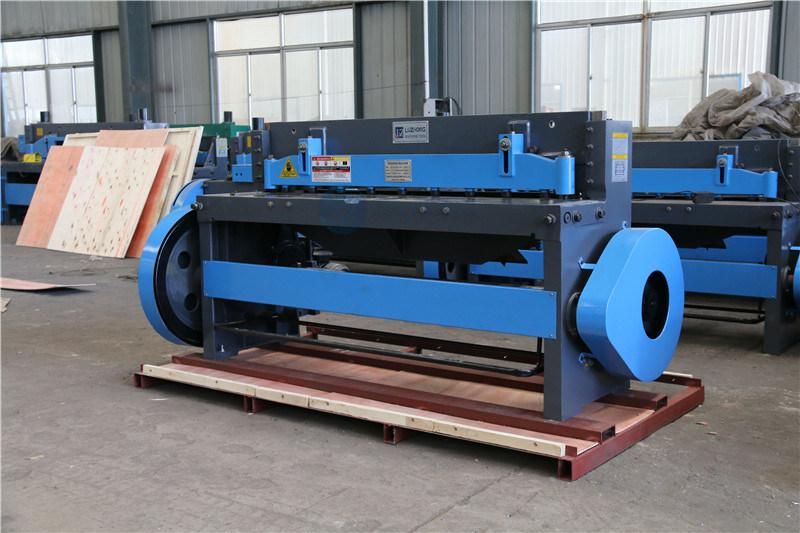

Plate shearing machine Q11 Electric Sheet Shearing Machine
Shandong Luzhong Machine Tool Co., Ltd.- Certification：CE, RoHS
- Condition：New
- Product Name：Plate shearing machine Q11 Electric Sheet Shearing
- Modle：Q11-3X1300
- Max.shearing thickness (mm)：3
- Max.shearing width (mm)：1300
Base Info
- Model NO.：Q11-3x1300
- Shearing angle：2
- No.of stroke(per minute)：20
- Motor power(kw)：3
- Back gauge(mm)：350
- Packing size(cm)：233X136X154cm
- N.W./G.W.(kg)：1400,1550kg
- Transport Package：Plywood Case
- Specification：2330x1360x1540mm
- Trademark：Luzhong Machine Tool
- Origin：China
- HS Code：8459409000
- Production Capacity：300 Set Per Month
Description

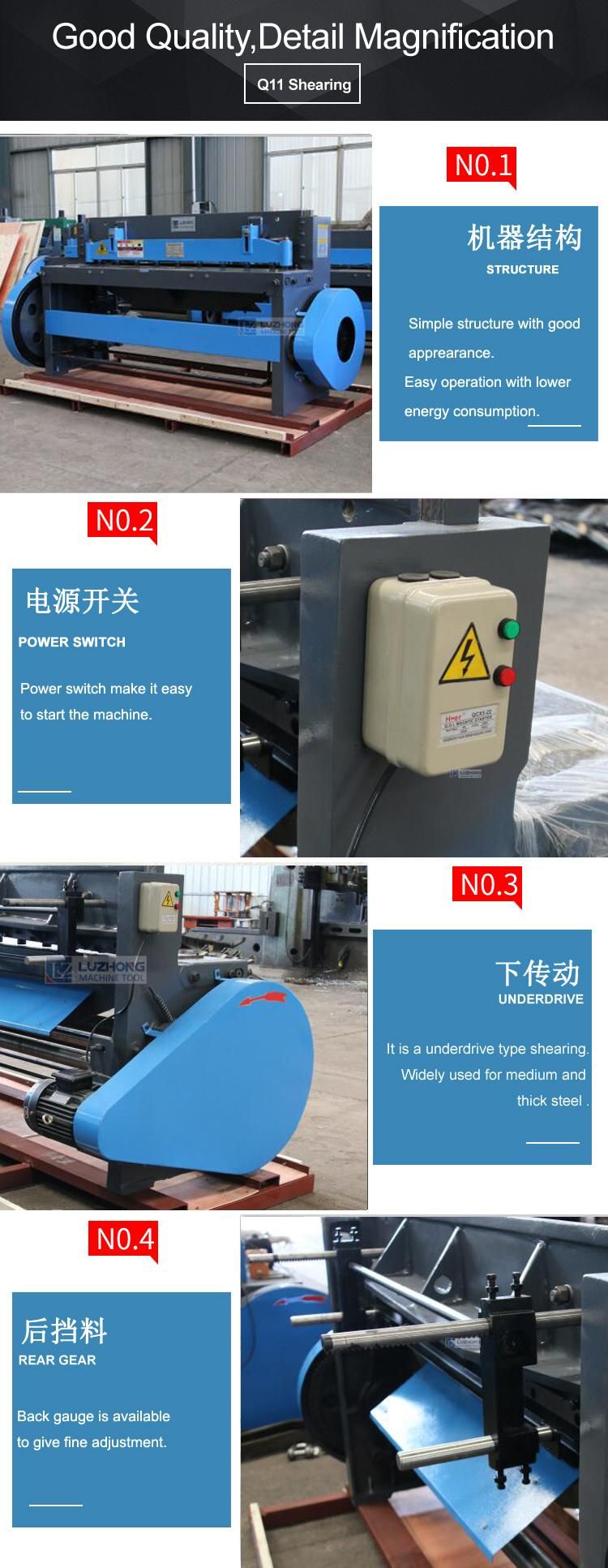

Specifications:Long-life of high quality blade
Back gauge is available to give fine adjustment
Simple construction with good appearance
Features:
1. Structured finished products,
2. Low center of gravity,
3. Sound vibration-proof performance
4. Stable property.
5. Long-life of high quality blade
6. Back gauge is available to give fine adjustment
7. Simple construction with good appearance
8. Easy to operate with lower energy consumption
9. Widely used for medium and thick steel
10. Our electric shearing machine is used to cast components and has the advantages of producing firmly structured finished products, low center of gravity, sound vibration-proof performance, uniform transmission and stable property.
11. Its capacity range is from 1300 to 2500 mm length and the maximum thickness can reach 10 mm. Our electric shearing machine is used for shearing large and medium thickness plates.
Product Main Technical Specifications:
| Model | Q11-3x1300 | Q11-3x1500 | Q11-4x2000 | Q11-4x2500 | Q11-4x3200 |
| Max.shearing thickness (mm) | 3.0 | 3.0 | 4.0 | 4.0 | 4.0 |
| Max.shearing width (mm) | 1300 | 1500 | 2000 | 2500 | 3200 |
| Shearing angle | 2° | 2° | 2° | 2° | 1.3° |
| No.of stroke(per minute) | 20 | 20 | 20 | 20 | 20 |
| Motor power(kw) | 3 | 3 | 5.5 | 5.5 | 7.5 |
| Back gauge(mm) | 350 | 350 | 500 | 500 | 500 |
| Packing size(cm) | 233x136x154 | 240x130x150 | 318x177x155 | 370x151x149 | 520x210x185 |
| N.W./G.W.(kg) | 1400/1550 | 1600/1750 | 3000/3200 | 3600/3850 | 6800/7100 |
