• Model NO.：EPB-1050
• Condition：New
• Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
• Automation：Automatic
• Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet

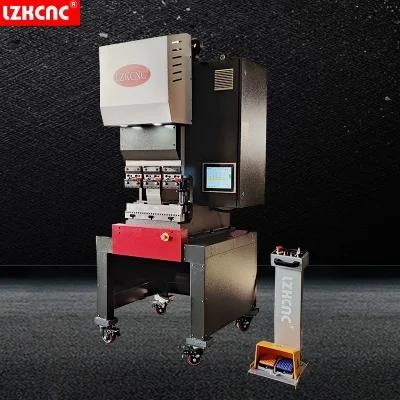

• Type：Press Brake
• System：Lz80t
• Backgauge：500mm Distance, Ball Screw, Linear Guide Rail
• Bending Angle Programmed：Yes
• Max Bending Thickness：3mm
• Max Bending Legnth：2500mm
• Clamping System：Quick Clamp
• Main Motor：Siemens
• Hydraulic Valve：Rexroth
• Weight：2600kg
• Transport Package：20gp
• Specification：1520*1700*2550 mm
• Trademark：LZK
• Origin：China
• HS Code：8462230000
• Production Capacity：100 Sets,Month
• Package size per unit product：1000.00cm * 940.00cm * 2350.00cm
• Gross weight per unit product：980.000kg

Rack machining:The bending machine frame is integrally processed by a large floor boring and milling machine.

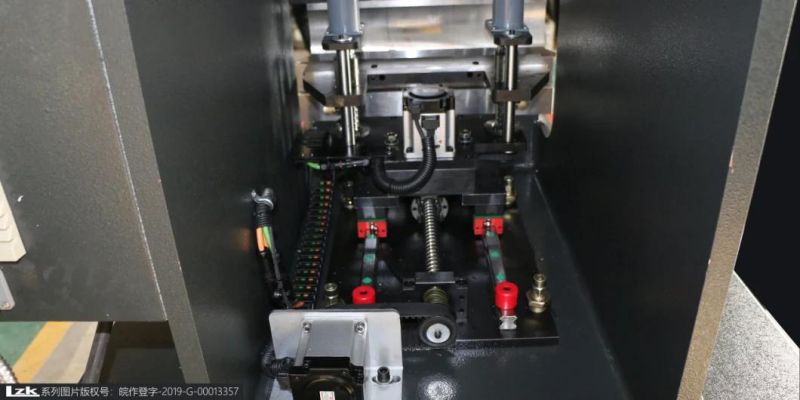

LZK |precision fast back gauge

Adopt high-precision 2-axis back gauge. Driven by servo motor, ball screw and linear guide to ensure high-precision operation. The beam height is adjusted by CNC.

EPB series Specs

Name	Model/Manufacture
CNC System	SYNTEC(10T-40T) LZ80T(65T-100T)
Y axes servo motor	SYNTEC SNAYO
Backgauge servo motor	SYNTEC Fuji,Japan
Compensation	Mechanical compensation(Standard equipment for models of 2,500 m m and above)
Electrics	France  Electrics
Pedal Switch	South Korea KACON
mold	Standard 202 Frame knife, Double V same core / single V lower mode
