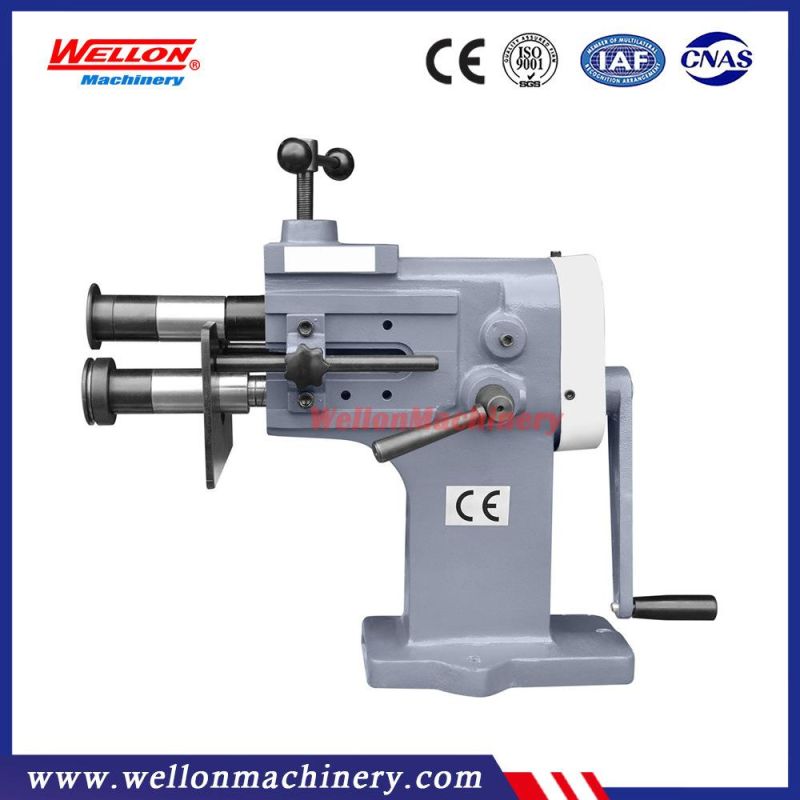

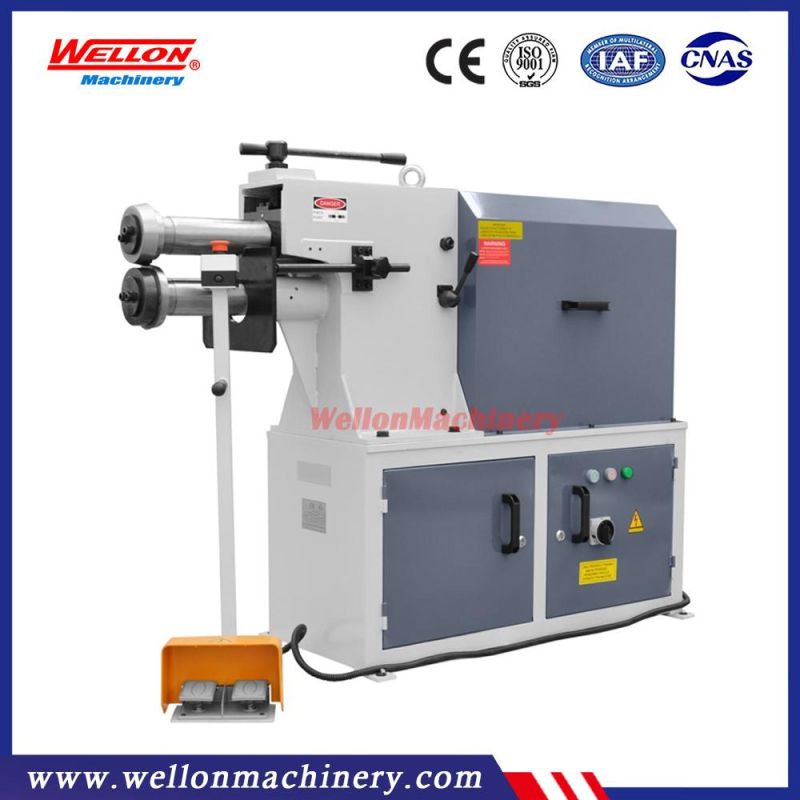

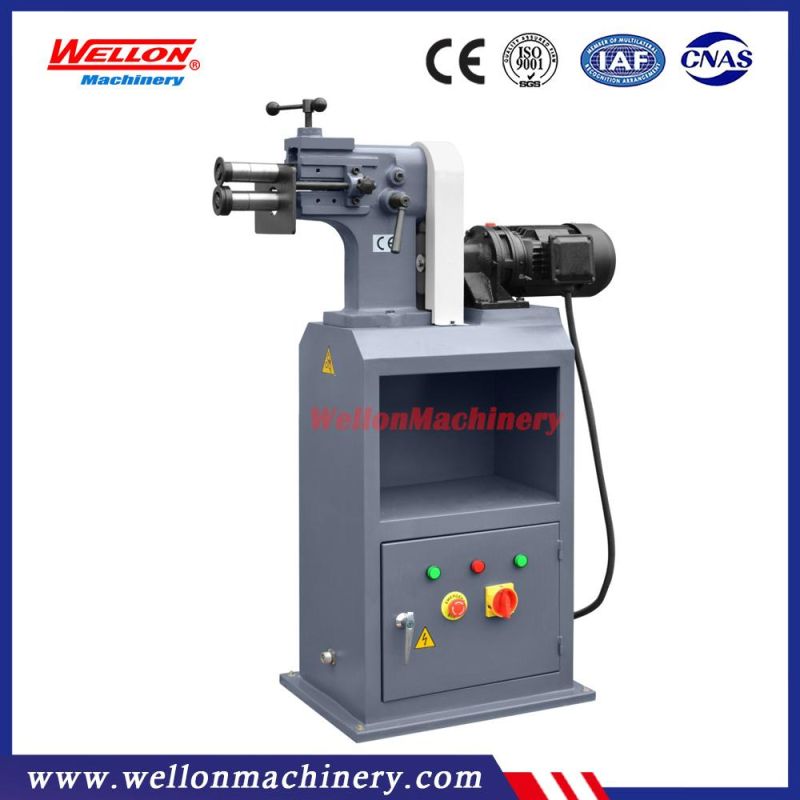

Electric Beading Machine (Beading Machine TB12 ETB12 ETB25 ETB40)
Tengzhou Wellon Machinery Co., Ltd.- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Hydraulic Bending Machine
- Capacity：1.2 2.5 4 mm
Base Info
- Model NO.：TB12 ETB12 ETB25 ETB40
- Throat Depth：200mm
- Cylinder Length：140mm
- Power：0.75kw
- Weight：200kg
- Transport Package：Wood Case
- Specification：CE ISO9001
- Trademark：WELLON
- Origin：China
- HS Code：84615090
- Production Capacity：200 PCS,Month
Description
Basic Info.
Model NO. TB12 ETB12 ETB25 ETB40 Throat Depth 200mm Cylinder Length 140mm Power 0.75kw Weight 200kg Transport Package Wood Case Specification CE ISO9001 Trademark WELLON Origin China HS Code 84615090 Production Capacity 200 PCS/MonthProduct Description
Products Description:
1. Heavy and solid cast iron construction;
2. Special steel adjustable bottom spindle;
3. Self-barking motor with subframe (E-type);
4. Easy to operate with foot pedal control (E-type);
5. Steel welded construction frame;
6. Adjustable idle roller;
7. Steel shaft with bronze bushings;
8. Reduction motor with brake system;
9. Movement of rollers with foot pedal;
10. Complete with stand;
11.4 sets standard rollers.
Technical Parameter:
| Model | ETB-12 | ETB25 | ETB40 | TB12 |
| Cylinder length | 140 | 140 | ||
| Sheet metal thickness max | 1.2mm | 2.5mm | 4mm | 1.2mm |
| Throat depth | 200mm | 280mm | 300mm | 200mm |
| Cylinder speed(rpm) | 32 rpm | 20RPM | 15.3RPM | |
| Power | 0.75kW | 1.5kW | 2.2kW | |
| Dimension(CM) | 100x45x135 | 147X58X132 | 155x51x118 | 63x25x50 |
