• Model NO.：LJZ2S-500X4200, LJZ2S-500X5000
• Function：Double Head Precision Cutting Saw Machine
• Color：Grey, Blue
• Max. Cutting Length：4200~6000mm
• Type：Window & Door Aluminium Profile
• Shape：Flat
• Grade：1000 Series
• Temper：T3-T8
• Window & Door Aluminium Profile：60 Series
• Alloy：Alloy
• Surface Finishing：Wood-Grain Transfer
• Alloying Ingredient：1024
• Polished Aluminum Profile：Chemical Polishing
• Transport Package：in Wooden Cases
• Specification：CE
• Trademark：CNSUNNY
• Origin：Shandong, China
• HS Code：84778
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. LJZ2S-500X4200/ LJZ2S-500X5000 Function Double Head Precision Cutting Saw Machine Color Grey, Blue Max. Cutting Length 4200~6000mm Type Window & Door Aluminium Profile Shape Flat Grade 1000 Series Temper T3-T8 Window & Door Aluminium Profile 60 Series Alloy Alloy Surface Finishing Wood-Grain Transfer Alloying Ingredient 1024 Polished Aluminum Profile Chemical Polishing Transport Package in Wooden Cases Specification CE Trademark CNSUNNY Origin Shandong, China HS Code 84778 Production Capacity 100 Sets Per Month

Product Description

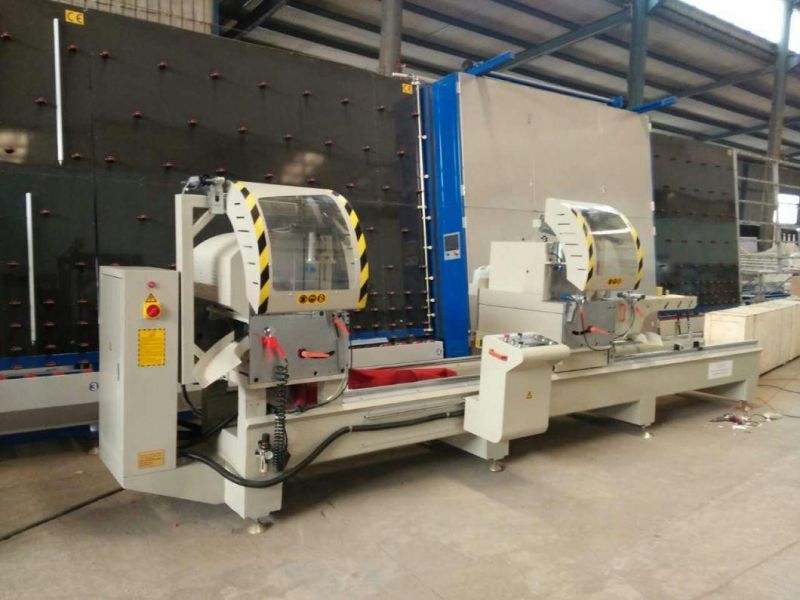

LJZ2S-500×4200 CNC Double Head Precision Cutting Saw for Aluminum Profile


Product Description
1. The machine adopts European model and looks neat and easy.
2. The control system adopts the full closed-loop system to guarantee the repeat positioning precision.
3. The imported motor is linked with the blade directly. The cutting adopts the leverage swing form.
4. The blade feeding adopts gas-liquid damping cylinder transmission, cutting stably.
5. The imported servo-motor drives the reducer to release the cutting at any angle within 45° ~157.5° .
6. The imported control system has the feature to optimize material cutting.
7. The different cutting sizes can be input at one time. Realizing the continuous cutting for different length.
8. The saw head is droved by the imported servo-motor driving the synchronous belt, fast movement.
9. The machine has the opening and closing shield to protect the safety.
10. The movable profile bracket makes the machine smart and to take few room.
11. There are two cylinders on each machine head to clamp the profile. This makes the cutting safe and reliable.
12. The machine can finish the extra short and extra length profile automatically.
13. The machine can link the bar code printer.

Technical Data:

1. Power supply	380V 50Hz
2. Cutting motor power	2×2.2 Kw; Rotary Speed  2800 r/min
3. Servomotor power	3×0.68Kw; Rotary Speed 4050r/min
4. Operation air pressure	0.5-0.8MPa
5. Air consumption	60L/min
6. Blade specification	500mm×30×4.4 Z= 120 (Standard size)
7. Cutter feeding speed	stepless speed regulation 0-3m/min
8. Cutter moving speed range	0~20m/min
9. Cutting length	max 6000mm min 360mm at 90°; Max 6000mm min 760mm at 45°
10. Cutting width	120mm
11. Cutting height	230mm
12. Cutting angle	45°-157.5° any angle in the range
13. Repeat locating length tolerance	±0.2mm
14. Cutting Profile Surface Plane	≤0.10mm
15. Cutting Angle tolerance	±5′
16. Cutting Profile Surface Roughness	Ra12.5µm
17. Contour dimension	7800mm×1500mm×2040mm
18. Weight	about 2500kg

Guarantee & Aftersales service
1. Guarantee the complete machine for one year, except the consumable parts.
2.24hour technical support by email or calling.
3. User-friendly English manual for machine using and maintaining.
