• Model NO.：SB-50CNCSRH
• Machine Type：Hydraulic Tube Bending Machine
• Certificates：Ce, ISO9001
• Color：Blue or Customized
• Eextra Function：1d Bending, Cutting
• Modle：Sb-50cncsrh
• Brand：Sanco
• Technology：Taiwan
• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Applied Material：Carbon Steel, Stainless Steel, Copper, Aluminum
• Transport Package：Wooden Case
• Specification：2800kgs
• Trademark：Sanco
• Origin：China
• HS Code：846221
• Production Capacity：5000sets,Year

Basic Info.

Model NO. SB-50CNCSRH Machine Type Hydraulic Tube Bending Machine Certificates Ce, ISO9001 Color Blue or Customized Eextra Function 1d Bending, Cutting Modle Sb-50cncsrh Brand Sanco Technology Taiwan Application Wheelbarrow, Wheelchair, Boiler, Automobile Applied Material Carbon Steel, Stainless Steel, Copper, Aluminum Transport Package Wooden Case Specification 2800kgs Trademark Sanco Origin China HS Code 846221 Production Capacity 5000sets/Year

Product Description

Manual Control Copper Pipe Bender


Technical Datas


No.	Item	Data
1	Max Pipe Bender Capacity	Φ50.8*2mm
2	Rang of Bending Radius	35-200 mm
3	Max Bend Angle	190 Deg
4	Max Length Over Mandrel	2800 mm
5	Working Height	1120 mm
6	Bending Speed	112 Deg/S
7	Bending Precision	+/-0.1 Deg
8	Feeding Speed	785 mm/S
9	Feeding Precision	+/-0.1 mm
10	Rotate Speed	375 Deg/S
11	Rotate Precision	+/-0.1 Deg
12	Total Power	13.15 Kw
13	Machine Size	4700x1000x1500 mm
14	Machine Weight	2800 Kg



Applications:
Exhaust pipe of car, motorcycle, airplane and other machinery.
Tubes of air conditioning, furnitures, bikes, light pole, sports facilities
Kitchen and bathing facilities, medical equipments.
Applied material: carbon steel, stainless steel, aluminum, copper, alloy

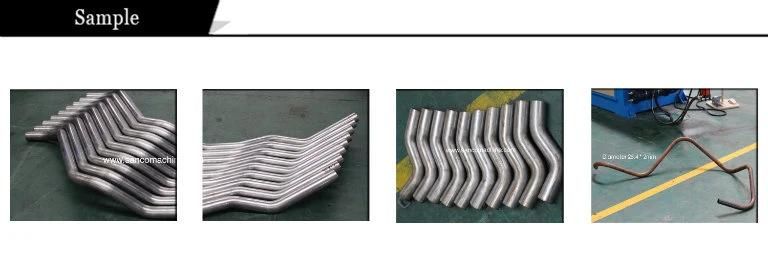

Applied products: round tube & bar, square tube & bar, rectangle tube & bar, virous profile
