• Model NO.：GQ
• Transport Package：Wooden Box
• Specification：130*40*75cm
• Trademark：Bafang
• Origin：Shandong, China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. GQ Transport Package Wooden Box Specification 130*40*75cm Trademark Bafang Origin Shandong, China Production Capacity 1000 Sets/ Month

Product Description

High speed Steel Bar Shearing MachineGQ40 series rebar cutter automatic steel bar cutting machine is mainly used for cutting carbon steel, cold and hot round steel, screw thread steel, deformed steel, flat steel , angle steel and square steel.
Features:
1.Adopts gears, shafts, connection rod and blades made of high-quality alloyed steel with required heat treatment(quenching/tempering/high frequency)and 12mm thick external case to ensure reliable performances also under heavy loads and long working life.
2.Connection rod has high hardness degree on attaching part with the blade, its internal side is made of tin-bronze to avoid abrasions while touching the crankshaft.
3.Thick and durable blades to ensure accurate cutting with all kinds of steel bar(square blade or shape blade operation)
Technical specifications

Model	GQ40	GQ40A
Max. cutting diameter	40mm	40mm
Motor power	2.2/3kw	3kw
Working voltage	380v	380v
Rotate speed	2870	2870
Straight cut off times	32r/min	32r/min
Dimension	1190*450*680mm	1300*400*750mm
Weight	290	350

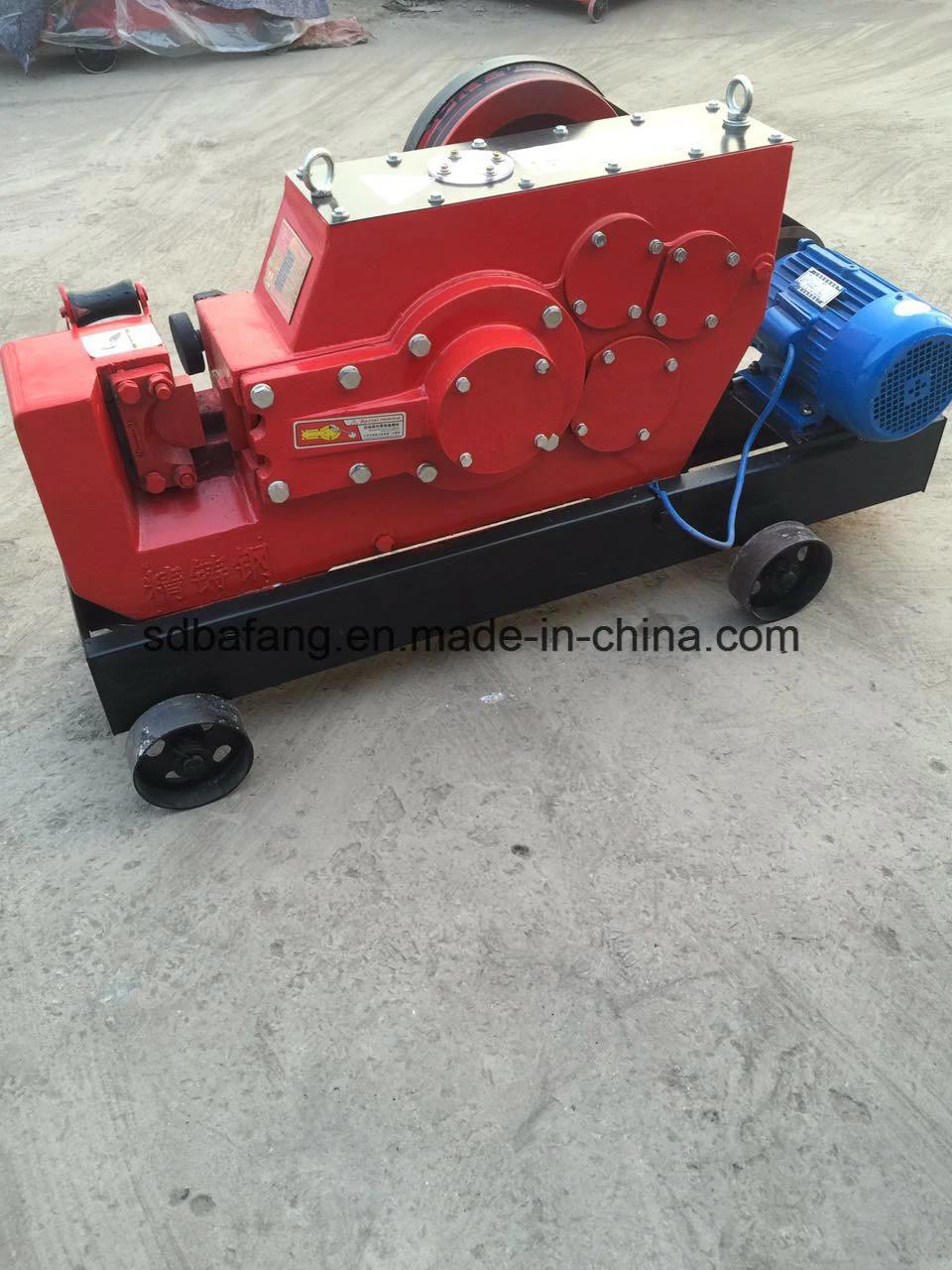

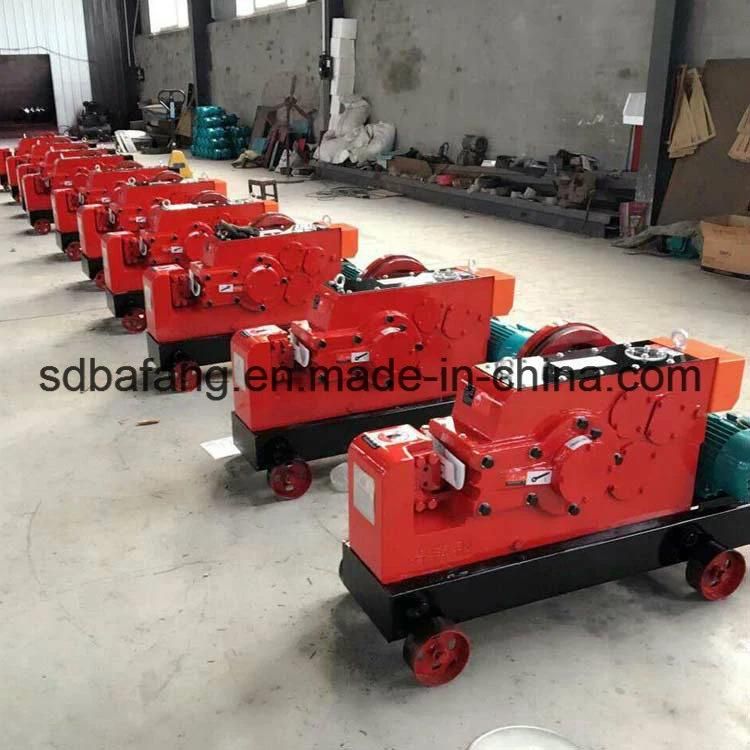

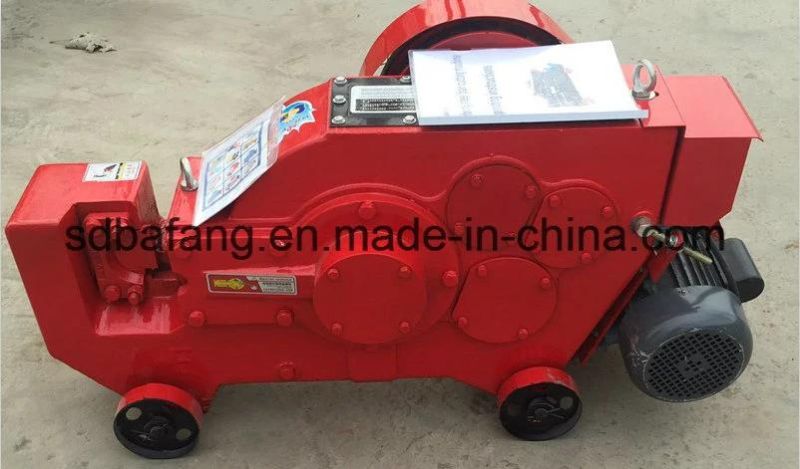

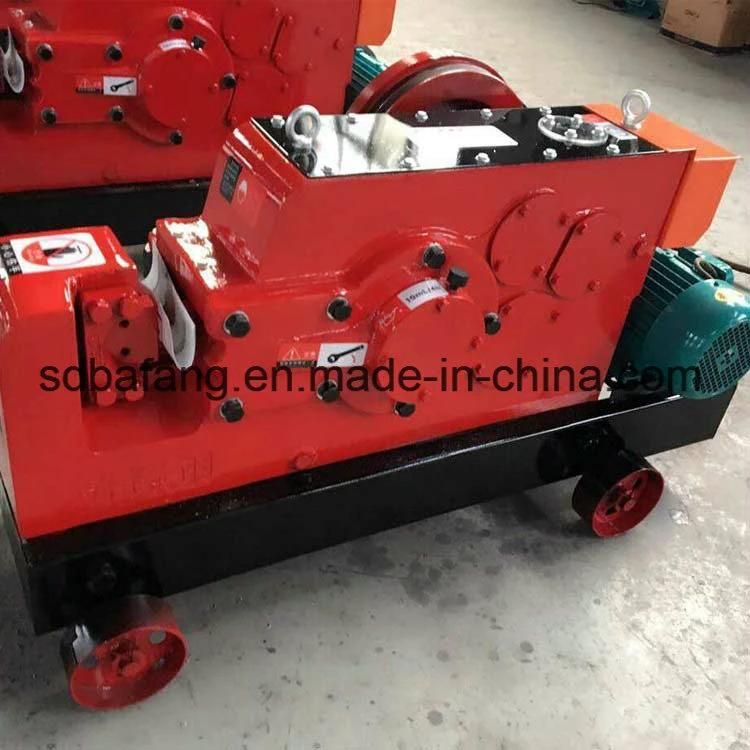

Product show




Company information

For more detailed specifications please feel free to contact with us

Jining Bafang Mining Machinery Group Co.,Ltd

Name:Mavis Zhang

Telephone:86-537-2228876    +86-13012657265

Web:sdbafang.en.made-in-china.com
