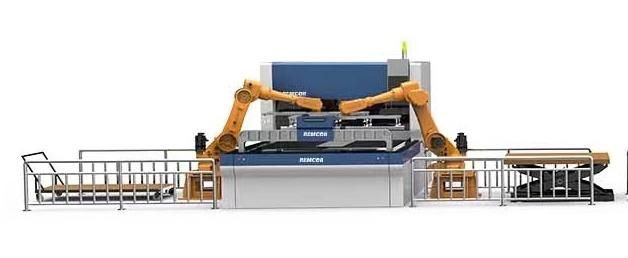

Pivatic Punching & Shearing & Bending Machine for Coil Sheet

Wuhan Remcor Technology Co., Ltd.
  • Automation：Automatic
  • Certification：CE, ISO 9001:2000, ISO 9001:2008

Base Info

  • Model NO.：RC1250&1000&700
  • Condition：New
  • Warranty：2 Years
  • Transport Package：Wooden Packing
  • Trademark：remcor
  • Origin：China
  • HS Code：84624900
  • Production Capacity：1000sets,Year

Description


Pivatic Punching & Shearing & Bending Machine for Coil SheetFloor RequirementsBending machine: Length* Width*Height: 5250*3760*2950mm, Robot Working Diameters: 2550mmWorking processLoading robot- Bending- Unloading robot- Finished products Machine Working height900±50mmApplied materialQ235, Stainless Steel roller etc. flexible materialSheet thickness0.5-1.2mmElectric CapabilityAround 60KVA(380V,50HZ)Air requiremnet0.5-0.6MpaProduct rangeBe in accordance with the drawing agreed by both partiesManufacturing precisionManufacturing precision: tolerance where not marked is in accordance with GB1804-M
N2200 Bending machine  parameters(Remark:Parameters can be customized )
Bending range400-2200mm
Width Range300-1000mm
Bending height150mm
Four sides minimum size 300X400mm
Fastest continuous bending speed 0.5s
Upper/under knife distance150mm
Rotary max. diagonal line2350mm
Bending angle0-180°
Bending force500KN
CNC SystemSYNTEC
Operating softwareSelf-Developed & free upgrade
NC Axis10 Axis

N2200 Main Parts brands
Pneumatic parts and cylindersAIRTAC or SMC
Vacuum Panel SMC
Guider and lead screwHIWIN
BearingsNSK
ReducerDOMESITC
Editable programsyntec
Invertorsyntec
Electric componentssnd
Relaysnd
SensorPanasonic
AC contactorsnd
Servosyntec
