Pivatic Type Punching & Shearing & Bending Combination Lines

Wuhan Remcor Technology Co., Ltd.
  • Automation：Automatic
  • Certification：CE

Base Info

  • Model NO.：RC1250&1000&700
  • Condition：New
  • Warranty：2 Years
  • Transport Package：Wooden Packing
  • Trademark：remcor
  • Origin：China
  • HS Code：84624900
  • Production Capacity：1000sets,Year

Description

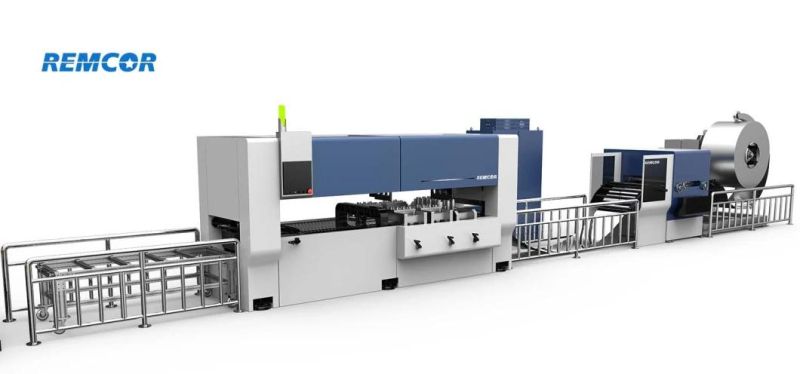

Pivatic Type Punching & Shearing & Bending Combination LinesProduction line
Floor RequirementsRC1250&1000&700 Punching&shearing machine
Length* Width*Height:Approximately 14000*2300*2000mmWorking processManual loading - Automatic uncoiling - Levelling - punching & shearing - Automaticstacking
Feeding length&type1000mm precision ball screw
Mold2 sets Standard Thick Turret Insert Box Mode;
4 sets REMCOR standard moldPunching frequency200cp/minMold change trolley2Number of servo axes8+1+2Punching powerServoRack leveling2 in 1Material width300-1000mmfeed roller2 teamsCorrection rollerup 5/down 4Outlet speed16m/mincoil weight9TCoil inner holeφ508mmCoil outer holeφ1300mmShelf expansionHydraulicThickest sheet2mmengineering300KNFeeding methodroller feedingMaximum punch90*180mmNumber of modules8 B stations and 4 D stations, or 4 large squares or 8 small squaresPunching accuracy±0.1mmDiagonal accuracy±0.5mm
Pivatic Type Punching & Shearing & Bending Combination LinesFloor RequirementsBending machine: Length* Width*Height: 5250*3760*2950mm, Robot Working Diameters: 2550mmWorking processLoading robot- Bending- Unloading robot- Finished products Machine Working height900±50mmApplied materialQ235, Stainless Steel roller etc. flexible materialSheet thickness0.5-1.2mmElectric CapabilityAround 60KVA(380V,50HZ)Air requiremnet0.5-0.6MpaProduct rangeBe in accordance with the drawing agreed by both partiesManufacturing precisionManufacturing precision: tolerance where not marked is in accordance with GB1804-M
N2200 Bending machine  parameters(Remark:Parameters can be customized )
Bending range400-2200mm
Width Range300-1000mm
Bending height150mm
Four sides minimum size 300X400mm
Fastest continuous bending speed 0.5s
Upper/under knife distance150mm
Rotary max. diagonal line2350mm
Bending angle0-180°
Bending force500KN
CNC SystemSYNTEC
Operating softwareSelf-Developed & free upgrade
NC Axis10 Axis

N2200 Main Parts brands
Pneumatic parts and cylindersAIRTAC or SMC
Vacuum Panel SMC
Guider and lead screwHIWIN
BearingsNSK
ReducerDOMESITC
Editable programsyntec
Invertorsyntec
Electric componentssnd
Relaysnd
SensorPanasonic
AC contactorsnd
Servosyntec

Pivatic Type Punching & Shearing & Bending Combination LinesPivatic Type Punching & Shearing & Bending Combination LinesPivatic Type Punching & Shearing & Bending Combination Lines
