Twin Head Ring Cutting Machine, Circular Cutting Machine
Nantong Woke Machinery Equipment Co., Ltd.- After-sales Service:Long Life
- Waterproof Rating:IPX-3
- Warranty:1-year
- Certification:ISO 9001:2008
- Condition:New
- Control:PLC
Base Info
- Model NO.:WKN-2000x1.2
- Application:Metal
- Power Source:Pneumatic
- Layout:Horizontal
- Transport Package:Wooden Box
- Specification:2600x800x1300mm
- Trademark:WOKE
- Origin:China
- HS Code:8462399000
- Production Capacity:40PCS,Month
Description
Basic Info.
Model NO. WKN-2000x1.2 Application Metal Power Source Pneumatic Layout Horizontal Transport Package Wooden Box Specification 2600x800x1300mm Trademark WOKE Origin China HS Code 8462399000 Production Capacity 40PCS/MonthProduct Description

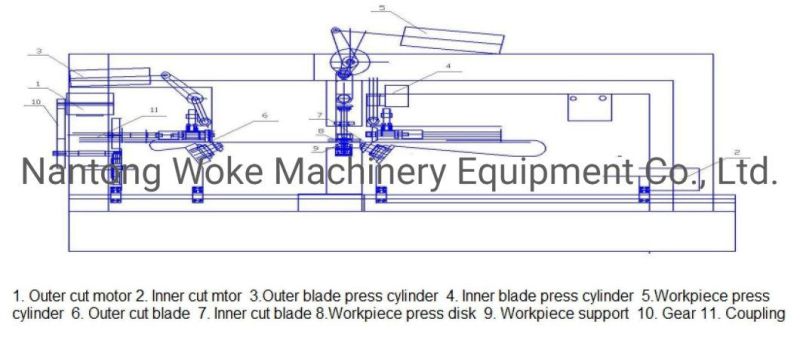

TWIN HEAD RING CUTTING MACHINEMACHINE STRUCTURE
This machine consists of a steel main frame and machined parts, motors , linear guides, air cylinders, PLC, display screens , power distribution cabinets and foot switches It is composed of various mechanical accessories. (The PLC and display screen mainly solve the problem of adjusting the time when cutting rings of different diameters, so as to ensure the synchronous cutting of the rings.)
MACHINE SPECIFICATION
No. | Name | Unit | WKN-1.2x2000 |
1 | Cutting diameter | mm | Inner dia. 500-610mm Outer dia. 700-2000mm |
2 | Max.Cutting thickness | mm | 0.8-1.2 |
3 | Cutting speed | m/min | 50 |
4 | Motor | kw | 3 |
5 | Power supply | Customized | |
6 | Length x Width x Height | mm | 5000x1000x2000 |
7 | Net weight | kgs | 2000 |
ADVANTAGES
When cutting the circular ring, the inner and outer circles are cut at the same time, which greatly improves the cutting efficiency and guarantees the product quality. The machine structure is reasonable, and the gantry beam solves the material pressing problem and avoids the complicated, bloated and space-occupying disadvantages of the triangular structure. The cutter is sharp and durable, the cutting speed is fast, and the material is loaded at 60 meters per minute.

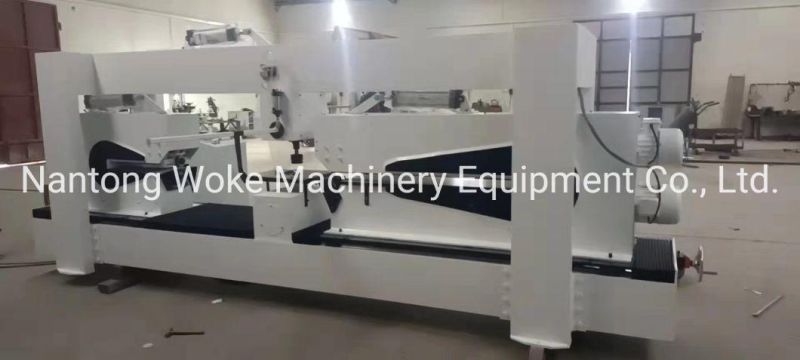

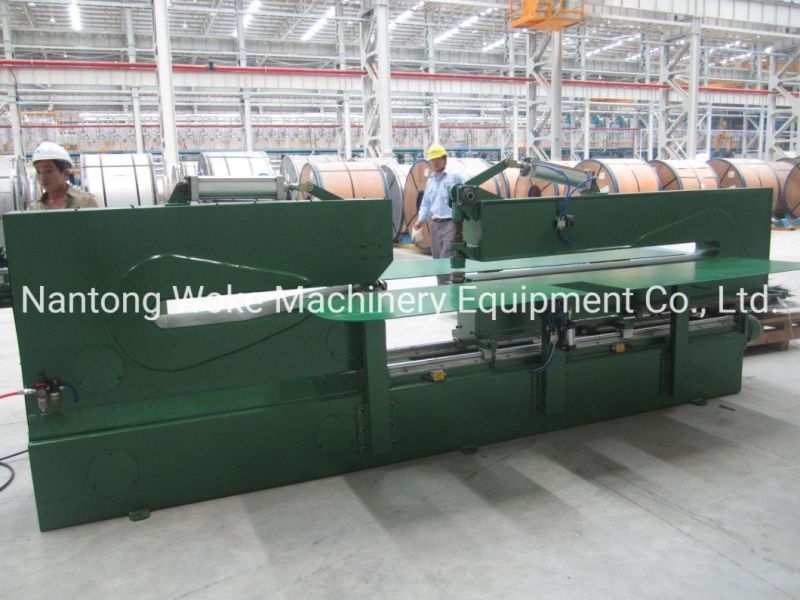

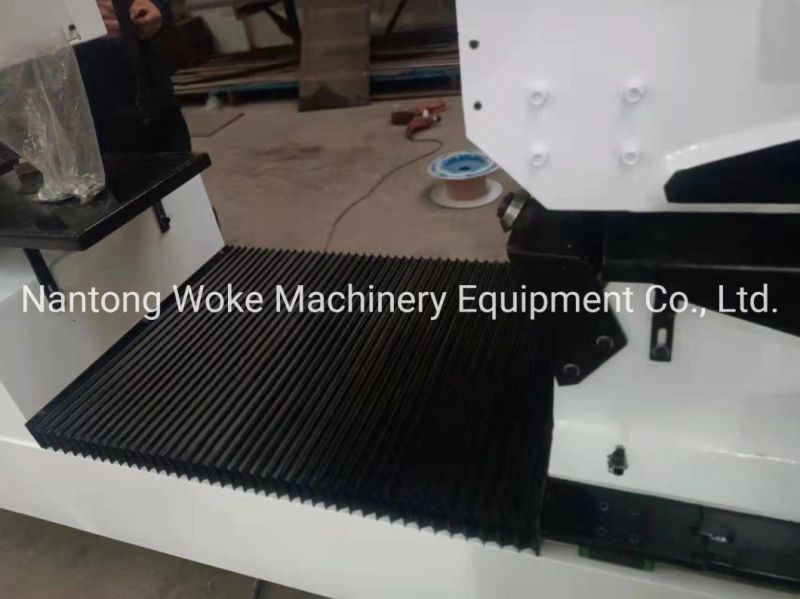

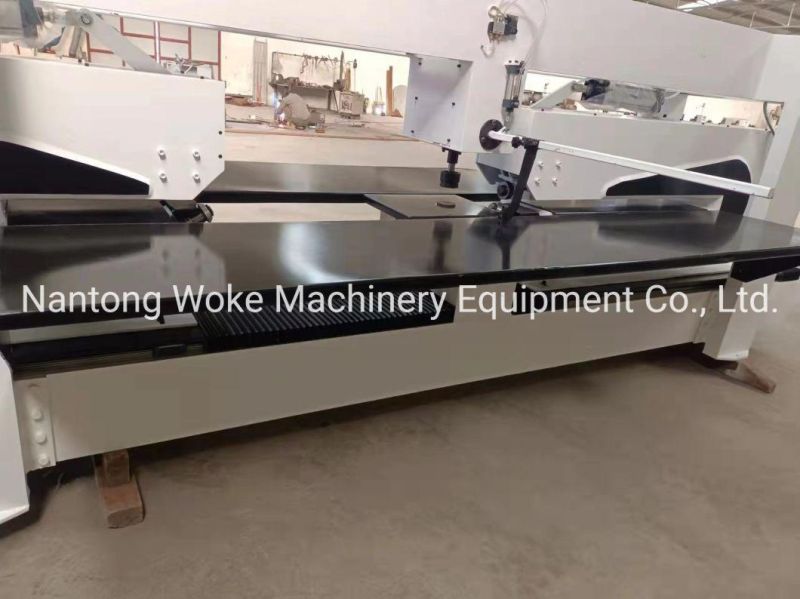

DETAILED IMAGES

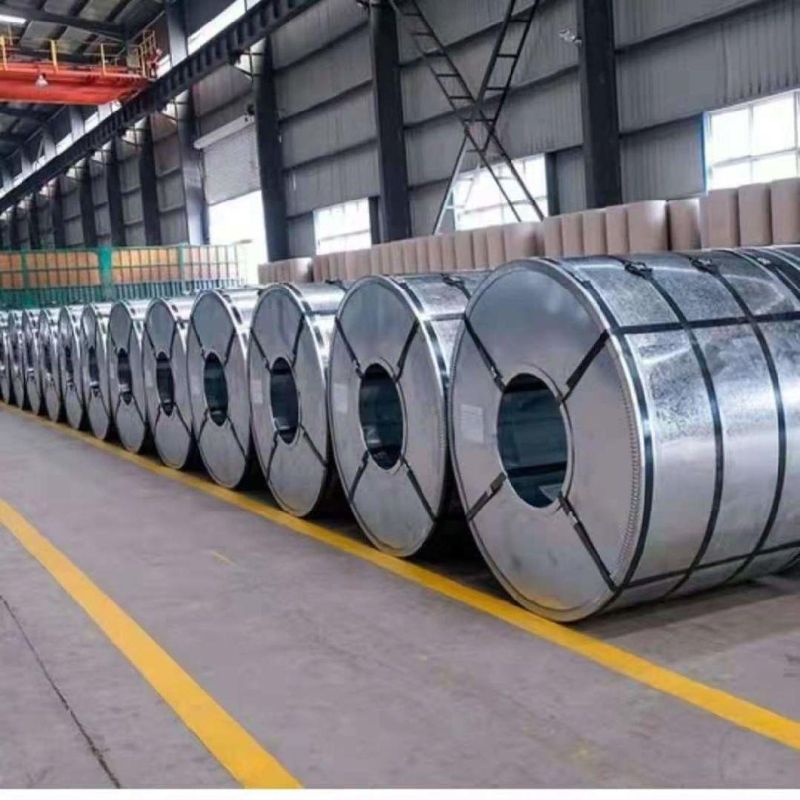

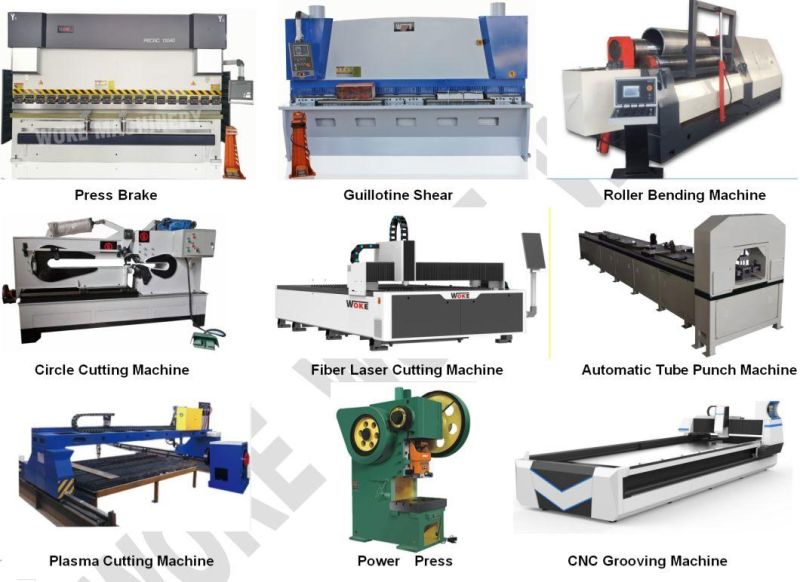

APPLICATION INDUSTRY & OTHER RELEVANT EQUIPMENTS
