• Model NO.：PBB 1020,2.5 PBB 1270,2.0 PBB 1520,1.5
• Machine：Manual Folding Machine
• Price：Good
• Transport Package：Fumigated Exporting Standard Wooden Case
• Specification：CE, SGS, ISO9001: 2000
• Trademark：WMT or customized logo
• Origin：Chizhou, Anhui, China
• HS Code：8462299000
• Production Capacity：200 Sets Monthly

Basic Info.

Model NO. PBB 1020/2.5 PBB 1270/2.0 PBB 1520/1.5 Machine Manual Folding Machine Price Good Transport Package Fumigated Exporting Standard Wooden Case Specification CE, SGS, ISO9001: 2000 Trademark WMT or customized logo Origin Chizhou, Anhui, China HS Code 8462299000 Production Capacity 200 Sets Monthly

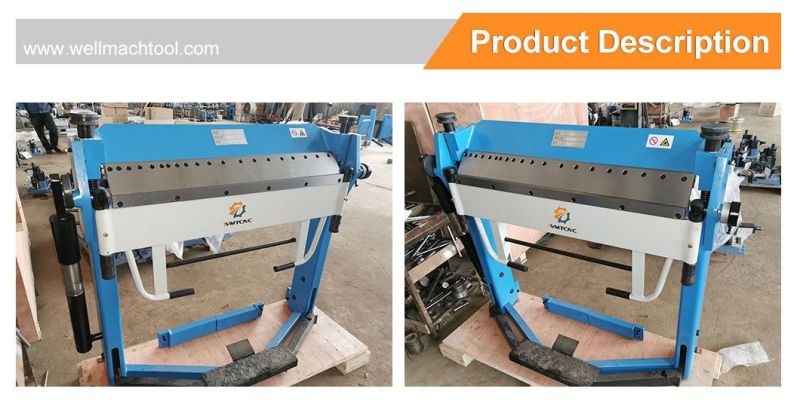

Product Description

Features:

-Foot control.

-A fully welded structure, a compact high quality engineering, ensure minimum maintenance, together with simple and safe operation.

-They have the function of air spring which can be installed inside the arm(optional).

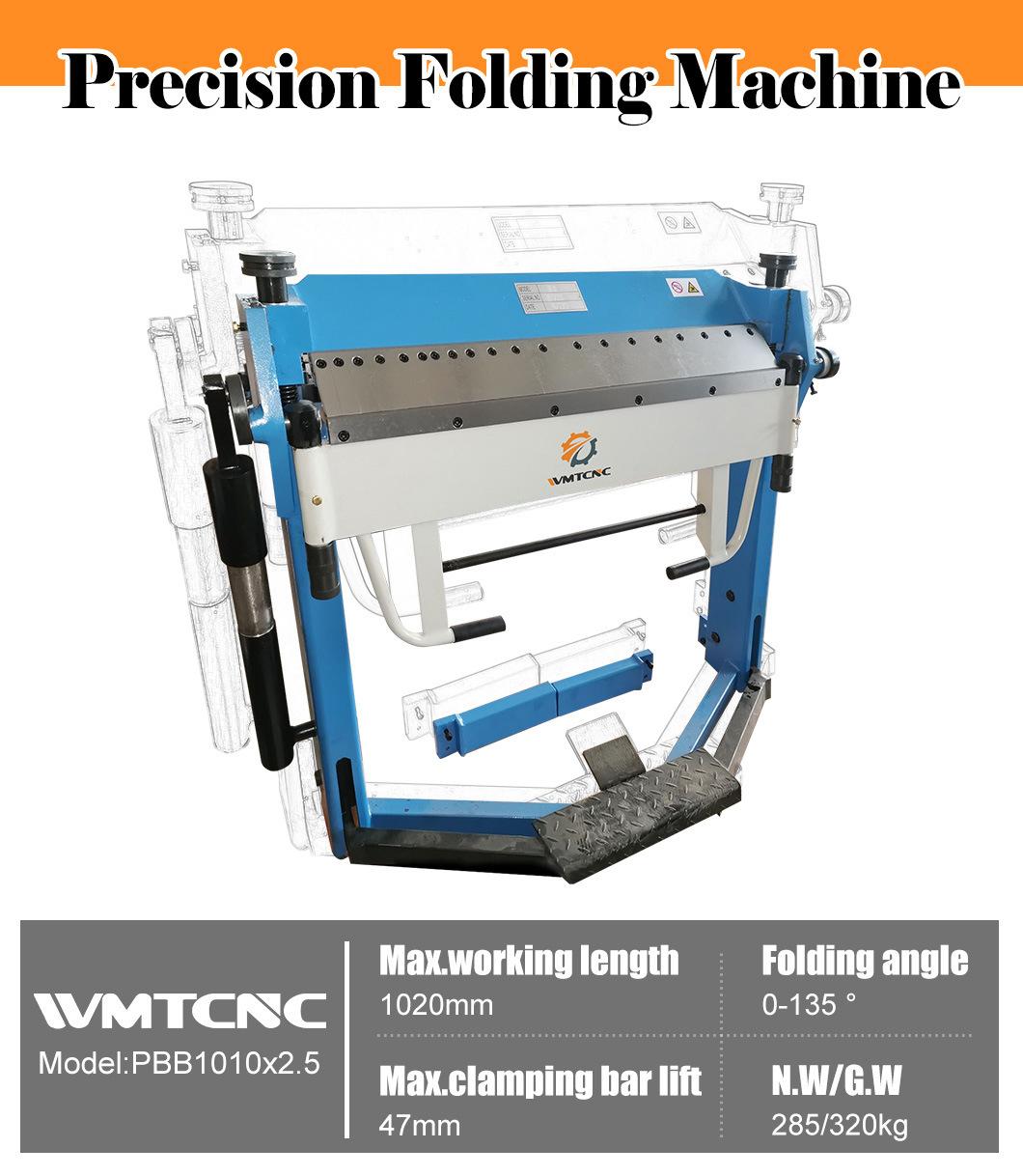

Main specification

Specifiction	ZF40(PBB 1020/2.5)	ZF50(PBB 1270/2.0)	ZF60(PBB 1520/1.5)	ZF80(PBB 2020/1.2)	ZF100(PBB 2520/1.0)
Max.working length	1020mm	1270mm	1520mm	2020	2520
Max.sheet thickness	2.5mm	2.0mm	1.5mm	1.2mm	1.0mm
Max.clamping bar lift	47mm	47mm	47mm	47mm	47mm
Folding angle	0-135 °	0-135 °	0-135 °	0-135 °	0-135 °
Packing size	1420*560*1280mm	1650*620*1280mm	1960*710*1300mm	2470*940*1320mm	2970*940*1320mm
NW/GW	285/320kg	320/360	385/456	490/640kh	590/770kg

Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

Machine Details
