• Model NO.：W11-6x3200
• Type：Roller-Bending Machine
• Driver：Motor+ Gear
• Application：Machinery & Hardware, Textiles, Chemical
• Type for Cutting Machine：Roling Machine
• Type for Fold-bending Machine：Mechanical Rolling Machine
• Transport Package：Steel Plate
• Specification：ISO 9001: 2000
• Trademark：HAVEN
• Origin：China
• HS Code：84622990
• Production Capacity：100 Units, Month

Basic Info.

Model NO. W11-6x3200 Type Roller-Bending Machine Driver Motor+ Gear Application Machinery & Hardware, Textiles, Chemical Type for Cutting Machine Roling Machine Type for Fold-bending Machine Mechanical Rolling Machine Transport Package Steel Plate Specification ISO 9001: 2000 Trademark HAVEN Origin China HS Code 84622990 Production Capacity 100 Units/ Month

Product Description

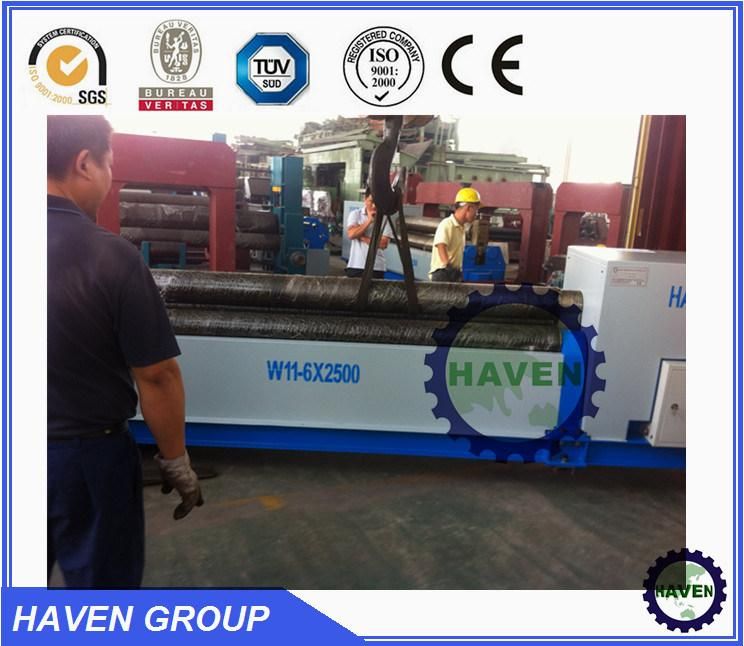

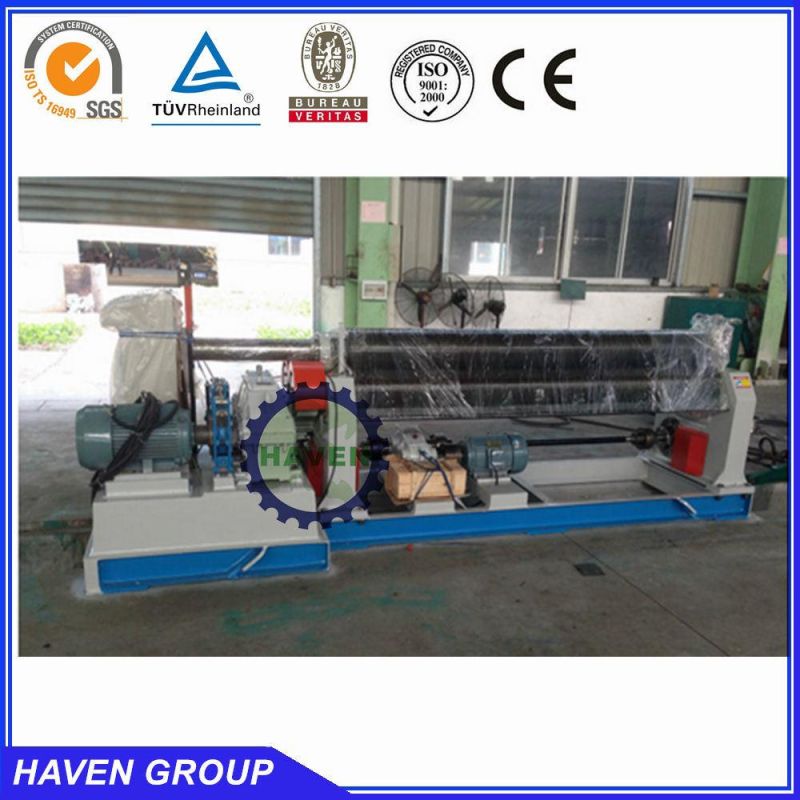

W11-6X3200 Mechanical Type Rolling and Bending Machine






1.Main functions:
The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the nut, the worm and the lead screw, the two lower rollers rotates and provides the plate materials with torque through the engagement of the output gear of the moderator with the ear of the lower rollers, the disadvantage of the machine is that the ends of the plate materials need to have the help from other equipment for pre-bending.

Model	Max. thickness	Max. width	Bending speed	Workpiece Min. Dia.	Top roller Dia	Bottom roller Dia.	Dis. bottom rollers	Main motor
W11-4*3000	4mm	3000mm	5m/min	450mm	140mm	160mm	220mm	5.5kw
W11-6*2000	6mm	2000mm	5m/min	430mm	170mm	170mm	220mm	5.5kw
W11-6*2550	6mm	2550mm	4m/min	550mm	220mm	170mm	250mm	7.5kw
W11-6*3000	6mm	3000mm	4m/min	600mm	240mm	190mm	280mm	7.5kw
W11-8*2000	8mm	2000mm	5m/min	480mm	190mm	170mm	220mm	5.5kw
W11-8*2500	8mm	2500mm	4m/min	600mm	240mm	180mm	280mm	7.5kw
W11-8*3000	8mm	3000mm	4m/min	600mm	240mm	180mm	280mm	11kw
W11-10*2000	10mm	2000mm	4m/min	550mm	220mm	170mm	250mm	7.5kw
W11-10*3200	10mm	3200mm	4m/min	650mm	260mm	220mm	340mm	11kw
W11-12*2000	12mm	2000mm	4m/min	600mm	240mm	180mm	280mm	7.5kw
W11-12*2500	12mm	2500mm	4m/min	650mm	260mm	220mm	320mm	11kw
W11-12*3000	12mm	3000mm	4m/min	700mm	280mm	240mm	360mm	15kw
W11-16*1500	16mm	1500mm	5m/min	600mm	240mm	180mm	280mm	7.5kw
W11-16*2000	16mm	2000mm	4m/min	650mm	260mm	220mm	320mm	11kw
W11-16*2500	16mm	2500mm	4m/min	700mm	280mm	240mm	360mm	15kw
W11-16*3200	16mm	3200mm	4m/min	850mm	340mm	280mm	440mm	18.5kw
W11-20*2000	20mm	2000mm	4m/min	700mm	280mm	240mm	360mm	11kw
W11-20*2500	20mm	2500mm	4m/min	850mm	340mm	280mm	440mm	18.5kw
W11-20*3000	20mm	3000mm	4m/min	930mm	370mm	280mm	440mm	22kw
W11-25*2000	25mm	2000mm	4m/min	850mm	340mm	280mm	440mm	18.5kw
W11-25*2500	25mm	2500mm	4m/min	930mm	370mmm	280mm	480mm	22kw
W11-30*2000	30mm	2000mm	4m/min	930mm	370mm	280mm	480mm	22kw

2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement

3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
