Hydraulic Alligator Cutting Machine
Shaanxi HAVEN Equipment Co., Ltd.- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Semi-Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Max press force：1200KN
- Blade Length：600mm
Base Info
- Model NO.：Q43-120
- Motor power：15kw
- Transport Package：Plastic Covering
- Specification：Q43-120
- Trademark：HAVEN
- Origin：China
- HS Code：8462
- Production Capacity：200units,Year
Description
Basic Info.
Model NO. Q43-120 Motor power 15kw Transport Package Plastic Covering Specification Q43-120 Trademark HAVEN Origin China HS Code 8462 Production Capacity 200units/YearProduct Description

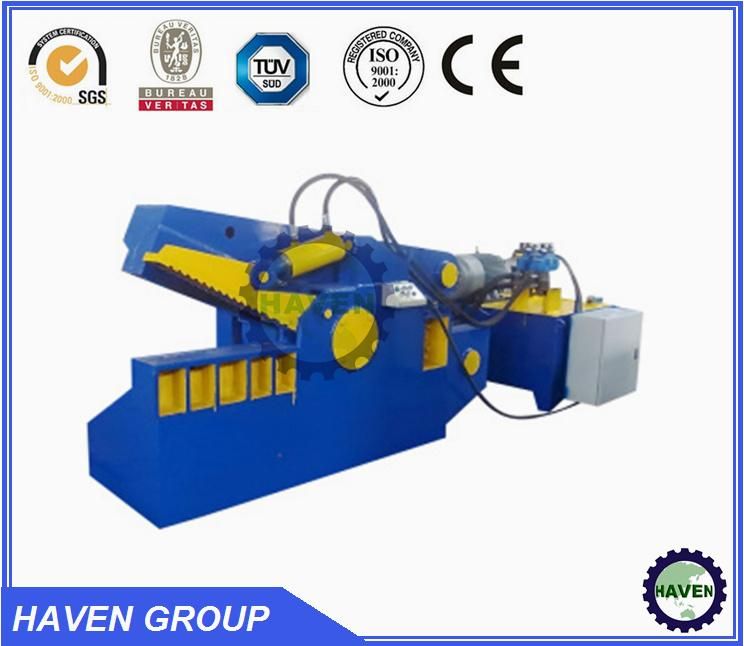

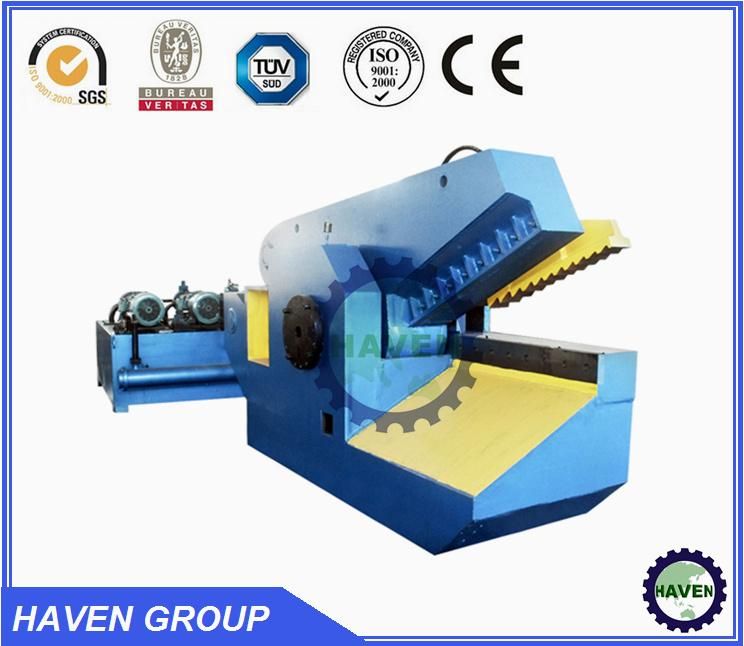

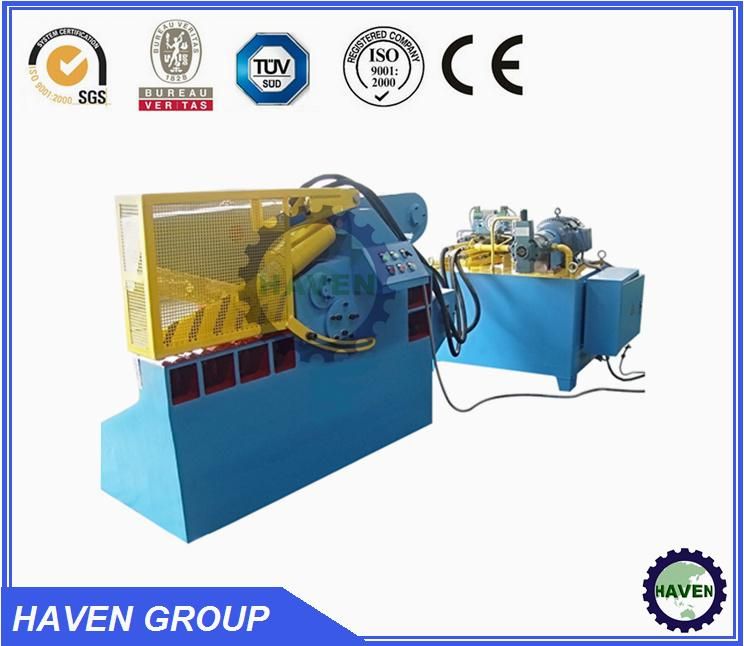

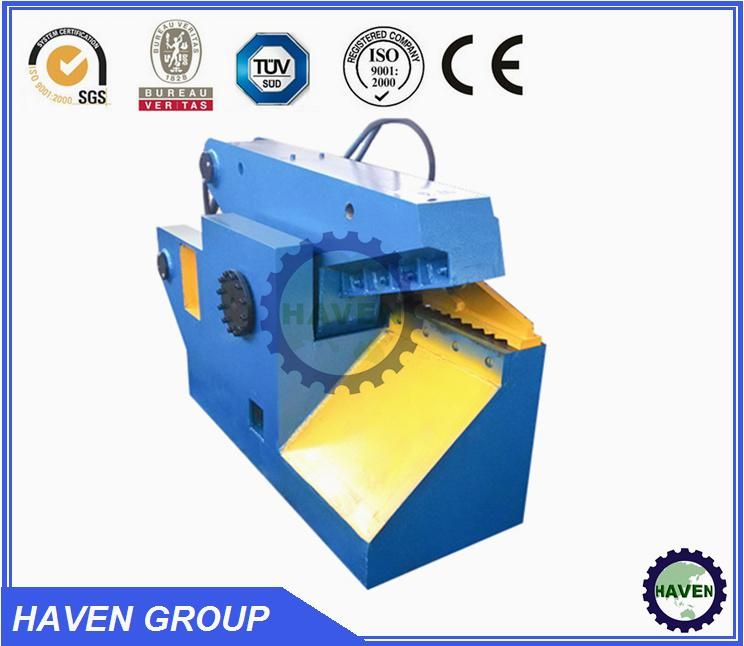

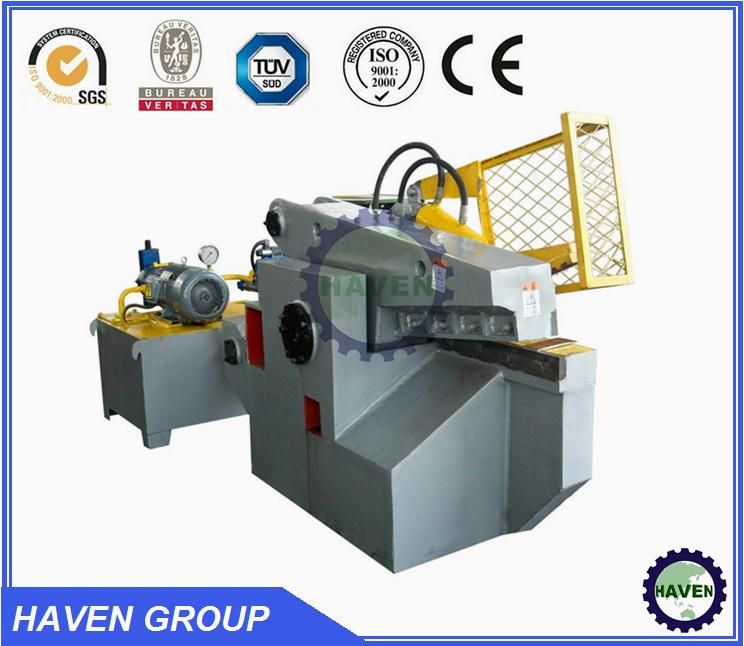

Q43-120 Hydraulic Alligator Cutting Machine
Main Features:
With hydraulic drive, convenient operation, simple maintenance.
Working blade length: 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, shear stress from 63 to 400 tons a total of eight grades. 700mm above the shear blade, particularly suitable for cutting scrap cars
Install screws no foot, no power of place can be powered by diesel engines.
Main specification:
| Model | Largest shear force (ton) | Max press force (ton) | Max blade Opening (mm) | Blade Length (mm) | Shearing Frequency (time/min) | Materiai Size (mm) | Matar power |
| Q43-63 | 630 | 120 | 180 | 400 | 8~10 | 30×30x35 | 7.5 |
| Q43-100 | 1000 | 160 | 280 | 600 | 8~10 | 40×40x35 | 7.5(11) |
| Q43-120 | 1200 | 200 | 280 | 600 | 8~10 | 50×50x55 | 15 |
| Q43-130 | 1300 | 200 | 320 | 700 | 8~10 | 50×50x55 | 15 |
| Q43-160 | 1600 | 250 | 320 | 700 | 8~10 | 55×55x63 | 18.5 |
| Q43-200 | 2000 | 300 | 380 | 800 | 8~10 | 70×70x75 | 22 |
| Q43-250 | 2500 | 380 | 480 | 1000 | 8~10 | 70×80x85 | 30 |
| Q43-315 | 3150 | 380 | 650 | 1200 | 8~10 | 90×90x95 | 37 |
| Q43-400 | 4000 | 420 | 750 | 1500 | 8~10 | 100×100x110 | 44 |
| Q43-500 | 5000 | 420 | 850 | 1800 | 8~10 | 110×110x120 | 44 |
| Q43-630 | 6300 | 4200 | 250 | 1800 | 8~10 | 120×120x130 | 37+15 |
