Cutting & Fold-bend Machine

Use Sheet Metal Bending Machine 200t4000

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Waterproof Rating:IPX-8
  • Warranty:2-year
  • Condition:New
  • Certification:ISO 9001:2000, ISO 9001:2008, CE
  • Automation:Automatic
  • Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Carbon Steel, Mild Steel

Base Info

  • Model NO.:HPB 200T4000
  • Type:Press Brake
  • CNC Controller:Delem Da58t
  • Weight:13ton
  • Crowning:Mechanical Crowning
  • Axes:X, Y1, Y2, R and V Crowning
  • Pump:Sunny
  • Back Gauge:Ball Screw and Linear Guide Rail
  • Grating Ruler:Italy Givi
  • Electrics:Schneider
  • Clamping:Quick Clamp
  • Valve:Bosch-Rexroth
  • Main Motor:Servo Motor
  • Max Bending Length:4000mm
  • Max Bending Thickness:10mm for 4m Sheet
  • Transport Package:FCL or LCL, Covered with Plastic Film
  • Specification:4600X1950X3010mm
  • Trademark:LZK
  • Origin:Maanshan, China
  • HS Code:8462219000
  • Production Capacity:100 Sets,Month

Description

The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.

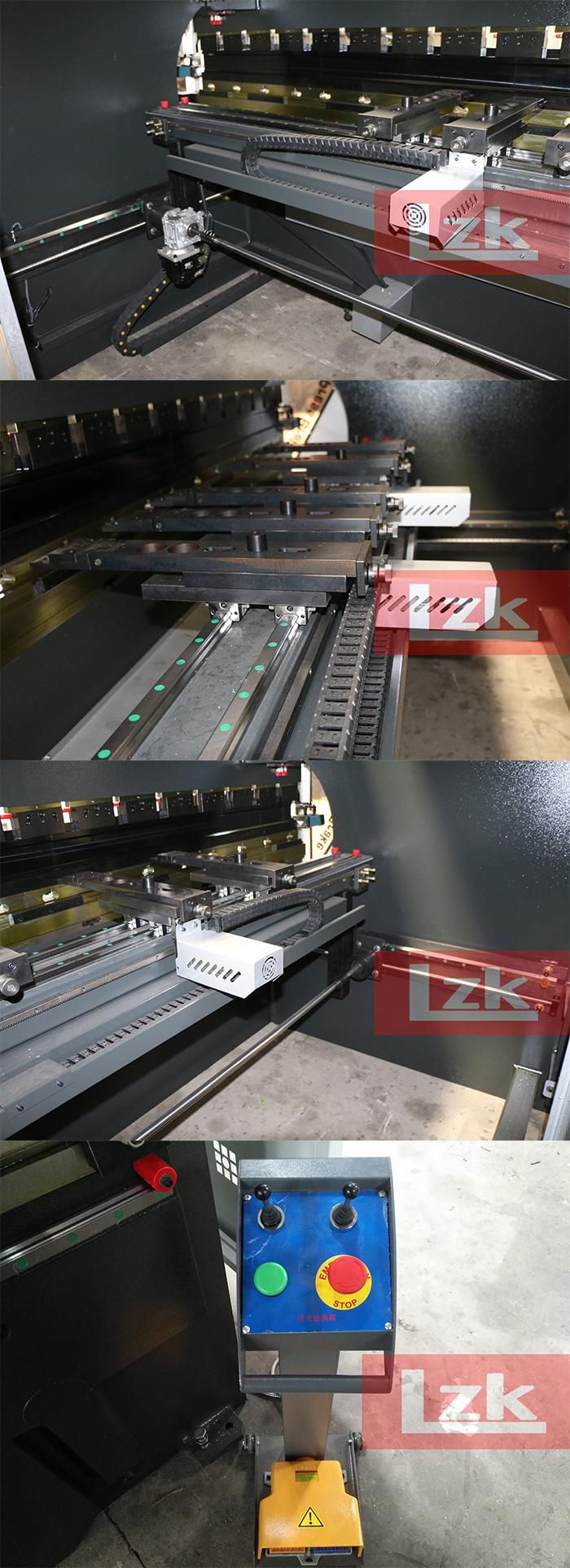

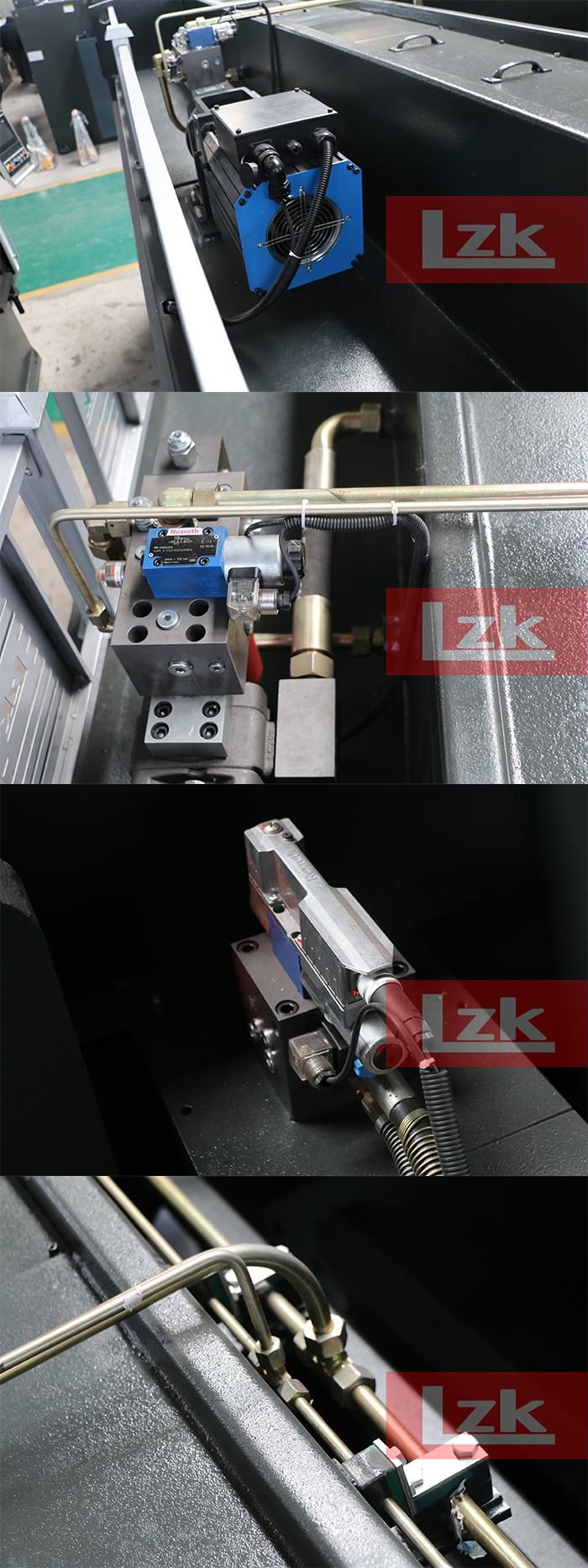

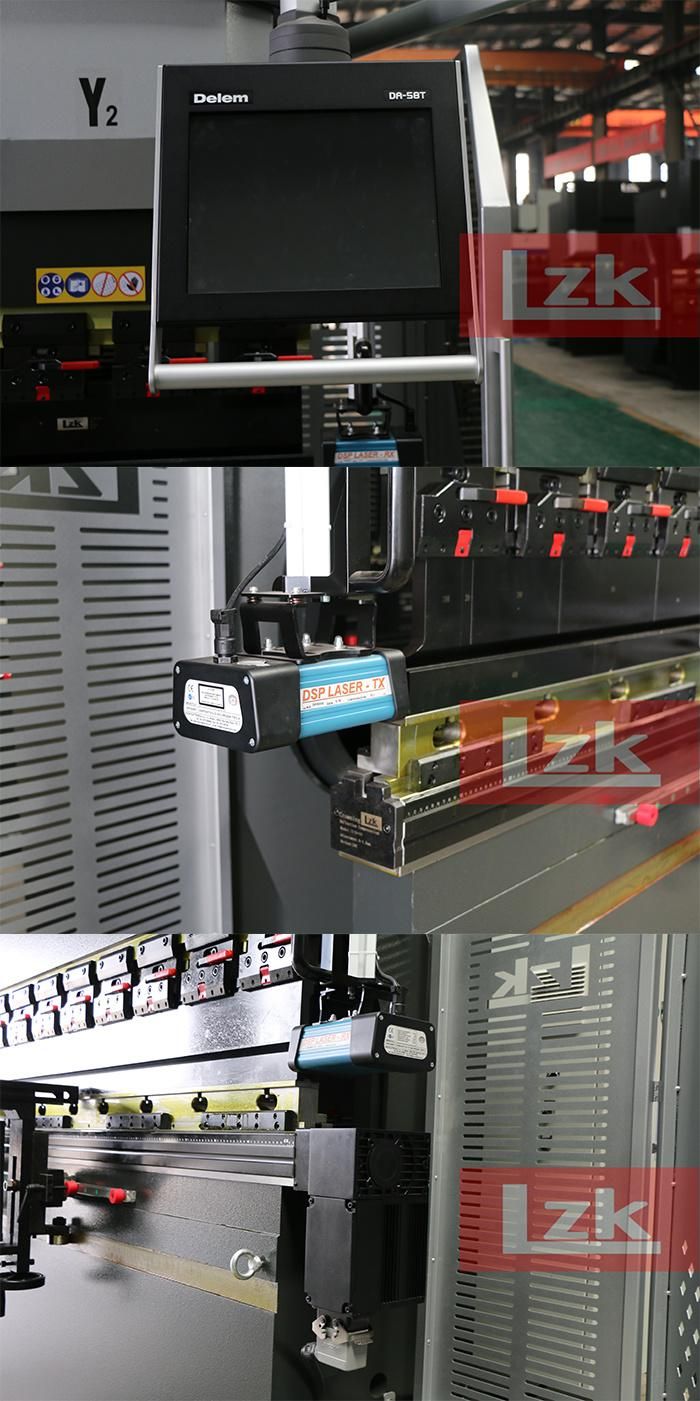

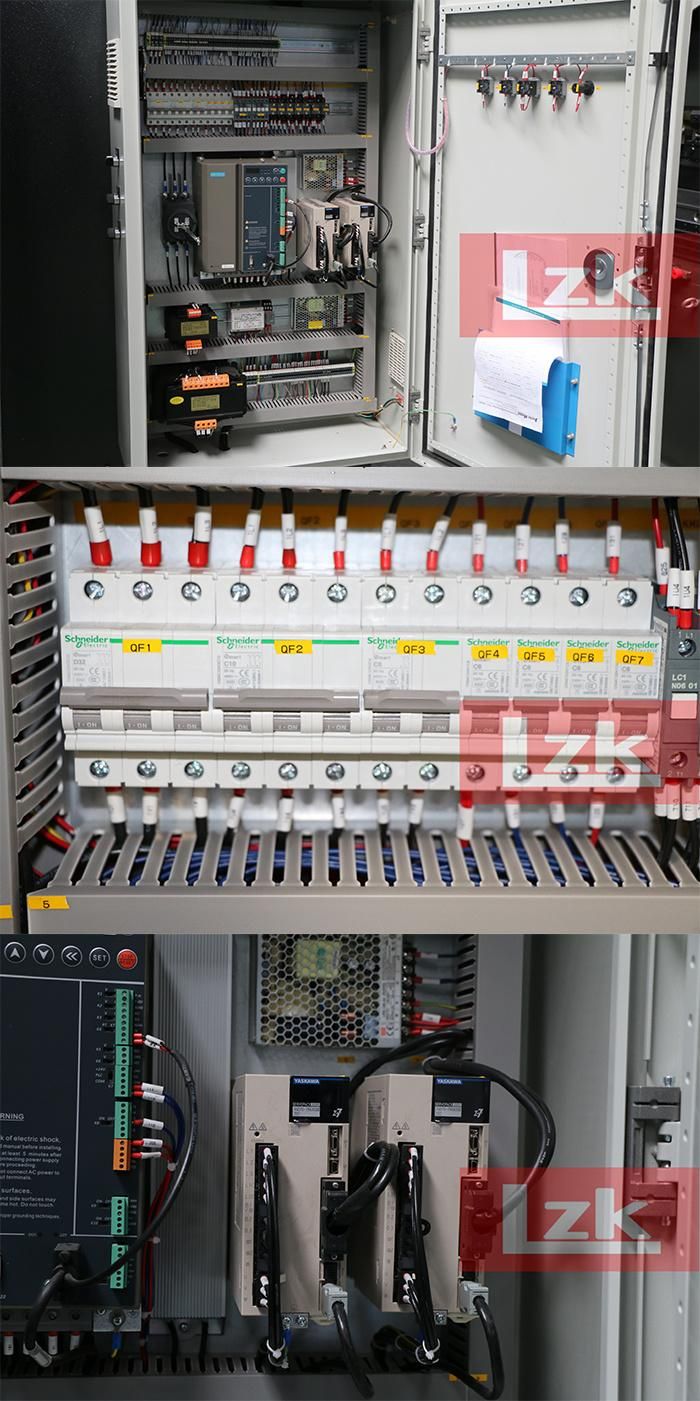

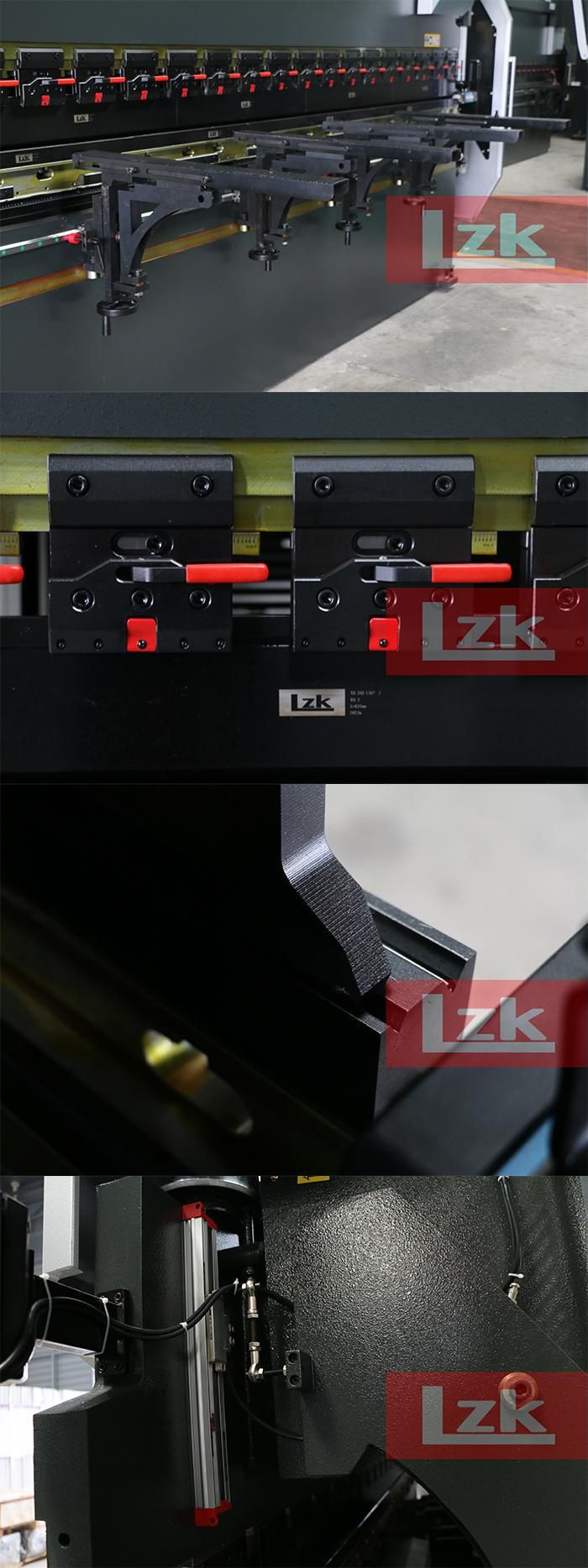

Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.Use Sheet Metal Bending Machine 200t4000DELEM DA58T CNC control systemItaly DSP Laser ProtectionAutomatic crowning table for high bending straightnessUse Sheet Metal Bending Machine 200t4000Sliding Front Support ArmsQuick Calmp, Easy Tool Changing. Overall quenching process tool, high hardness and good wear resistance, with material of 42CrMoItaly GIVI Grating Ruler Use Sheet Metal Bending Machine 200t4000Main Schneider Electrics ComponentsJapan YASKAWA Servo DriveUse Sheet Metal Bending Machine 200t4000Backgauge with Servo MotorDouble Guide RailsZ1, Z2 axes are electrically controlled by the two black handle on the foot pedal Use Sheet Metal Bending Machine 200t4000Energy saving type Servo Main Motor maintains high speed, long life and accuracyBosch Rexroth Hydraulic SystemNice Pipe ConnectionMachine loading process with 20OT
Use Sheet Metal Bending Machine 200t4000
Use Sheet Metal Bending Machine 200t4000

Our press brakes work well in customer's workshop

Use Sheet Metal Bending Machine 200t4000German CustomerUse Sheet Metal Bending Machine 200t4000Russia Customer, manufacturer of Yacht

Customer come from different countries for cooperation and inspection

Use Sheet Metal Bending Machine 200t4000
Use Sheet Metal Bending Machine 200t4000
