• Model NO.：YH-7XS
• Type：Three-Axis
• Name：Single Intensifier Pump
• Use：Intensifier Pump
• Weight：1025kg
• Voltage：220V,380V
• Rated Power：37kw(50Hz)
• Max.Constant Pressure：60K Psi
• Certificate：Ce ISO
• MOQ：One Unit for Waterjet
• Transport Package：Water Jet Cutting Machine Spare Part Package: Soft
• Specification：1607*851*1484
• Trademark：YH
• Origin：China
• Production Capacity：1000 Units,Month

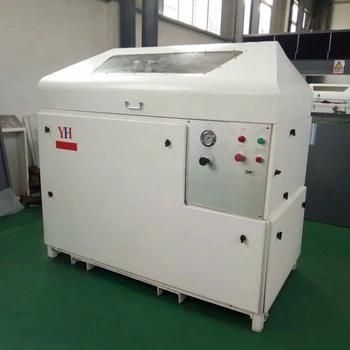

Intensifier
Pump
(YH-7XS)Maximum Pressure(PSI/BAR)60000/4137Output Flow(GPM/LPM)1.24Max. Nozzle Diameter(Inch) 0.015Recommended Nozzle Diameter (Inch) 0.010*2 MotorHorsepower60Threephase Voltage190 to 440(50hz)
200 to 575(60Hz)Motor Power (KW)45IntensifierNum. of Intensifier1Proportion20:01Reversing TypeElectricOil  PumpFluid TypeForce SourceCapacity of tank (Gallons)35Conrolling Type Micrologix 1000Double Pressure TransformationRemote control by Table Operation PanelPressure ControlManual knobPump on/off PBStandard & remote Emergencey Stop PBStandard & remote Pump Running StateLampFault MessageLampHydraulic Pressure GuageStandardWater Filter TableStandardStopwatchStandardHigh Pressure Water MeterNoAlarm InformationOil tempreture HighYesOil level LowYesInlet water pressure lowYesCheck Valve temperature highYesrelief valve temperature highYesintensifier overspeedNoValvecooling water flow control valveNocutting water force valveYesAccumulator Size12.5in(1.1Liter)Minimum Cooling Water Flow Rate(GPM)4Water InletPreposition Booster PumpStandard, Built in unit belt driven off
of  special motor/pump coupling.Recommend Intake Pressure (PSI)/(GPM)Over15/2.5Environment Temperature2ºC to 49ºCRelative HumidityUp to 95% @ 49ºCExternal Dimension(L*W*H,Unit:mm)1607*851*1484Weight(Kg)1050NoticeOnly one intensifier operates at a time

Superior product94 ksi high pressure waterjet partswaterjet direct drive partswaterjet direct drive pumpCustomize cutting table

Packing and Shipping

After sale service
Professional service team and 24 hours online to solve your problems, give quick and professional guide.
- Guarantee that provide technical service and training in time.
-The maintenance is free within guarantee period, but if it is caused by human factors, you will pay for it to YH.
- If it is not in the guarantee period, whatever reason for damaging the device, you will pay for it.
- Installation and training: customer can be in our factory for learning ,4-5 days is ok .
- The quality will be guaranteed due to many years working experience in water jet cutting machine and spare parts field.
