8mm Metal Sheet Cutting Hydraulic Nc Shear Machine

Shanghai YingXin World Machinery Co., Ltd.
  • After-sales Service:Available
  • Automation:Automatic
  • Certification:CE, ISO 9001:2000, ISO 9001:2008, EPA, CS, RoHS
  • Condition:New
  • Warranty:1 Year
  • Metal Shearing Machine:Swing Beam Type Shearing Machine

Base Info

  • Model NO.:QC12Y 8x3200

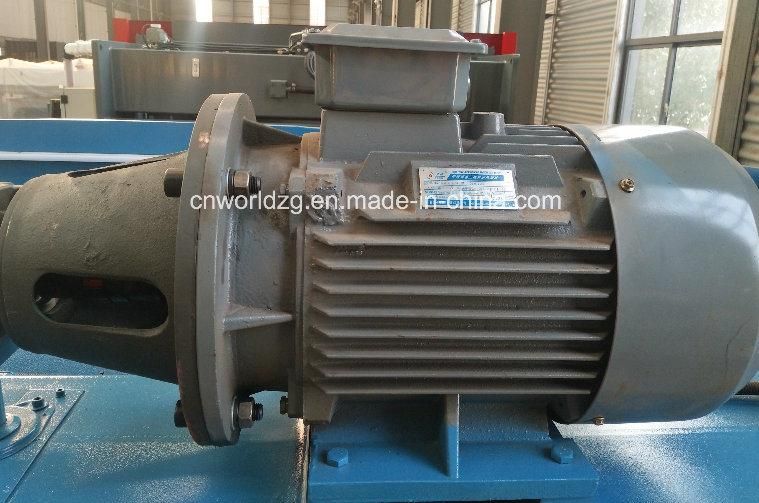

  • Motor Brand:Siemens

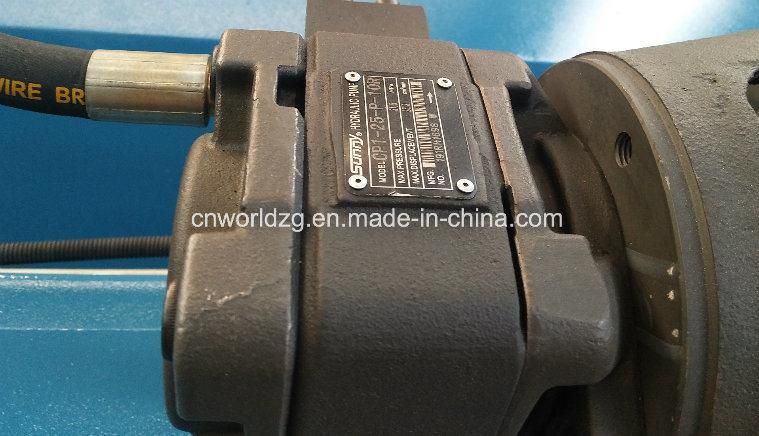

  • Hydraulic Pump:Sunny
  • Valve:Rexroth
  • Control System:Estun E21s Nc System
  • Color:Customized
  • Transport Package:in Container
  • Specification:cutting width to 6000mm
  • Trademark:WORLD
  • Origin:China
  • HS Code:84623990
  • Production Capacity:5000PCS,Year

Description

Basic Info.

Model NO. QC12Y 8x3200 Motor Brand Siemens Hydraulic Pump Sunny Valve Rexroth Control System Estun E21s Nc System Color Customized Transport Package in Container Specification cutting width to 6000mm Trademark WORLD Origin China HS Code 84623990 Production Capacity 5000PCS/Year

Product Description

8mm metal sheet cutting hydraulic nc shear machine

Features:

1) A fully welded steel construction with high strength and rigidity.
2) Front-controlled backgauge by power fast-adjustment & manual fine-adjustment with counter display.

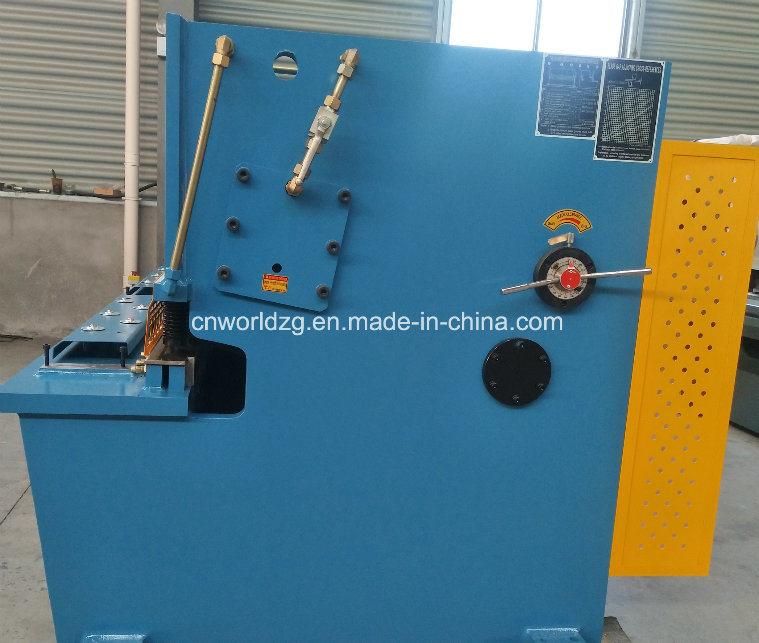

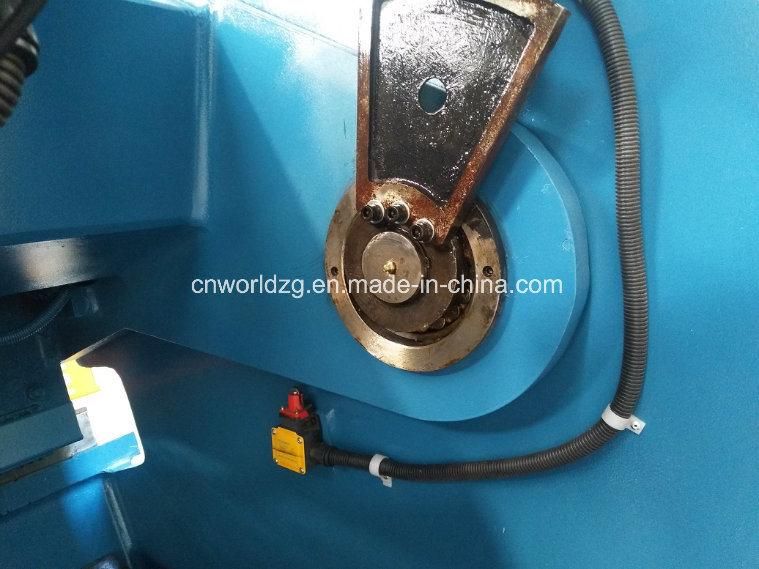

3) Fast-adjusting device for blade clearance.
4) Reliable protection barrier.
5) With counter.

Details:

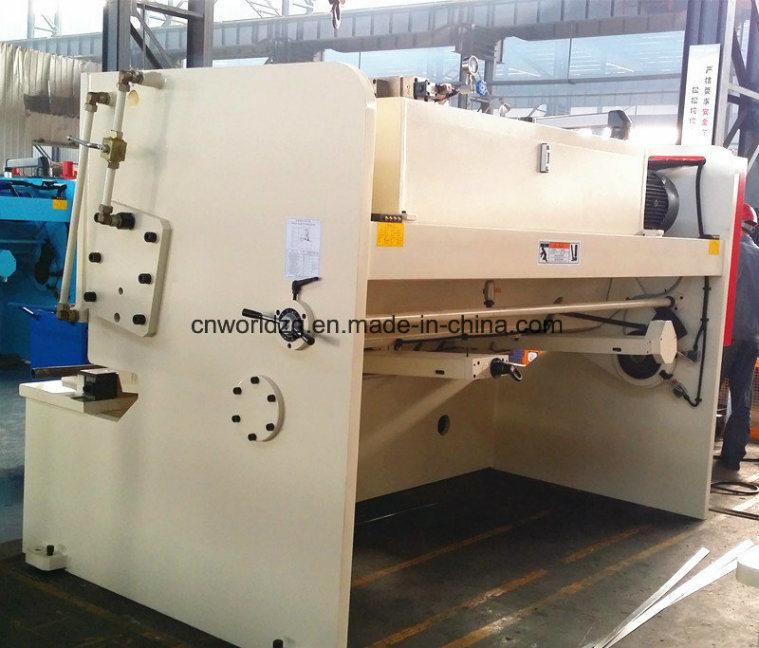

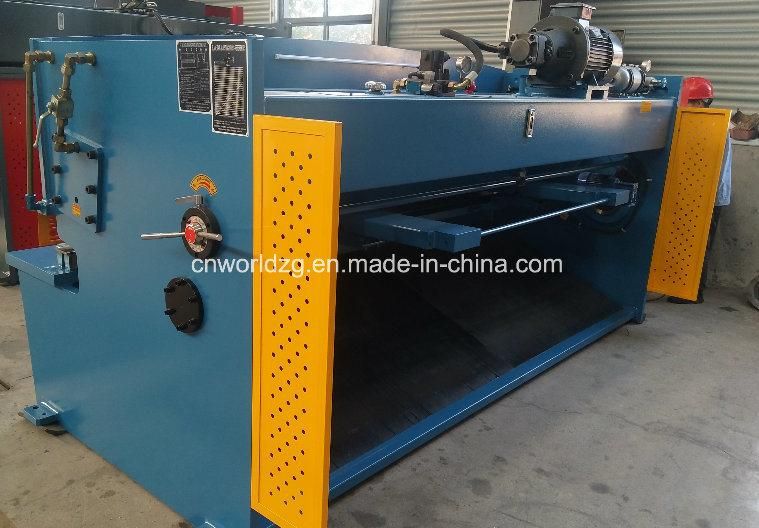

1-Strong steel welded c frame body, heat treatment and best producing by cnc machine center, high rigidity and precision.

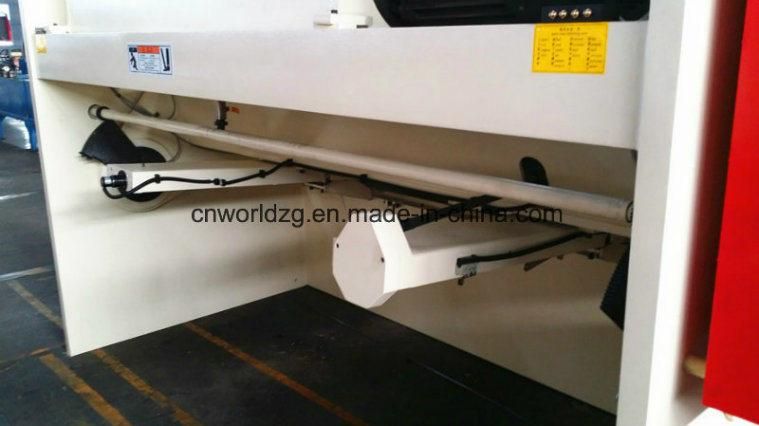

2-Backguage is controlled by motor and ballscrew, the postion can be displayed on the screen of E21 NC system.

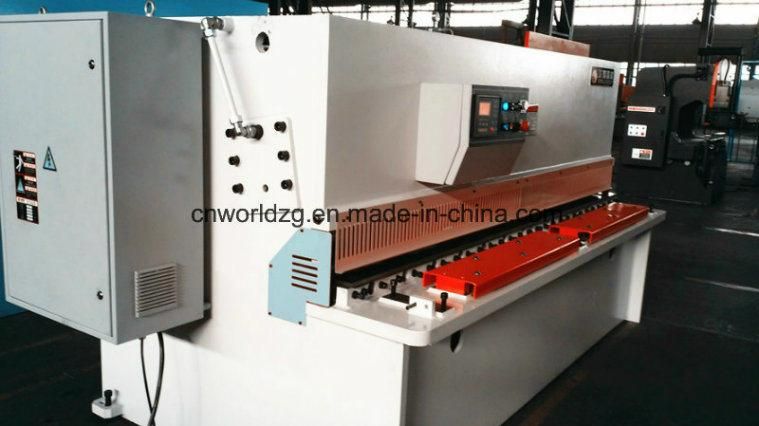

3-English control panel with counter, emergency stop button is equipped for safety.

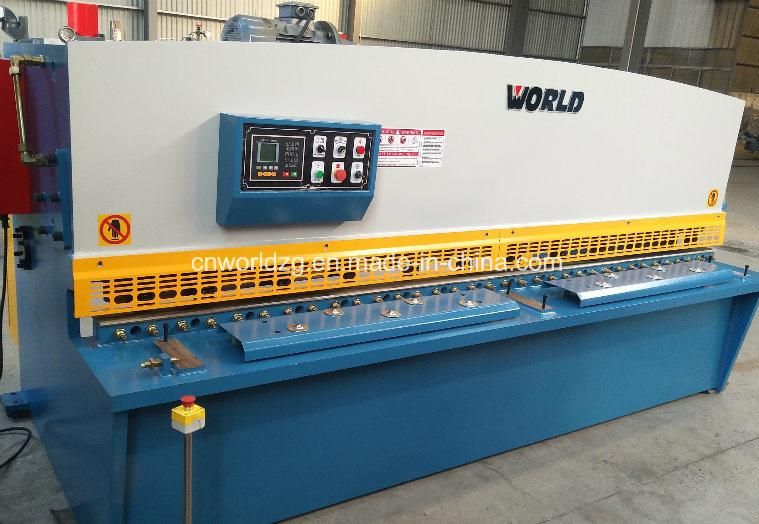

8mm Metal Sheet Cutting Hydraulic Nc Shear Machine
8mm Metal Sheet Cutting Hydraulic Nc Shear Machine
8mm Metal Sheet Cutting Hydraulic Nc Shear Machine
8mm Metal Sheet Cutting Hydraulic Nc Shear Machine
8mm Metal Sheet Cutting Hydraulic Nc Shear Machine
8mm Metal Sheet Cutting Hydraulic Nc Shear Machine
8mm Metal Sheet Cutting Hydraulic Nc Shear Machine
8mm Metal Sheet Cutting Hydraulic Nc Shear Machine
8mm Metal Sheet Cutting Hydraulic Nc Shear Machine

Specifications:
ItemsunitQC12Y-4x2500QC12Y-4x3200QC12Y-4x4000
Max. cutting thicknessmm444
Max. cutting widthmm250032004000
Tensile strength of plate to be cutN/mm2450450450
Cutting angledeg1.51.51.5
Travel distance of back gaugemm20-60020-60020-600
Throat depthmm150150150
Stroke speedsspm161410
Main motorkW45.55.5
Lengthmm304038404800
Widthmm150015001500
Heightmm150016001700
ItemsunitQC12Y-6x2500QC12Y-6x3200QC12Y-6x4000
Max. cutting thicknessmm666
Max. cutting widthmm250032004000
Tensile strength of plate to be cutN/mm2450450450
Cutting angledeg1.51.51.5
Travel distance of back gaugemm20-60020-60020-600
Throat depthmm150150150
Stroke speedsspm151212
Main motorkW7.57.57.5
Lengthmm304038404800
Widthmm165016501650
Heightmm170017001700
ItemsunitQC12Y-8x2500QC12Y-8x3200QC12Y-8x4000
Max. cutting thicknessmm888
Max. cutting widthmm250032004000
Tensile strength of plate to be cutN/mm2450450450
Cutting angledeg1.51.51.5
Travel distance of back gaugemm20-60020-60020-600
Throat depthmm150150150
Stroke speedsspm141210
Main motorkW7.57.511
Lengthmm304038604800
Widthmm170017001700
Heightmm170017001700
