Cutting & Fold-bend Machine

Home > Product > Bending Machine

MB8 250t4000 CNC Hydraulic Press Brake

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：2-year
  • Condition：New
  • Certification：CE
  • Automation：Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：MB8 250T4000
  • Type：Press Brake
  • System：Da52s
  • Axes：Y1, Y2, X
  • Crowning：Hydraulic Crowning
  • Backgauge Distance：600mm
  • Backgague Motor：Servo Motor
  • Clamping：Quick Clamp
  • Main Motor：Siemens
  • Electrics：Schneider
  • Hyraulic Valve：Bosch-Rexroth
  • Pump：America Sunny
  • Transport Package：20ot with Plastic Film Covered
  • Specification：4600x2200x3010
  • Trademark：Jiashida Machine
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：100 Sets,Month

Description

MB8 Series E-Hydraulic CNC Press Brake with DA52S System 3+1 Axes Features:The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.The oil cylinder has been forged, Quenched and tempered, fine grinding, hard chromium plating and other processes, and with the import of sealing ring, the phenomenon of oil leakage in customer service.The hydraulic system adopts the integrated hydraulic system of oil road to reduce the installation of the pipeline, and the appearance of the hydraulic system is beautiful and concise.The use of hydraulic deflection compensation gives access to uniform full length workpieces. Hydraulic deflection compensation consists of a set of oil cylinders under the worktable, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative positions with slider keep unchanged. Compensation valves are subject to plate thickness and properties of material to be bent.MB8 250t4000 CNC Hydraulic Press BrakeCNC DELEM DA52S Control SystemSouth Korea Foot Pedal SwitchQuick Clamp Segmented Punch and Die with Heat Treatment MB8 250t4000 CNC Hydraulic Press BrakeGrating RulerBackgauge

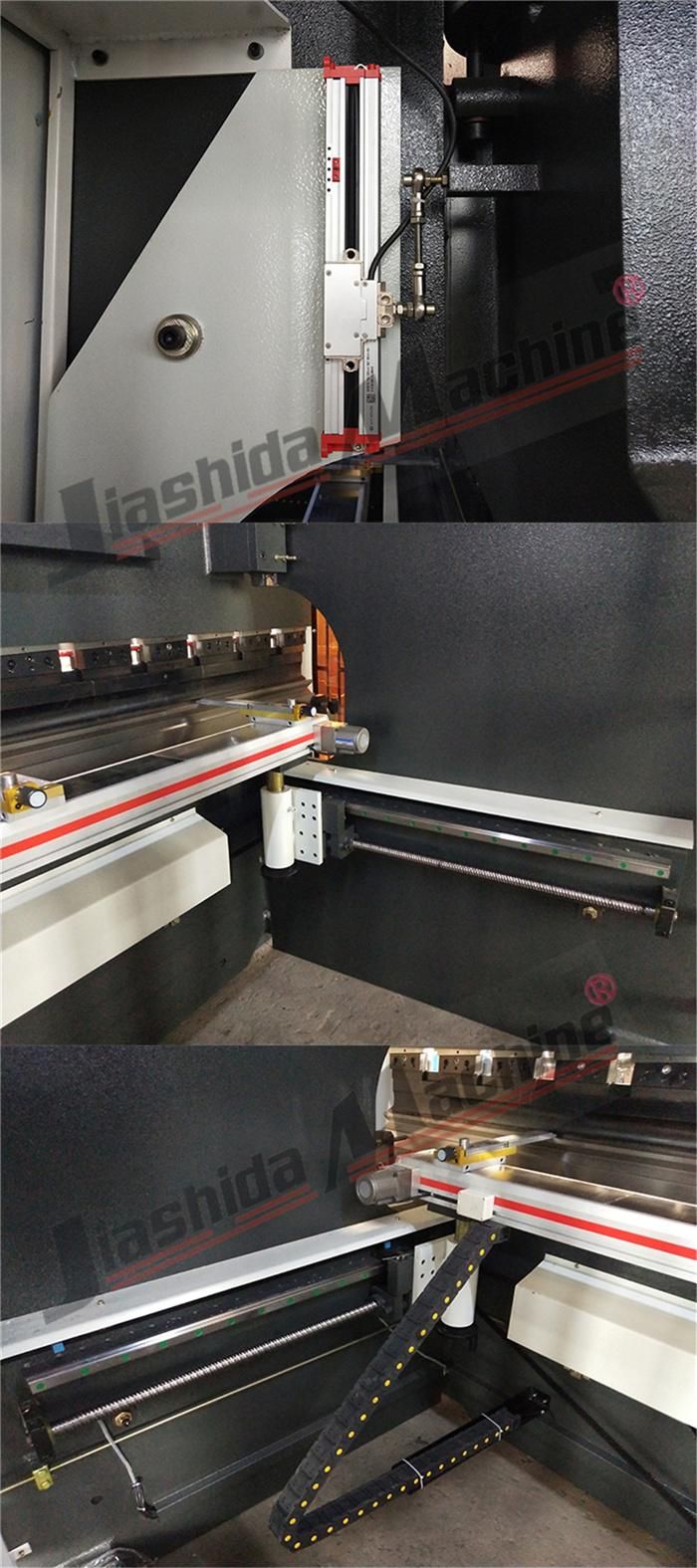

X axis
Taiwan Ball Screw and Linear Guide Rail

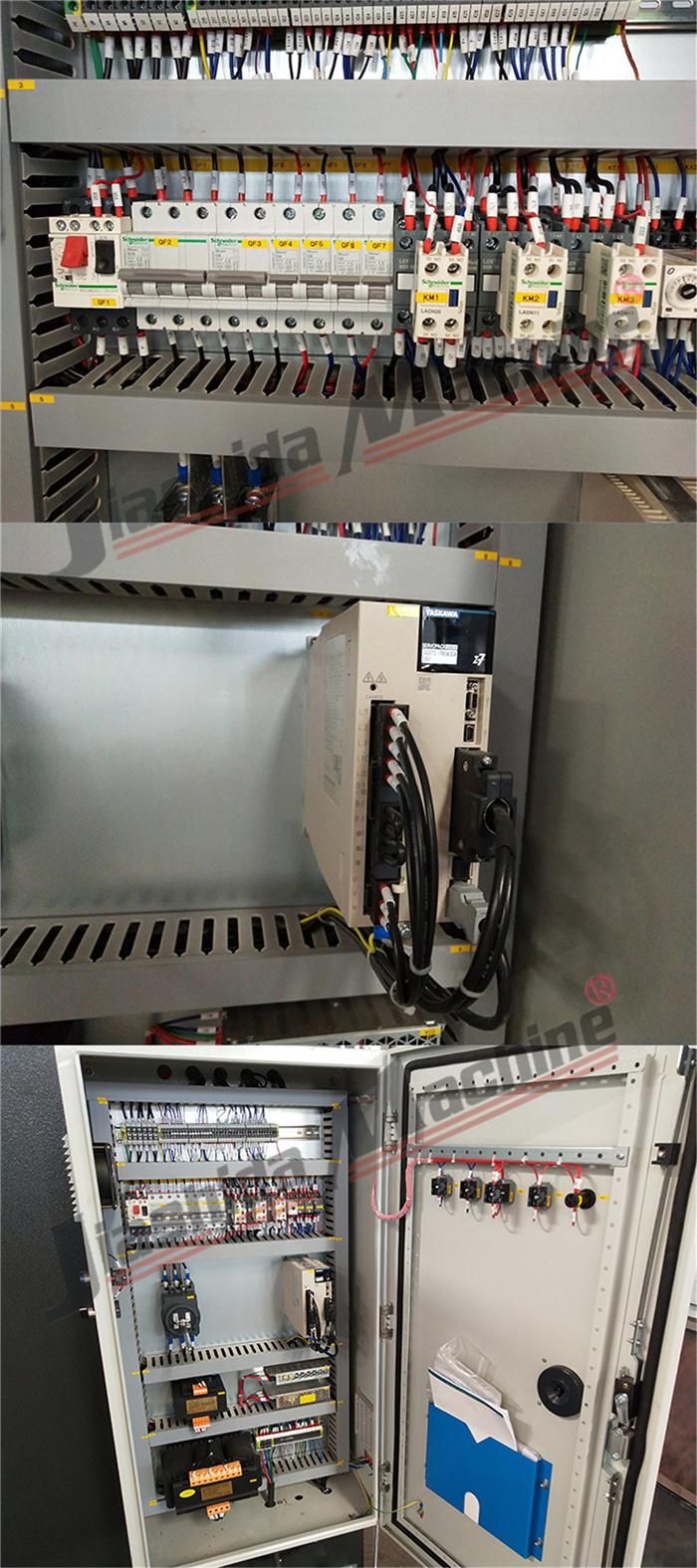

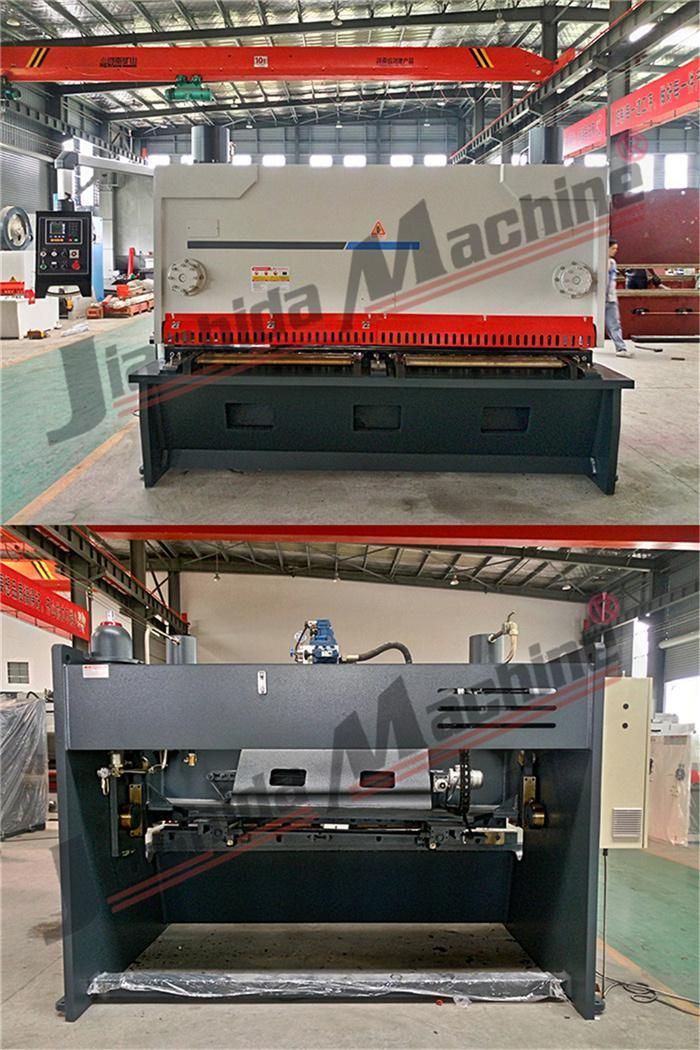

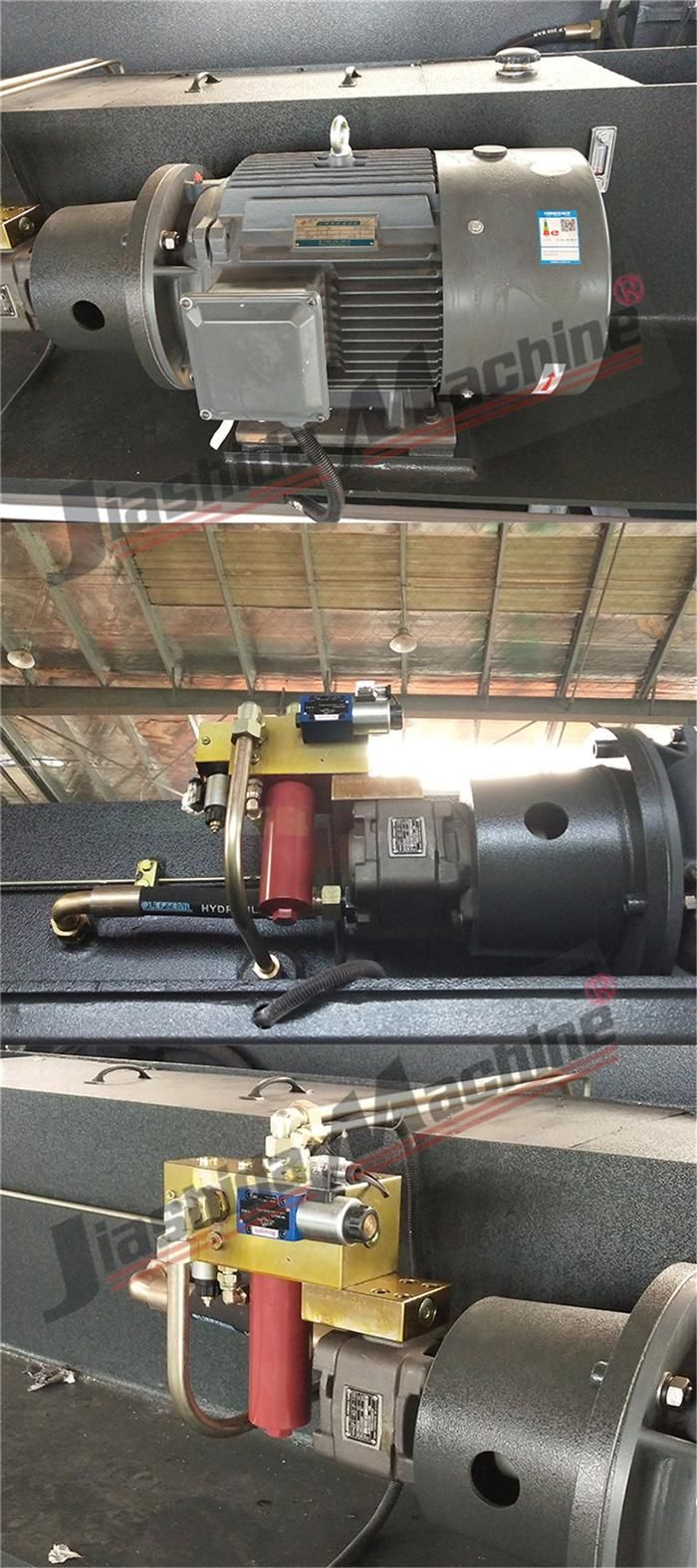

2 Pieces of Automatic Finger Blocks MB8 250t4000 CNC Hydraulic Press BrakeSimens Main MotorGerman Bosch-Rexroth Hydraulic SystemAmerica SUNNY Internal Gear PumpGermany EMB Tube ConnectorGerman BAUSER and Busak+Shamban Sealing RingMB8 250t4000 CNC Hydraulic Press BrakeElectricsElectrical system is France SchneiderEquipped with dustproof cabinet to guarantee the high quality electrical systemJapan YASKAWA Servo Motor & Servo DriveMB8 250t4000 CNC Hydraulic Press BrakeShearing Machine
