• Model NO.：40T,2200 40T,2500 50T,2500 63T,2500 63T,3200 80T,2
• WORKTABLE LENGTH：2200
• POLES DISTANCE：1850
• THROAT DEPTH：230
• SLIDER TRAVEL：100
• Transport Package：Plywood Case
• Specification：CE SGS ISO9001
• Trademark：HOTON
• Origin：China
• HS Code：8462219000
• Production Capacity：10 PCS,Month

Basic Info.

Model NO. 40T/2200 40T/2500 50T/2500 63T/2500 63T/3200 80T/2 WORKTABLE LENGTH 2200 POLES DISTANCE 1850 THROAT DEPTH 230 SLIDER TRAVEL 100 Transport Package Plywood Case Specification CE SGS ISO9001 Trademark HOTON Origin China HS Code 8462219000 Production Capacity 10 PCS/Month

Product Description

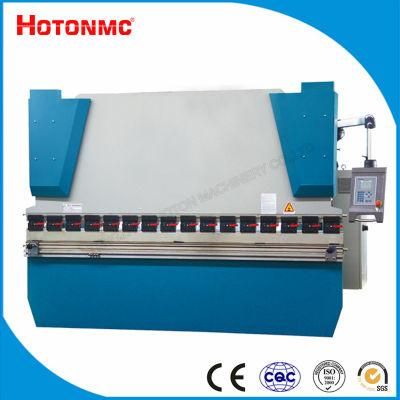

WC67K SERIES TORSION BAR NC CONTROL PRESS BRAKE IS FITTED WITH NUMERIC CONTROLLER.
Multi-steps programming function is able to achieve an automatic operation and continuous positioning of multi-steps procedures, as well as an automatic precision adjustment for positions of rear stopper and upper beam.
The machine is provided with bend counting function, real-time display of processing quantity, power-failure memory of positions of rear stopper, upper beam, programs and parameters.
WC67K SERIES TECHNICAL PARAMETERS:

TYPE	NOMINAL FORCE (KN)	WORKTABLE LENGTH (MM)	POLES DISTANCE (MM)	THROAT DEPTH (MM)	SLIDER TRAVEL (TIMES/MIN)	MAX OPEN (MM)	POWER (KW)
40T/2200	400	2200	1850	230	100	320	5.5
40T/2500	400	2500	1850	230	100	320	5.5
50T/2500	500	2500	1850	230	100	320	5.5
63T/2500	630	2500	1900	250	100	320	5.5
63T/3200	630	3200	2560	250	100	320	5.5
80T/2500	800	2500	1990	300	100	320	7.5
80T/3200	800	3200	2560	320	100	350	7.5
80T/4000	800	4000	3200	320	100	350	7.5
100T/2500	1000	2500	1900	320	120	350	7.5
100T/3200	1000	3200	2600	320	150	400	7.5
100T/4000	1000	4000	3200	320	150	400	7.5
125T/3200	1250	3200	2600	320	150	400	11
125T/4000	1250	4000	3200	320	150	400	11
160T/3200	1600	3200	2580	320	200	460	11
160T/4000	1600	4000	2900	320	200	460	11
160T/5000	1600	5000	3900	320	200	460	11
160T/6000	1600	6000	4900	320	200	460	11
200T/3200	2000	3200	2480	320	200	460	11
200T/4000	2000	4000	2900	320	200	460	11
200T/5000	2000	5000	3900	320	200	460	11
200T/6000	2000	6000	4900	320	200	460	11
250T/3200	2500	3200	2450	400	250	590	18.5
250T/4000	2500	4000	2900	400	250	590	18.5
250T/5000	2500	5000	3900	400	250	590	18.5
250T/6000	2500	6000	4900	400	250	590	18.5
300T/3200	3000	3200	2450	400	250	590	22
300T/4000	3000	4000	2900	400	250	590	22
300T/5000	3000	5000	3900	400	250	590	22
300T/6000	3000	6000	4900	400	250	590	22
400T/3200	4000	3200	2400	400	250	590	30
400T/4000	4000	4000	2900	400	250	590	30
400T/5000	4000	5000	3900	400	250	590	30
400T/6000	4000	6000	4900	400	250	590	30
500T/5000	5000	5000	3900	400	250	590	45
500T/6000	5000	6000	4900	400	320	590	45
600T/5000	6000	5000	2900	400	320	590	55
600T/6000	6000	6000	4900	400	320	590	55







Contact Us:

Andy Wang  TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.
