• Model NO.：SQ80D1
• Type：Manual Bending Machine
• Spindle Speed：26 Rpm
• Casting：Aluminum
• Transport Package：Ply Wood Case
• Specification：50 65
• Trademark：WELLON
• Origin：Tengzhou, China
• HS Code：8459590000
• Production Capacity：50 PCS,Month

Basic Info.

Model NO. SQ80D1 Type Manual Bending Machine Spindle Speed 26 Rpm Casting Aluminum Transport Package Ply Wood Case Specification 50 65 Trademark WELLON Origin Tengzhou, China HS Code 8459590000 Production Capacity 50 PCS/Month

Product Description

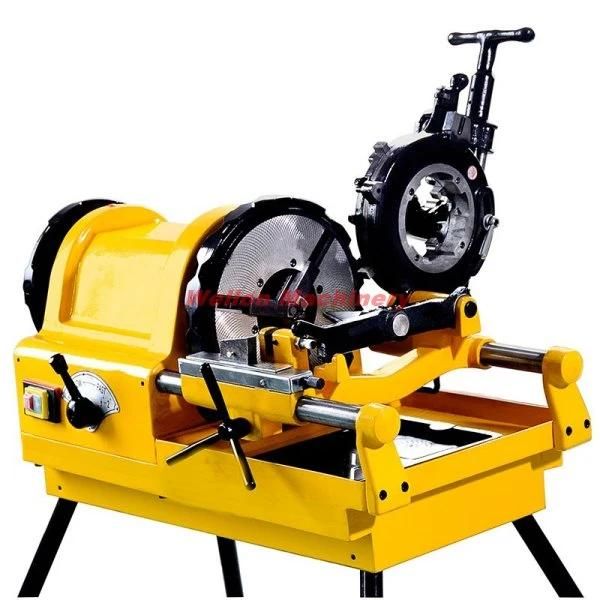

Performence Features:This machine is for threading of various water, electric or gas pipes ranging form 1/2"- 3". It is efficient
and can be widely used in equipment installation and construction industries and is an ideal device
for increasing efficiency, shortening construction time, securing construction quality, and decreasing
working intensity. Read this manual carefully before using the machine.

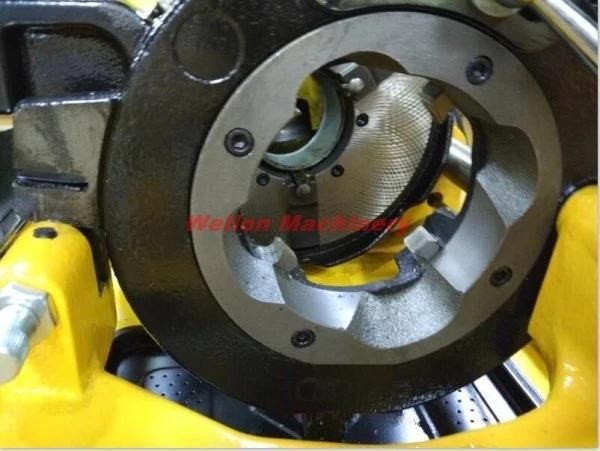

Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through die head, with integral oil reservoir.
Pump: Self-priming constant flow.
Caution: The electric threader is for threading. Follow directions and instructions of the Electric
Threader User's Manual to avoid danger to operate it.

Technical parameter:

Model	SQ80D1
motor	750W induction type ,50-60Hz
casting	aluminum
speed	26RPM(1/2"-2"),11RPM(2 1/2"-3")
capacity	1/2"- 3" pipe
processed pipe	stainless steel pipe ,metal pipe
dies	standard type:3 sets of HSS dies
	Optional type:Alloy dies

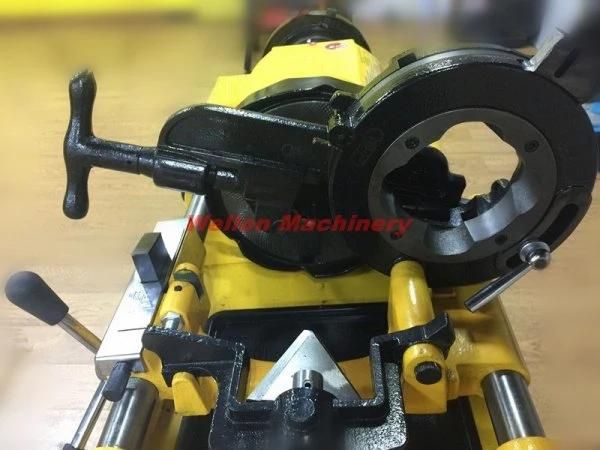

die head	standard type: 2 automatic die head
	Optional type: quick-open
threads	standard BSPT or NPT,BSPP and ISO (need Optional metric die head & dies)

Standard Accessories
Die head 1/2"-2", (BSPT/NPT as optional)
Die head 2 1/2"-3", (BSPT/NPT as optional)
Thread Dies 1/2"-3/4" alloy (BSPT/NPT as optional)
Thread Dies 1"-2" alloy (BSPT/NPT as optional)
Thread Dies 2 1/2"-3" alloy (BSPT/NPT as optional)

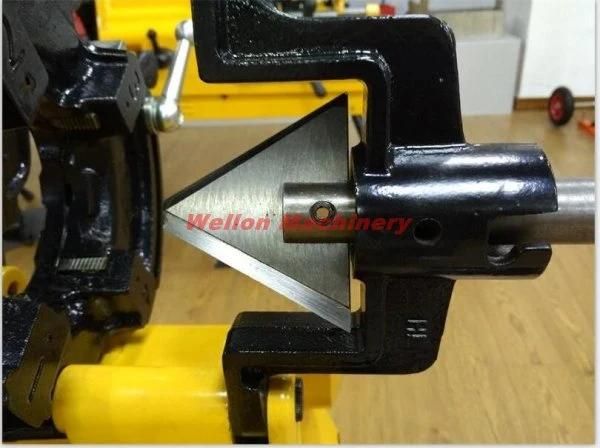

1/4-4"reamer assembly with alloy cutting blade
1/4-4" cutter assembly
Support leg
Tool bo
