• Model NO.：DTCN5000
• Connected Shaft Number：Standard
• Style：Gantry
• Type：CNC
• Cutting Mode：Plasma
• Control Mode：CNC
• Cutting Width：3500mm
• Cutting Thickness：51-300mm
• Cutting Speed：0-1000mm,Min
• Voltage：AC220V
• Gas：Oxygen
• Color：Blue, Yellow or as Customers′ Requirement
• Size：as Customers′ Requirement
• Applicable Material：Metal
• Transport Package：a Full Container
• Specification：CE, ISO
• Trademark：DATANG
• Origin：Wuxi, China
• HS Code：84688000
• Production Capacity：30 Sets Per Month

Technical Performance

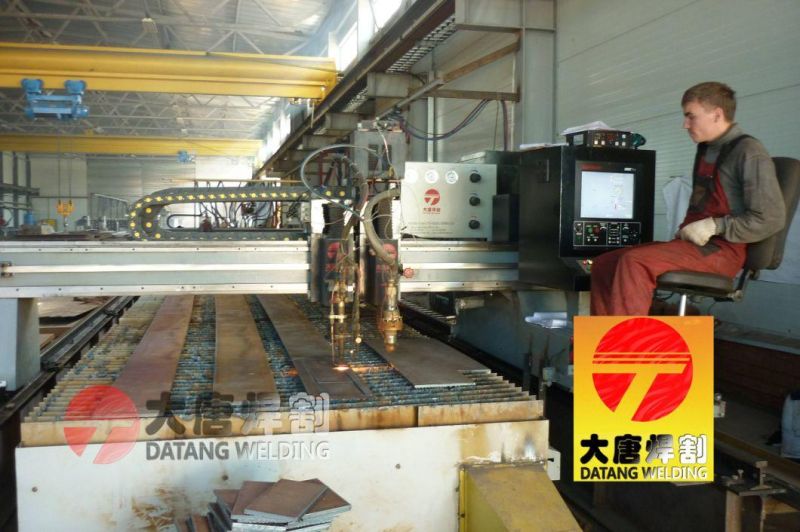

This series of cutting machine is a high efficiency and high performance equipment,which uses gantry type,single drive or double drive,and combines CNC control,precision mechanism,and oxygen cutting.This machine uses advanced CNC systen from abroad,such as Spanish Fargor and American Hypertherm.Its excellent cutting parameters,reliable and stable features ensures the perfect cutting effect.CNC flame torch has auto height regulator and auto igmition functions,which isconvenient for use.
Technical parameter
Gauge
Effective cutting length
Effective cutting length
Min.Distance of torch
Cutting depth
Cutting speed
free running speed
CNC
Strip
3000-10000mm
2200-9200mm
Length of railway -2500mm
230mm
80mm
6-200mm
50-1000mm/min
≤6000mm/min


CNC Multihead Flame Cutting Machin
Model of Ralls span(mm)
4000
5000
600
Roughness of cut surface
Ra12.5
Effective cutting width(mm)
3200
4200
5200
Repeat precision
±0.5
Min cutting width(mm)
(CNC)
230
230
230
Main pipe line
Oxygen(MPa)
P=1
(Strip)
80
80
80
Acetylene(MPa)
P=0.1
Thickness of steel plate-cutting(mm)
6-100
6-100
6-100
Voltage(V)
AC220±10%
Speed of steel plate-cutting(m/min)
0.05-1
0.05-1
0.05-1
Frequency(Hz)
50
Max return speed(mm/min)
4000
4000
4000
Total power(kw)
1.5
Cutting precision(mm)
±0.5/1000
Description of products

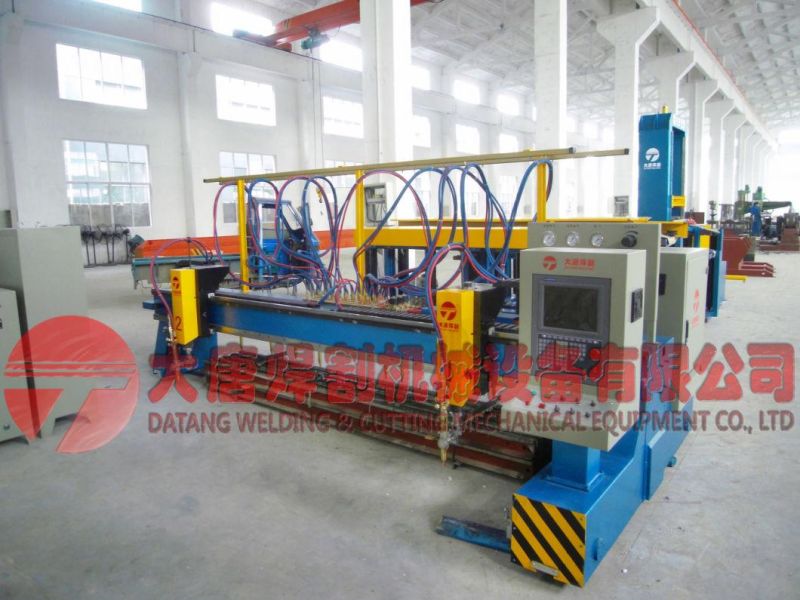

This series of cutting machine is of gantry structure. All the structure members are annealed, shot-blasted integrally and painted. Guide-rails on the frame are treated with high-frequency quenching, then ground and paneled together.

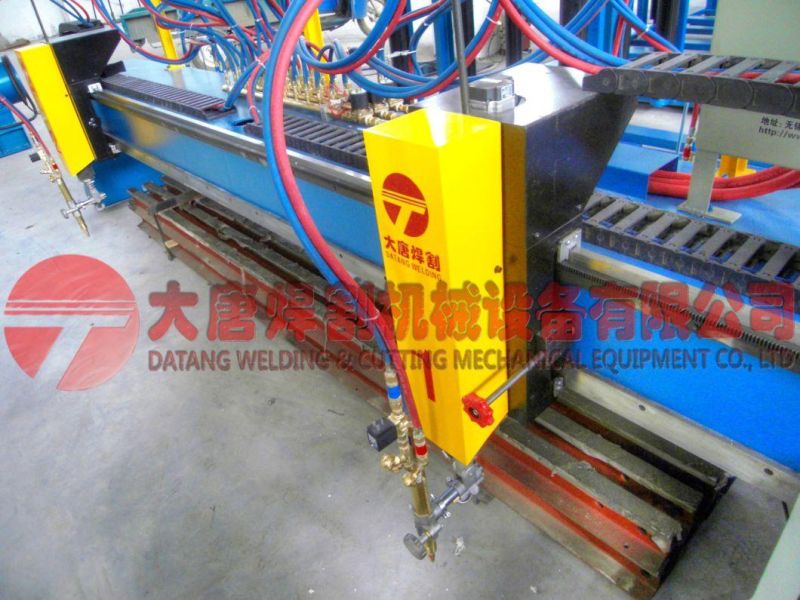

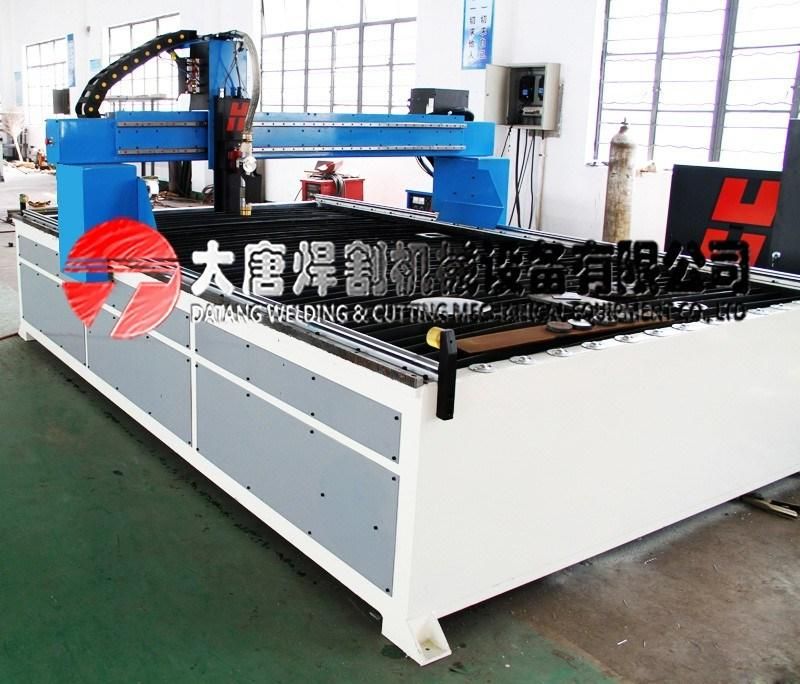

The advantage is: good rigidity, high precision, stable structure and so on. Linear triple-torch, infinite-revolving triple torch and plasma torch can be equipped based on customer requirement. Torch elevation unit is adopted with ball-bearing guide-way, which can elevate automatically or manually. Also auto-ignition function is available. Based on customer choice, tube and cable arrangement can be hanging-type or drag-chain type.


Special specifications can be customized according to the customer request
