• Model NO.：BK5018
• Slotting length：200mm
• Max.Weight of working piece：400kgs
• table diameter：500mm
• color：As Customer Request
• Transport Package：Plywood Case
• Specification：CE SGS ISO9001
• Trademark：HOTON
• Origin：Shandong China
• HS Code：846120200
• Production Capacity：5 PCS,Month

Basic Info.

Model NO. BK5018 Slotting length 200mm Max.Weight of working piece 400kgs table diameter 500mm color As Customer Request Transport Package Plywood Case Specification CE SGS ISO9001 Trademark HOTON Origin Shandong China HS Code 846120200 Production Capacity 5 PCS/Month

Product Description

Descrition of goods
1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining,
2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.
5. Use hydraulic feed the slotting machine, Is when the work is over  turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other  within the scope of etc. work matter,,
Enterprise suitable for single or small batch production.
Machine parameters:

SPECIFICATION	UNIT	BK5018
Ram maximum slotting length	mm	180
Ram stroke adjustment	mm	80
Ram per minute motion data	N/min	46/60/90
Work table size	mm	600X320
Table travel (X,Y)	mm	460X320
The knife head supporting hole axis to distance  of upright column for arm	mm	400
The knife head supporting hole end to table working distance	mm	480
X to the motor torque	N.M	6
Y to the motor torque	N.M	6
Fast moving	X(m/min) Y(m/min)	5 5
Ball screw X		FFZD3205-3/P4
Ball screw Y		FFZD3205-3/P4
The main motor power	K w	1.5/2/2.2
Machine weight	kg	1500
Ram maximum slotting length	mm	180



Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

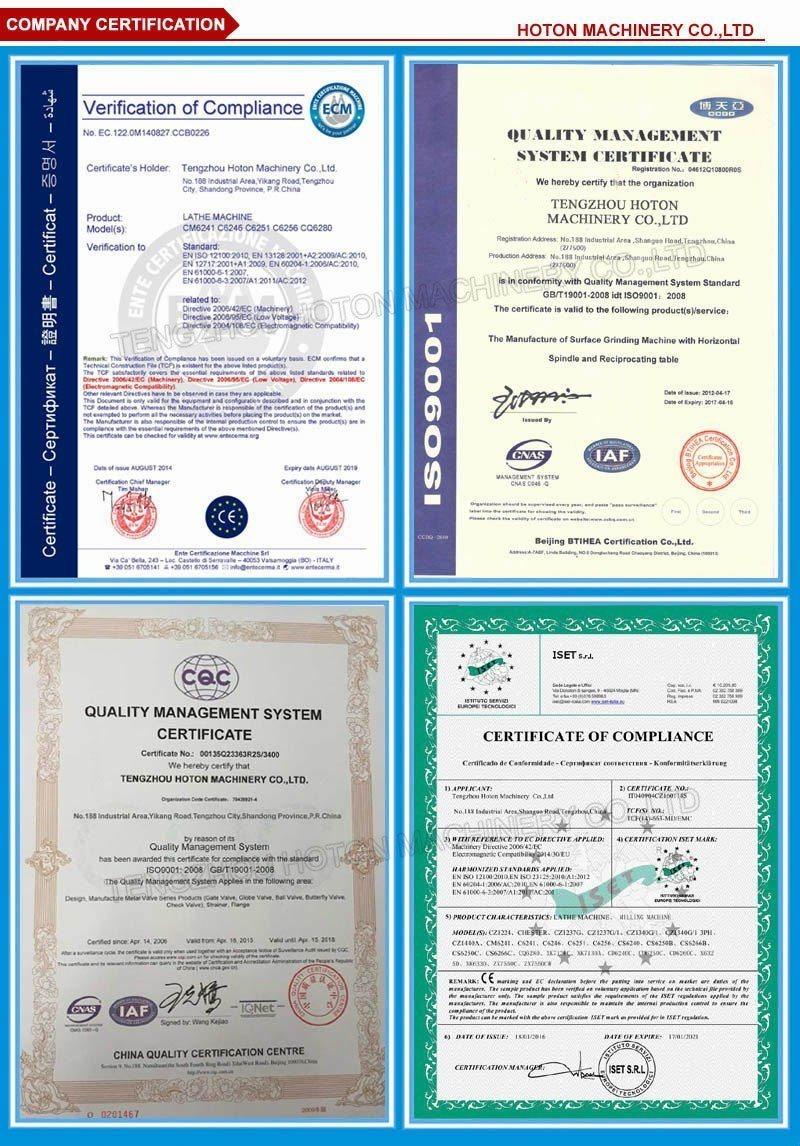

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.
