• Model NO.：GM-SB-63CNC
• Type：Pipe and Tube Bending Machine
• Certificate：ISO9001: 2000
• Applicable Material：S. S., M. S., Copper, Aluminium, Alloy, Galvanized
• Applicable Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Transport Package：Iron Frame,Wooden Case
• Specification：CE
• Trademark：GMACC
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-63CNC Type Pipe and Tube Bending Machine Certificate ISO9001: 2000 Applicable Material S. S., M. S., Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Application Wheelbarrow, Wheelchair, Boiler, Automobile Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

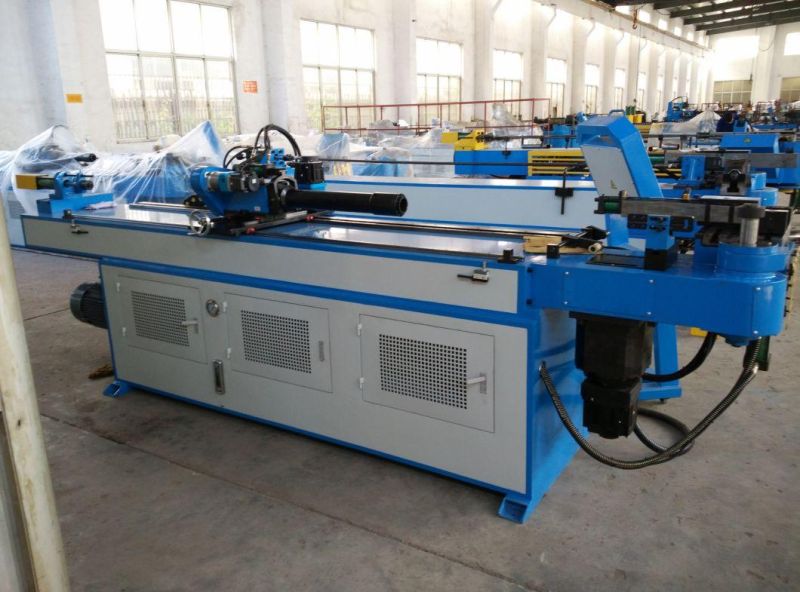

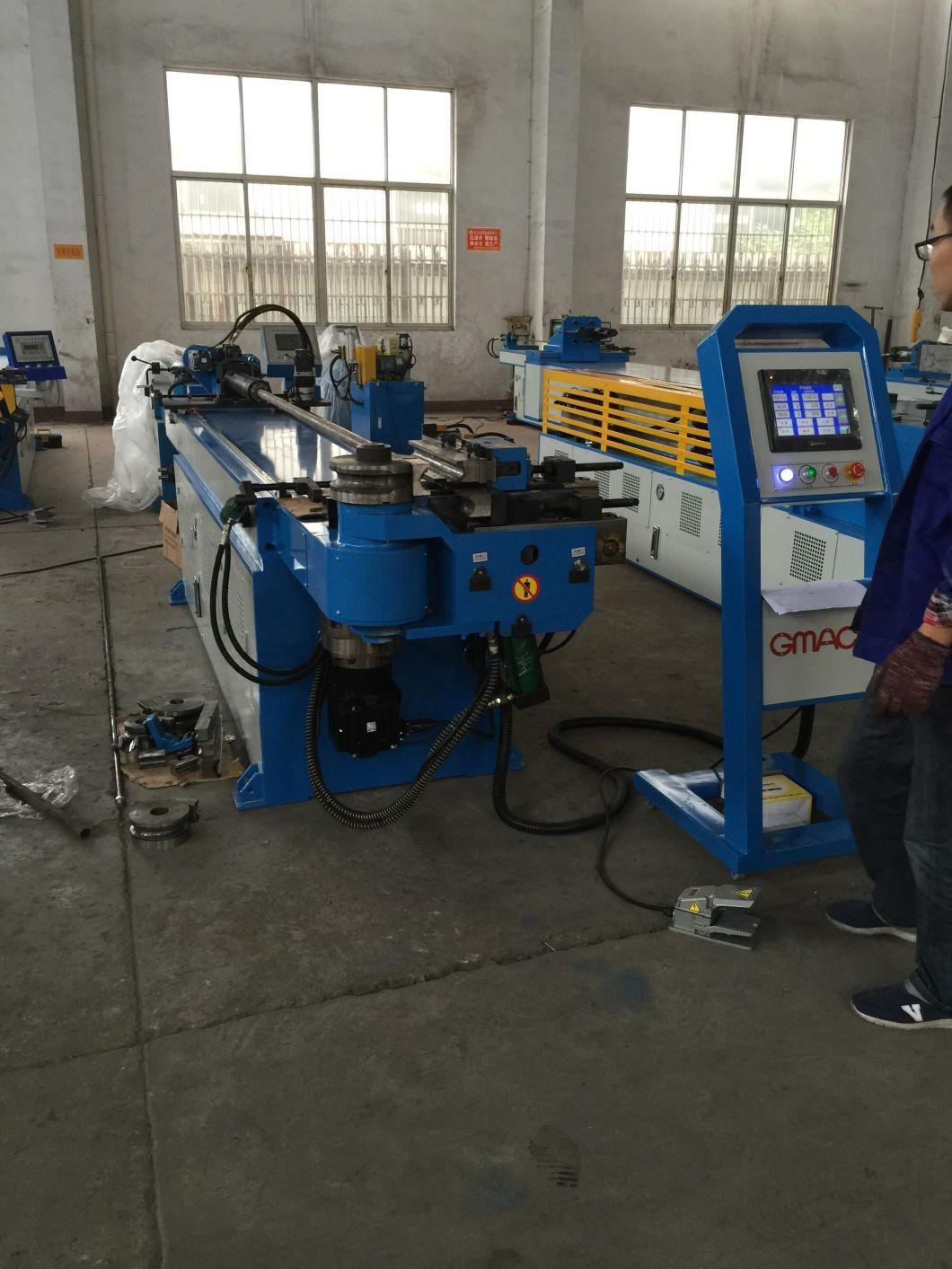

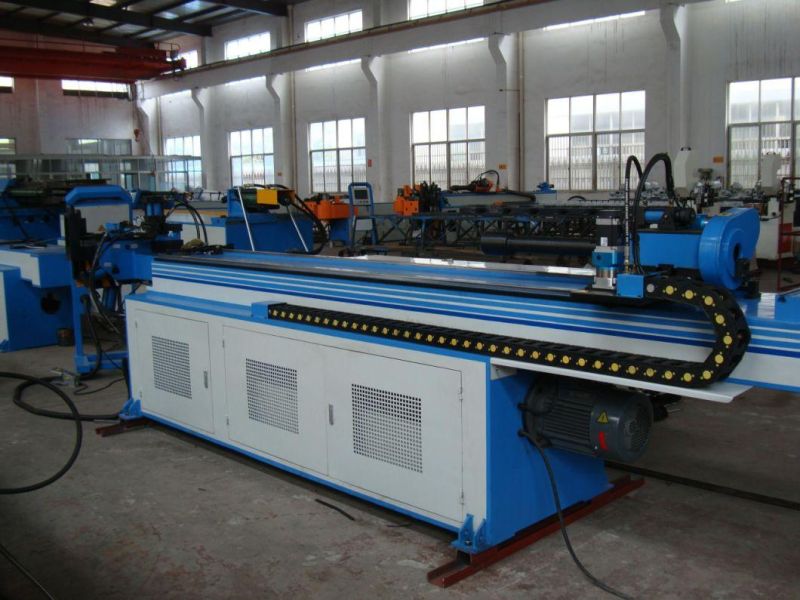

GM-SB-63CNC Full-Auto Numerical Control Single-Head Bending Machine GM-SB-63CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order,Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off and safety protection. Pipe bending(C axis), pipe rotating (B axis), and pipe feeding(Y axis) are all drove by servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.

Name	Unit	Parameter
Mild steel round tube	mm	¢63*3
Stainless Steel	mm	¢63*2
Mild steel square tube	mm	50*50*2.5
Mild steel rectangular tube	mm	50*45*2.5
Mild steel round solid bar	mm	¢25
Mild steel square solid bar	mm	20*20
Min. bending radius	mm	25
Max. Bending radius(Standard)	mm	300
Clamping adjustable stroke	mm	0-136
Shouldering adjustable stroke	mm	300
Mandrel retraction adjustable stroke	mm	0-136
Max. Bending Angle	°	190°
Through Effective Distance	mm	3600
Bending Speed(Max.)	°/sec	110
Rotation speed (axis Z)	°/sec	160
Feeding speed (axis X.)	mm/sec	800
Bending angle Precision	°	±0.10
Rotation angle Precision - axis Z	°	±0.10
Shifting Precision - axis X	mm	±0.10
Bending servo motor power	KW	7
Rotation Servo Motor Power	KW	1
Feeding Servo Motor Power	KW	1
System Motor Power	KW	5.5
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	4900*1200*1350
Machine Weight	T	ABOUT 3.2

 Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide)or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
Rotating/feeding/ bending servo motor	Japan Mitsubishi(Imported)
Contactor	Schneider

MODEL:GM-SB-63CNC-3A-1S (only for your reference)
