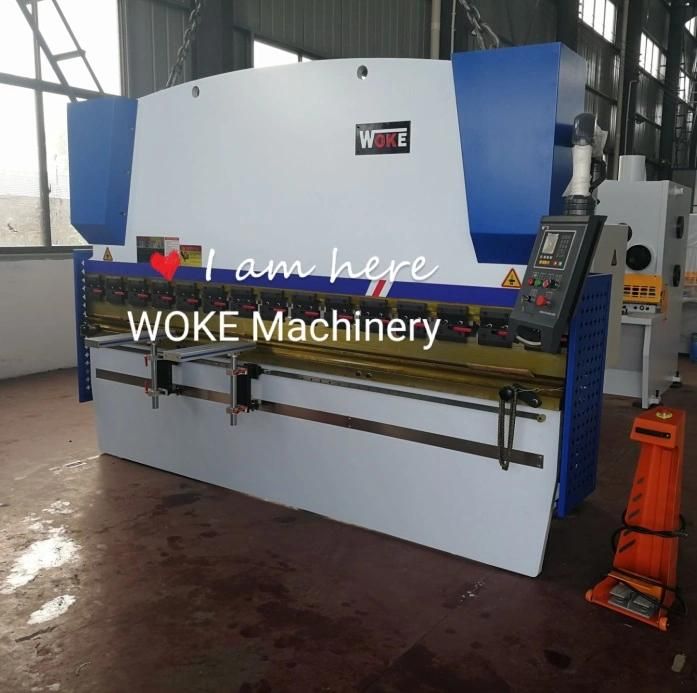

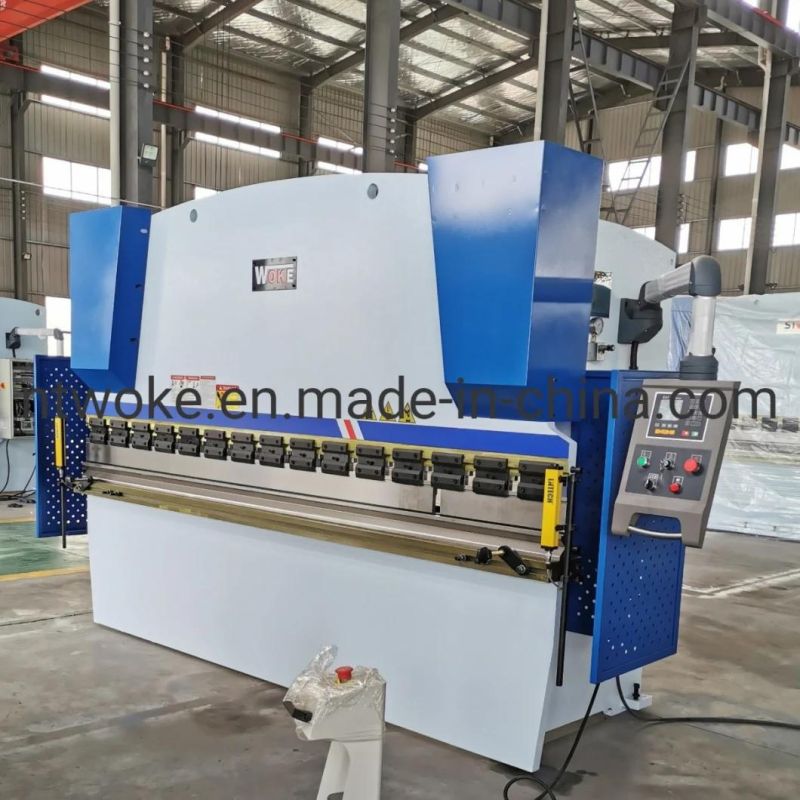

100 Tons Pressure Hydraulic CNC Nc Press Brake Bending Machine

Nantong Woke Machinery Equipment Co., Ltd.
  • After-sales Service：Long Life
  • Waterproof Rating：IPX-3
  • Warranty：2-year
  • Condition：New
  • Certification：ISO 9001:2008, CE
  • Automation：Automatic

Base Info

  • Model NO.：WC67Y-100T,3200
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type：Press Brake
  • Control System：Estun E21, Es10
  • Control Axis：Y, X
  • Power Supply：Customized as You Request
  • Hydraulic System：Rexroth
  • Auto Crowning：Option
  • Processing Material：Stainless, Mild Steel, Aluminum, So on
  • Machine Color：Customized
  • Core Electrics：Famous Brand in World
  • Voltage：220-450V
  • Key Word：Press Brake Machine
  • Transport Package：Nude Packing, Steel Pallet
  • Specification：12CBM
  • Trademark：WOKE
  • Origin：Nantong, Jiangsu, China
  • HS Code：8462299000
  • Production Capacity：40PCS,Month

Description

» The frame is steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.

» Synchronized positive stop design, and by Estun CNC programmable controller assuring accurate repeatability & ease of use.

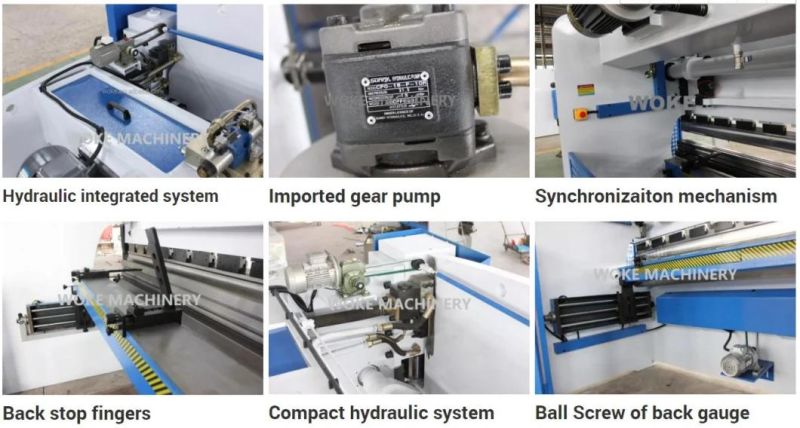

» Integrated hydraulic system allowing rapid approach switching automatically to slow bend.

» Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.

» Safe fence and the electric inter locker have bee designed for the machine to ensure the operation safety.

» The RAM is adopted hydraulic top-drive with two cylinders, working smoothly and stably.

» Mechanical stop nuts ensure stable and reliable positioning accuracy.

» The segmented punches of different length are adopted which can be combined into a certain
Length according to the processing demand to meet the different requirement of special workpieces.

» Back gauge is driven by linear guide way and ball screw, quick, convenient and accurate.

» The machine can be adopted with normal clamp devices or quick clamp as an option according to the customer's requirement to decrease the labors' work intension and increase the work efficiency.
TECHNICAL PARAMETERS

ModelNominal pressureWorktable lengthDistance between columnsThroat depthOpeningMotorDimension(LXWXH)
 TonmmmmmmmmKwmm
40T/1500401500118025032541850×1300×2100
40T/2000402000155025032542250×1300×2100
40T/2500402500205025032542750×1300×2100
63T/250063250020502503605.52750×1350×2230
63T/320063320026002503605.53450×1350×2230
80T/250080250020503203807.52750×1400×2350
80T/320080320026003203807.53450×1400×2350
100T/2500100250020503203807.52750×1450×2380
100T/3200100320026003203807.53450×1450×2380
100T/4000100400032003203807.54250×1450×2380
125T/2500125250020503203807.52750×1450×2380
125T/3200125320026003203807.53450×1450×2380
125T/4000125400032003203807.54250×1450×2380
160T/250016025002050320380112750×1700×2600
160T/320016032002600320450113450×1700×2600
160T/400016040003200320450114250×1700×2600
200T/320020032002600320470153450×1850×2860
200T/400020040003200320470154250×1870×2950
250T/32002503200260040053018.53450×1920×3050
250T/40002504000320040053018.54250×1950×3150
300T/320030032002600400560223450×2200×3130
300T/400030040003200400560224250×2250×3320
300T/600030060004700400560226100×2250×4250
400T/320040032002600400640303200×2280×3250
400T/400040040003200400640304000×2300×3600
400T/600040060004700400640306000×2350×4650
500T/600050060004700400640376000×2450×4700
600T/600060060004700460650456000×2700×5710

FRODUCT CONFIGURATION
100 Tons Pressure Hydraulic CNC Nc Press Brake Bending Machine
PRESS BRAKE MACHINE DESIGN IS CUSTOMIZED

100 Tons Pressure Hydraulic CNC Nc Press Brake Bending Machine
100 Tons Pressure Hydraulic CNC Nc Press Brake Bending Machine
100 Tons Pressure Hydraulic CNC Nc Press Brake Bending Machine100 Tons Pressure Hydraulic CNC Nc Press Brake Bending Machine
100 Tons Pressure Hydraulic CNC Nc Press Brake Bending Machine100 Tons Pressure Hydraulic CNC Nc Press Brake Bending Machine

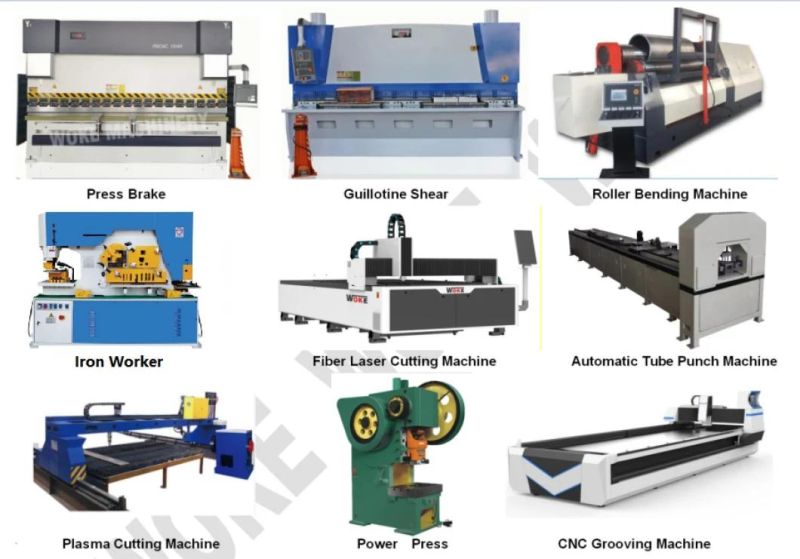

100 Tons Pressure Hydraulic CNC Nc Press Brake Bending Machine100 Tons Pressure Hydraulic CNC Nc Press Brake Bending MachineWOKE MACHINERY SUPPLY RANGE
