• Model NO.：HGSK-8*4050
• Trademark：SLJS
• Origin：Shanghai
• HS Code：8462299000
• Production Capacity：2000 Pieces,Year

Name

Specification

Unit

Note

1

Max cutting thickness

8

mm

2

Max sheet width

4050

mm

3

Sheet strength

σb≤450

Mpa

4

Cutting angel

0.5-2.0°

5

Full travel times

11

r/min

6

Pressure holder

22

PC

7

Backgauge range

10~1000

mm

8

Power of main motor

15

Kw

9

Overall dimension

L

4680

mm

W

2080

mm

H

2200

mm

10

Weight

11100

Kg

4). List of Main Commercial Components

SIEMENS, Germany

9

Single/Double air switch

10

Button

SCHNEIDER , France

11

Proximity switch

CONTRINEX from Swiss

12

Power switch

Mingwei, Taiwan

13

Programmable controller

Omron

5). Main structure and features

HGSK series guillotine shears are new generation of shear after and technical is introduced from European.

1, Total European New Design,good Looking with specialty

2, Frame and upper beam are of metal welded structure, the right and left frames, worktable and hold-down beam are welded together to form an integer, with an integer rigidity.

3, The upper beam is able to move on the linear guide under the push of cylinder, to realize the shearing action.

4, Back gauge is moved with imported ball screw, guided by linear guide, driven by digital AC servo motor. High positioning-precision and stable speed for working.

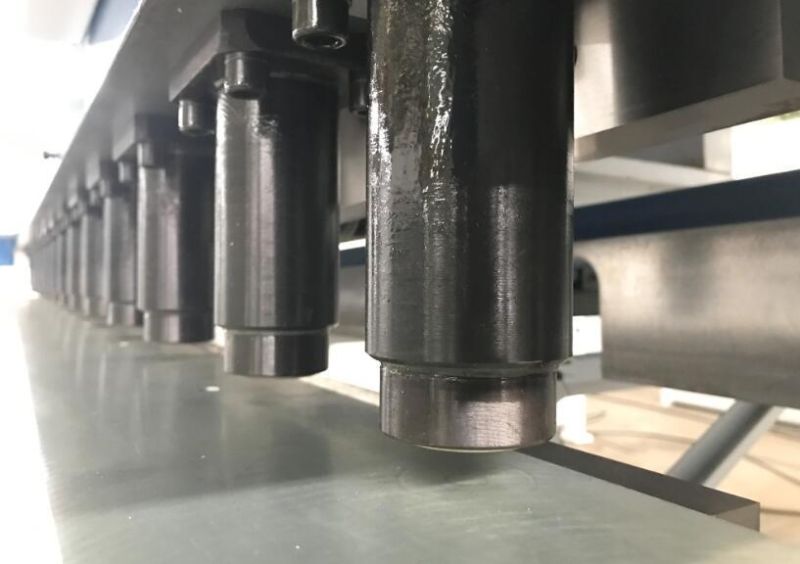

5, composed of a group of hold-down cylinders. Before upper beam going down, hold-down cylinder overcomes firstly the action of pulling spring to go down and press tightly sheet. After shearing the hold-down feet return up through the pull-force of pulling-spring.

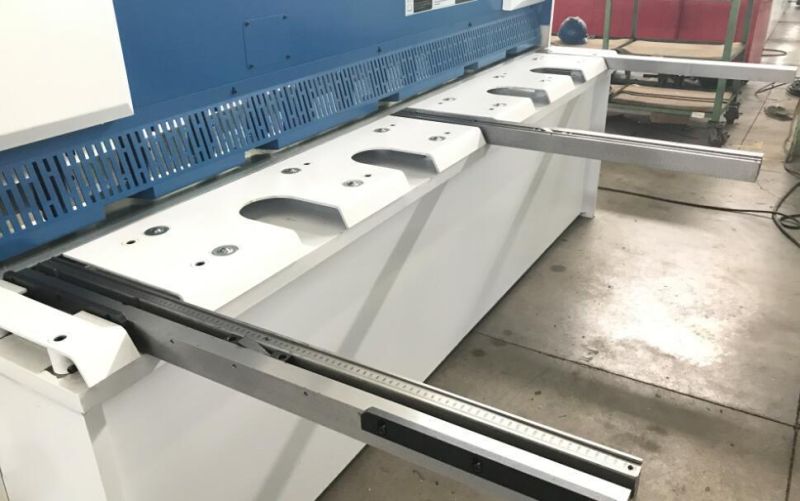

6, Three front supports are designed at the front of machine, for convenience to cut wide sheet, and two of them with rule for cutting longer sheet work piece

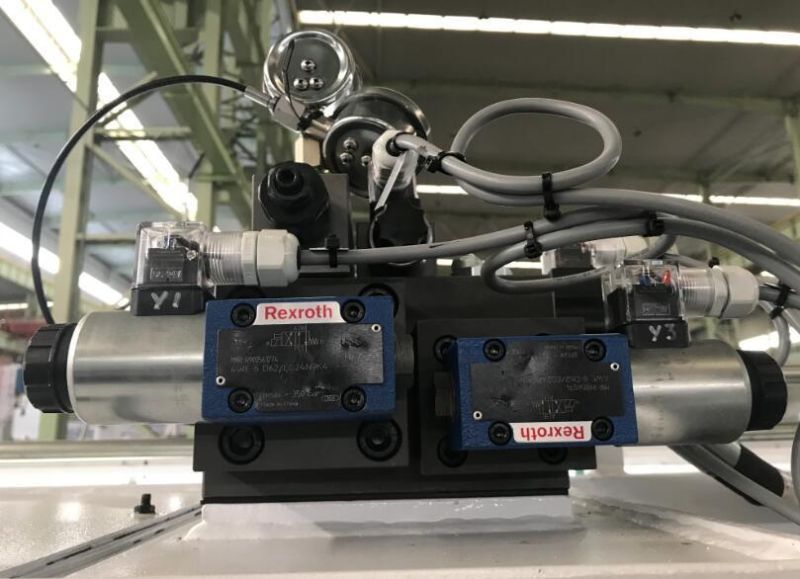

7, Adopt special hydraulic guillotine shears system from Rexroth top brand from Germany,pressure can be calculated automatically according to width and thickness of sheet plate

8, Hydraulic system is outfitted overload overflow protection,Oil level can be read or seen directly.,The machine is able to work continuously under rated load and hydraulic system shall have no any leakage, stable working, high precision positioning

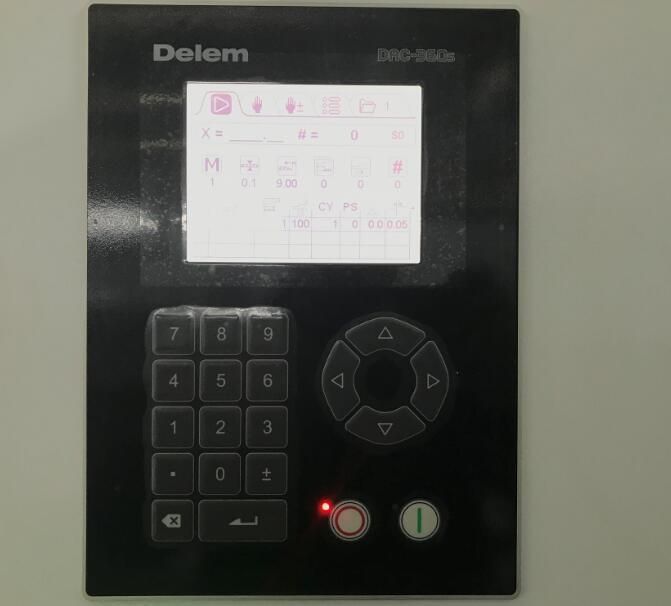

9, The CNC system is from DELEM DAC360, can realize adjustment of cutting angle, blade-gap cutting stroke and back gauge automatically.

10, Electrical components are imported or from Sino-Foreign Joint Venture, in accordance with International Standards, reliable safety, long life, good anti-interference ability.

11, Standard subsection blade with four edges.

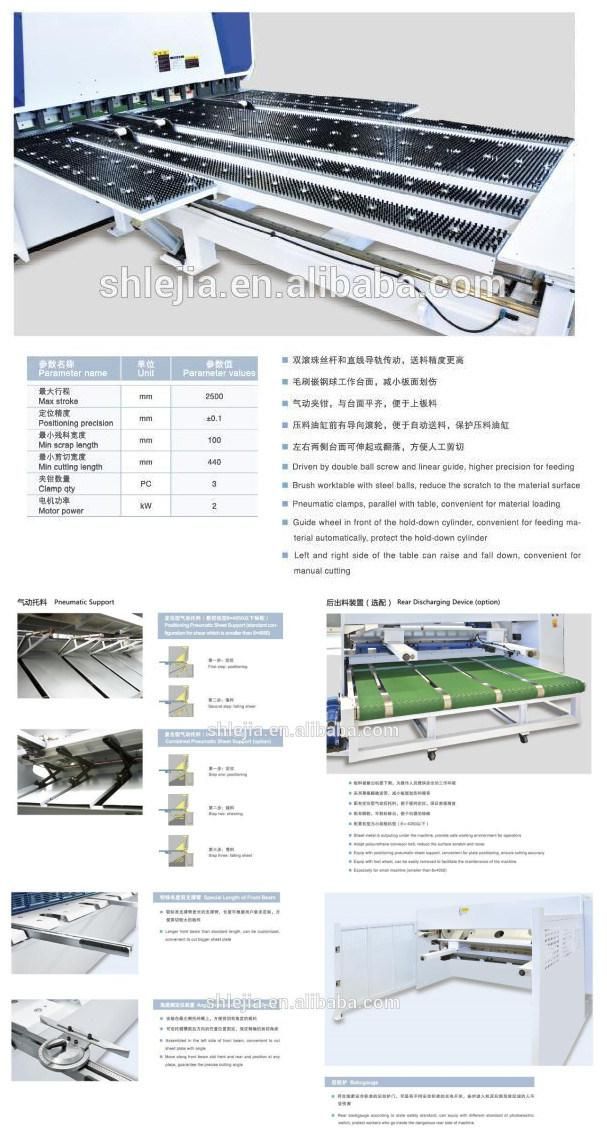

6). Optional parts:

7). Processing Equipment:

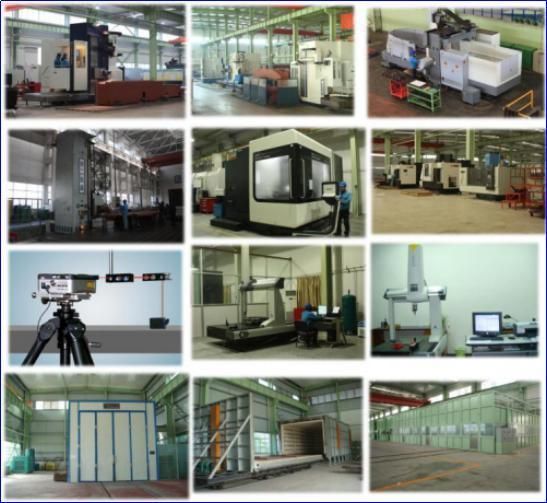

We has mainly advanced equipment and measuring device by about 300 sets, which meet the technical process requirement and ensure produce quality.
