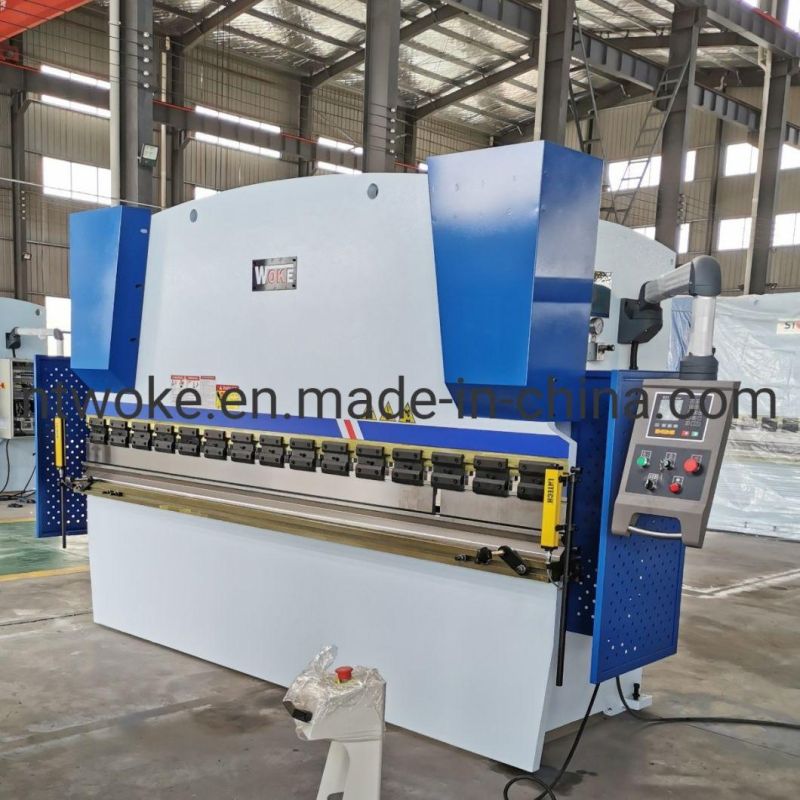

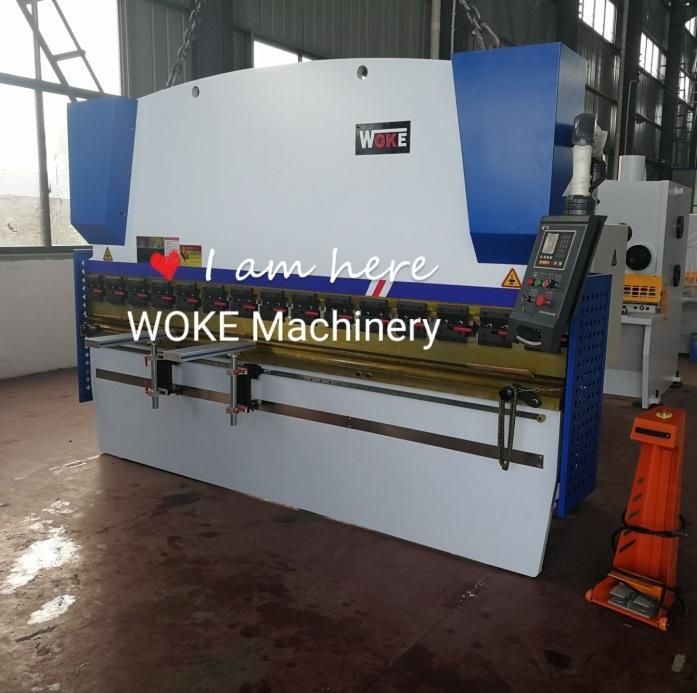

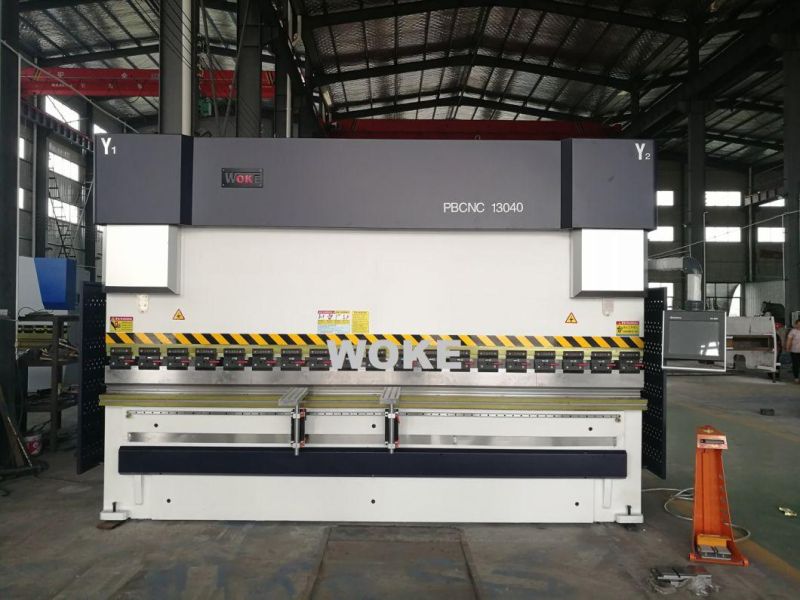

100 Ton Hydraulic Nc Press Break, Steel Plate Brake Press, Wc67ky Hydraulic Bending Machine
Nantong Woke Machinery Equipment Co., Ltd.- After-sales Service：Long Life
- Waterproof Rating：IPX-3
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2008, CE
- Automation：Automatic
Base Info
- Model NO.：WC67Y-100T,3200
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Press Brake
- Control System：Estun E21, Es10
- Control Axis：Y, X
- Power Supply：Customized as You Request
- Hydraulic System：Rexroth
- Auto Crowning：Option
- Processing Material：Stainless, Mild Steel, Aluminum, So on
- Machine Color：Customized
- Core Electrics：Famous Brand in World
- Voltage：220-450V
- Key Word：Press Brake Machine
- Transport Package：Nude Packing, Steel Pallet
- Specification：12CBM
- Trademark：WOKE
- Origin：Nantong, Jiangsu, China
- HS Code：8462299000
- Production Capacity：40PCS,Month
Description
» Synchronized positive stop design, and by Estun CNC programmable controller assuring accurate repeatability & ease of use.
» Integrated hydraulic system allowing rapid approach switching automatically to slow bend.
» Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
» Safe fence and the electric inter locker have bee designed for the machine to ensure the operation safety.
» The RAM is adopted hydraulic top-drive with two cylinders, working smoothly and stably.
» Mechanical stop nuts ensure stable and reliable positioning accuracy.
» The segmented punches of different length are adopted which can be combined into a certain
Length according to the processing demand to meet the different requirement of special workpieces.
» Back gauge is driven by linear guide way and ball screw, quick, convenient and accurate.
» The machine can be adopted with normal clamp devices or quick clamp as an option according to the customer's requirement to decrease the labors' work intension and increase the work efficiency.
TECHNICAL PARAMETERS
| Model | Nominal pressure | Worktable length | Distance between columns | Throat depth | Opening | Motor | Dimension(LXWXH) |
| Ton | mm | mm | mm | mm | Kw | mm | |
| 40T/1500 | 40 | 1500 | 1180 | 250 | 325 | 4 | 1850×1300×2100 |
| 40T/2000 | 40 | 2000 | 1550 | 250 | 325 | 4 | 2250×1300×2100 |
| 40T/2500 | 40 | 2500 | 2050 | 250 | 325 | 4 | 2750×1300×2100 |
| 63T/2500 | 63 | 2500 | 2050 | 250 | 360 | 5.5 | 2750×1350×2230 |
| 63T/3200 | 63 | 3200 | 2600 | 250 | 360 | 5.5 | 3450×1350×2230 |
| 80T/2500 | 80 | 2500 | 2050 | 320 | 380 | 7.5 | 2750×1400×2350 |
| 80T/3200 | 80 | 3200 | 2600 | 320 | 380 | 7.5 | 3450×1400×2350 |
| 100T/2500 | 100 | 2500 | 2050 | 320 | 380 | 7.5 | 2750×1450×2380 |
| 100T/3200 | 100 | 3200 | 2600 | 320 | 380 | 7.5 | 3450×1450×2380 |
| 100T/4000 | 100 | 4000 | 3200 | 320 | 380 | 7.5 | 4250×1450×2380 |
| 125T/2500 | 125 | 2500 | 2050 | 320 | 380 | 7.5 | 2750×1450×2380 |
| 125T/3200 | 125 | 3200 | 2600 | 320 | 380 | 7.5 | 3450×1450×2380 |
| 125T/4000 | 125 | 4000 | 3200 | 320 | 380 | 7.5 | 4250×1450×2380 |
| 160T/2500 | 160 | 2500 | 2050 | 320 | 380 | 11 | 2750×1700×2600 |
| 160T/3200 | 160 | 3200 | 2600 | 320 | 450 | 11 | 3450×1700×2600 |
| 160T/4000 | 160 | 4000 | 3200 | 320 | 450 | 11 | 4250×1700×2600 |
| 200T/3200 | 200 | 3200 | 2600 | 320 | 470 | 15 | 3450×1850×2860 |
| 200T/4000 | 200 | 4000 | 3200 | 320 | 470 | 15 | 4250×1870×2950 |
| 250T/3200 | 250 | 3200 | 2600 | 400 | 530 | 18.5 | 3450×1920×3050 |
| 250T/4000 | 250 | 4000 | 3200 | 400 | 530 | 18.5 | 4250×1950×3150 |
| 300T/3200 | 300 | 3200 | 2600 | 400 | 560 | 22 | 3450×2200×3130 |
| 300T/4000 | 300 | 4000 | 3200 | 400 | 560 | 22 | 4250×2250×3320 |
| 300T/6000 | 300 | 6000 | 4700 | 400 | 560 | 22 | 6100×2250×4250 |
| 400T/3200 | 400 | 3200 | 2600 | 400 | 640 | 30 | 3200×2280×3250 |
| 400T/4000 | 400 | 4000 | 3200 | 400 | 640 | 30 | 4000×2300×3600 |
| 400T/6000 | 400 | 6000 | 4700 | 400 | 640 | 30 | 6000×2350×4650 |
| 500T/6000 | 500 | 6000 | 4700 | 400 | 640 | 37 | 6000×2450×4700 |
| 600T/6000 | 600 | 6000 | 4700 | 460 | 650 | 45 | 6000×2700×5710 |

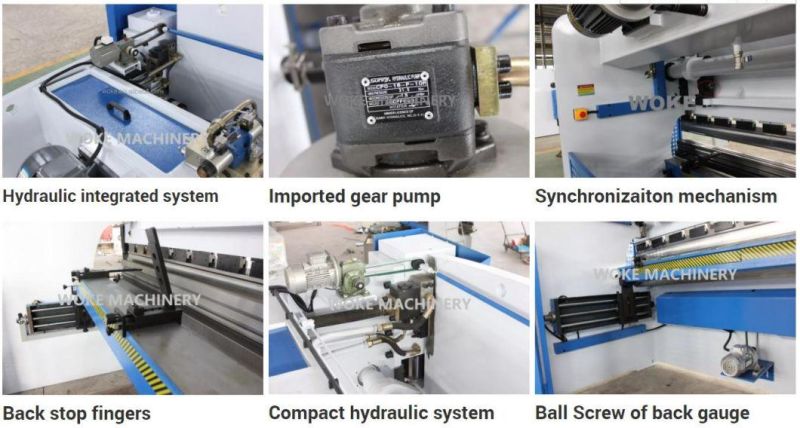

FRODUCT CONFIGURATION
PRESS BRAKE MACHINE DESIGN IS CUSTOMIZED
WOKE MACHINERY SUPPLY RANGE
