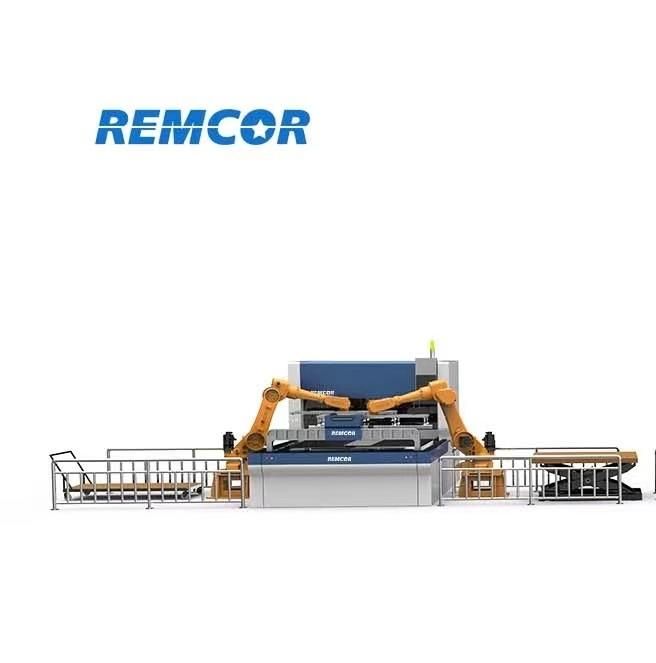

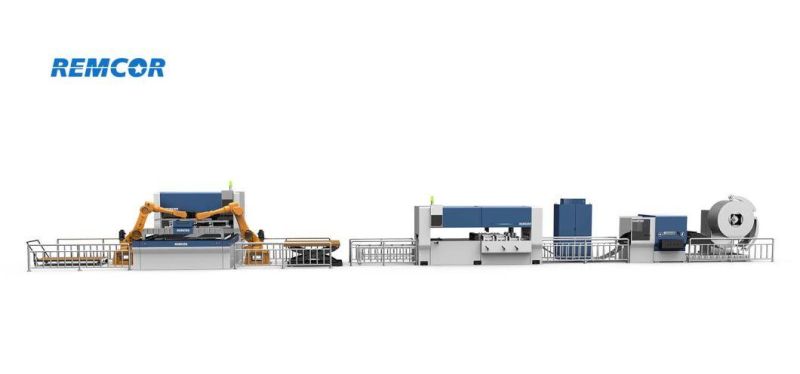

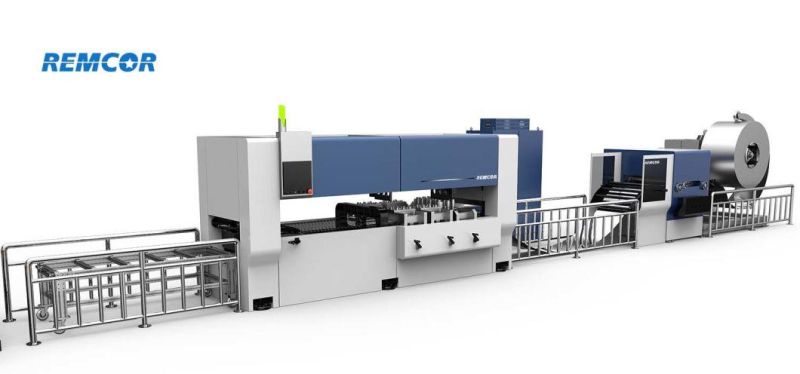

Salvagnini Type Automatic Panel Bender for Thin Coil Sheet Metal
Wuhan Remcor Technology Co., Ltd.- After-sales Service：on-Line Service
- Waterproof Rating：IPX-3
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Automatic
Base Info
- Model NO.：N1500&2200&2500
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Beading Machine
- Transport Package：Wooden Packing
- Trademark：remcor
- Origin：China
- HS Code：84624900
- Production Capacity：1000sets,Year
Description
Bending machine parameters(Remark:Parameters can be customized )
| Bending range | 400-2200mm |
| Width Range | 300-1000mm |
| Bending height | 150mm |
| Four sides minimum size | 300X400mm |
| Fastest continuous bending speed | 0.5s |
| Upper/under knife distance | 150mm |
| Rotary max. diagonal line | 2350mm |
| Bending angle | 0-180° |
| Bending force | 500KN |
| CNC System | SYNTEC |
| Operating software | Self-Developed & free upgrade |
| NC Axis | 10 Axis |
Main Parts brands
| Pneumatic parts and cylinders | AIRTAC or SMC |
| Vacuum Panel | SMC |
| Guider and lead screw | HIWIN |
| Bearings | NSK |
| Reducer | DOMESITC |
| Editable program | syntec |
| Invertor | syntec |
| Electric components | snd |
| Relay | snd |
| Sensor | Panasonic |
| AC contactor | snd |
| Servo | syntec |
