• Model NO.：HCT-1245WZ
• Type：Cnc Bending Machine
• Wire Size Range：1.2-4.5mm
• Total Axis：12 Axis
• Servo Motor Brand：Yaskawa
• Feeding Roller Pairs：3 Pairs
• Max Outside Diameter：Φ120mm
• Spring Index：4
• Max Feeding Speed：120m,Min
• Dimension：L2700mm*W2000mm*H1900mm
• Weight：5000kg
• Quill Motor：1.3kw
• Forming Motor：1.8kw*8
• Feeding Motor：4.4kw
• Spinner Motor：1.0kw

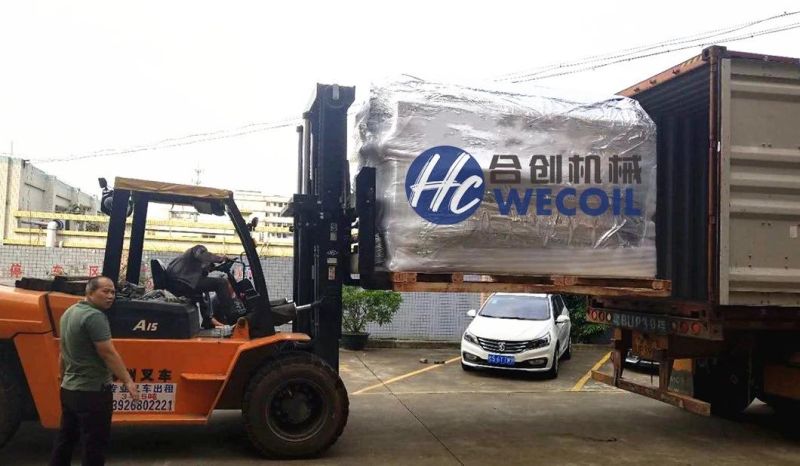

• Transport Package：Vacuum Packaging
• Specification：L2700mm*W2000*H1900mm
• Trademark：WECOIL
• Origin：China
• HS Code：8463300000
• Production Capacity：500 Sets

Basic Info.

Model NO. HCT-1245WZ Type Cnc Bending Machine Wire Size Range 1.2-4.5mm Total Axis 12 Axis Servo Motor Brand Yaskawa Feeding Roller Pairs 3 Pairs Max Outside Diameter Φ120mm Spring Index 4 Max Feeding Speed 120m/Min Dimension L2700mm*W2000mm*H1900mm Weight 5000kg Quill Motor 1.3kw Forming Motor 1.8kw*8 Feeding Motor 4.4kw Spinner Motor 1.0kw Transport Package Vacuum Packaging Specification L2700mm*W2000*H1900mm Trademark WECOIL Origin China HS Code 8463300000 Production Capacity 500 Sets

Product Description

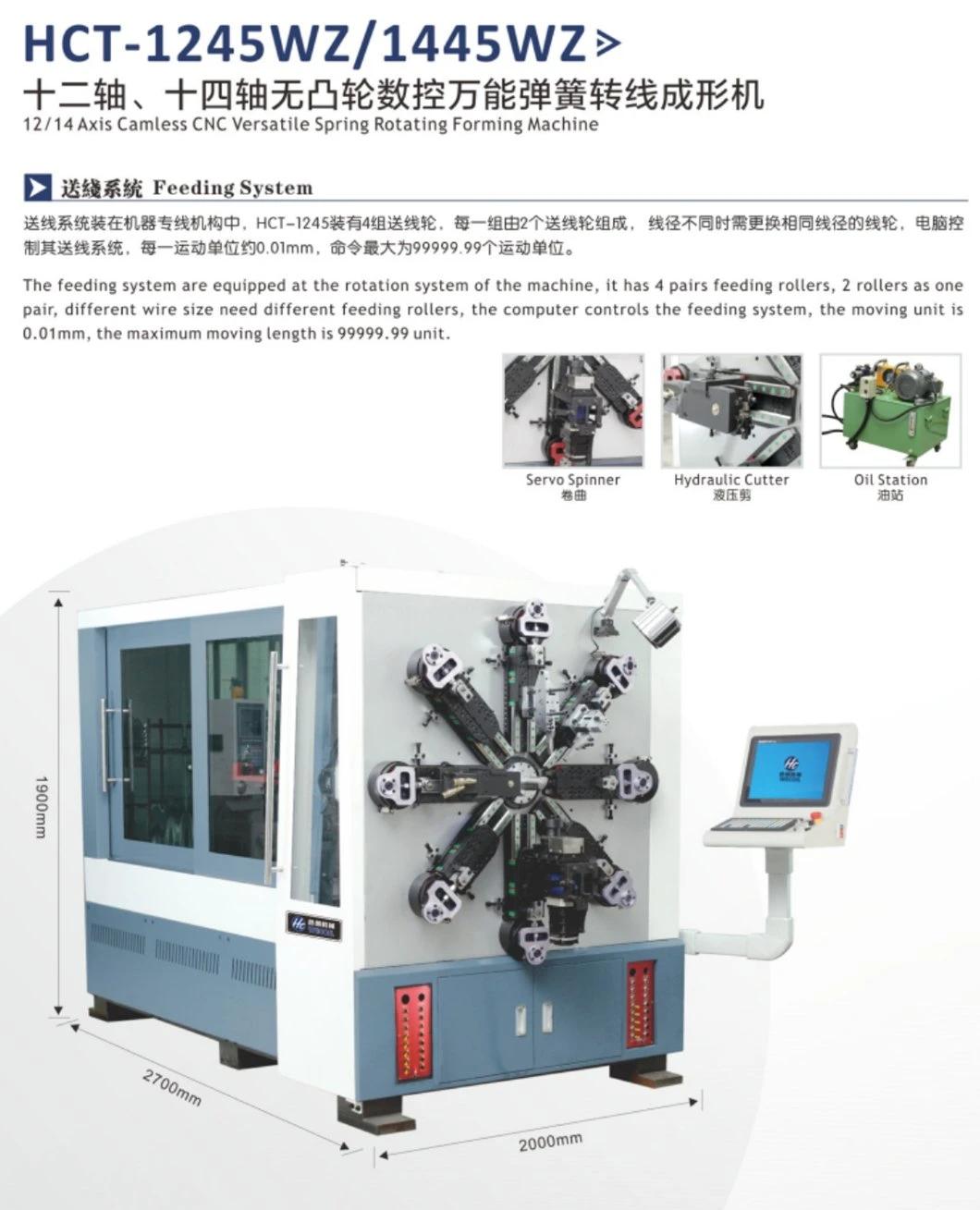

The feeding system are equipped at the rotation system of the machine, it has 4 pairs feeding rollers, 2 rollers as one pair, different wire size need different feeding rollers, the computer controls the feeding system, the moving unit is 0.01mm, the maximum moving length is 99999.99 unit.

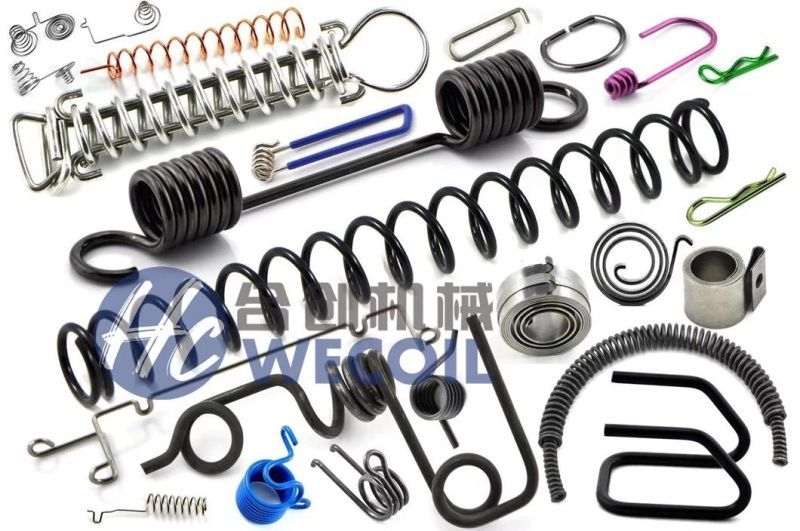

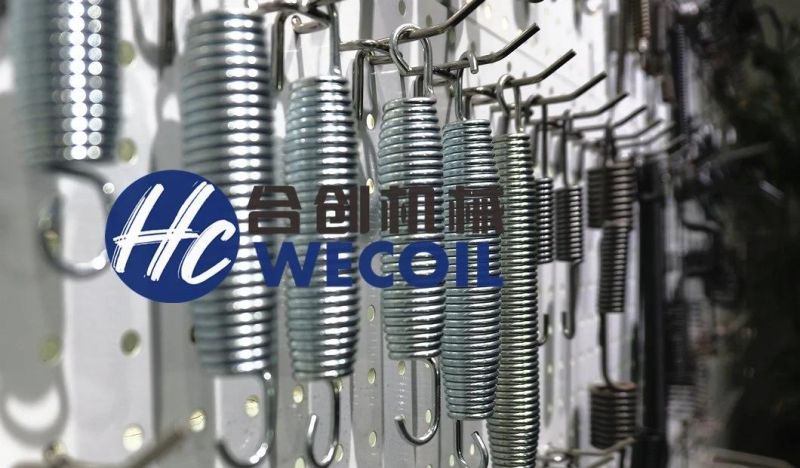

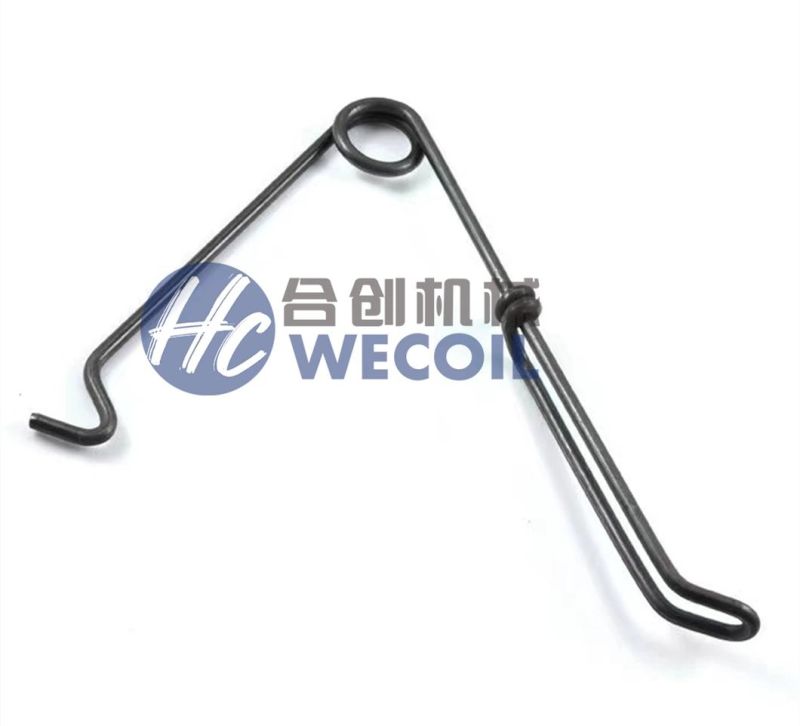

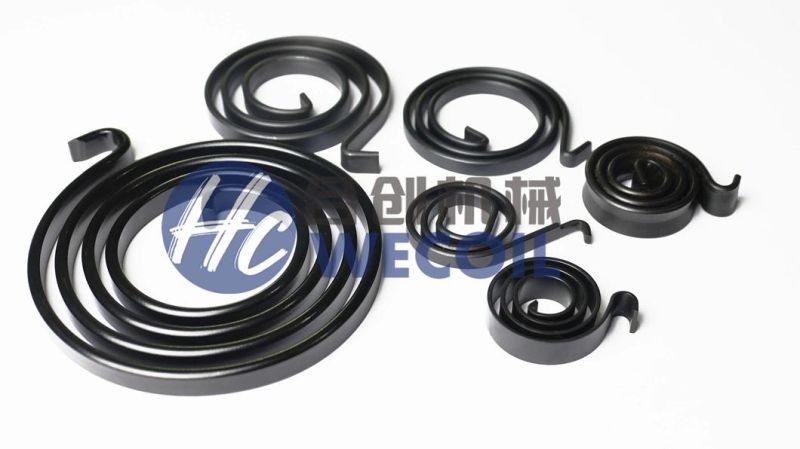

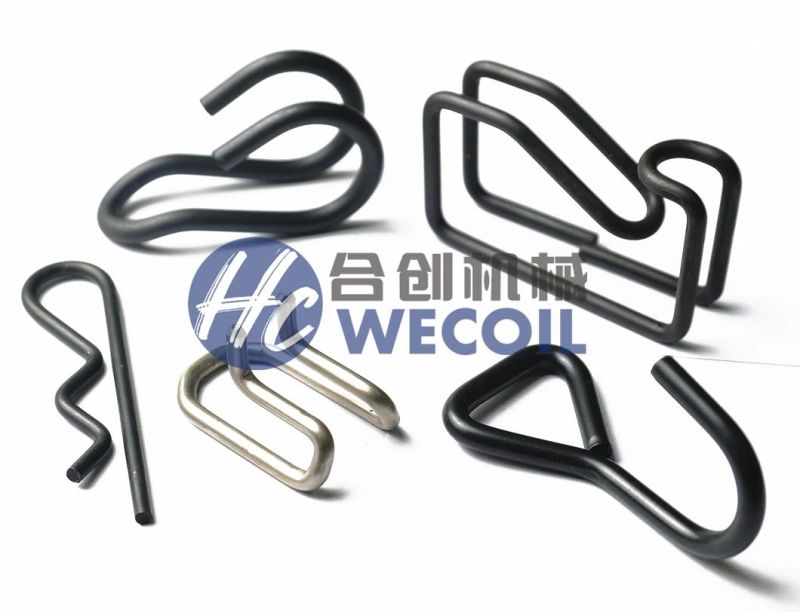

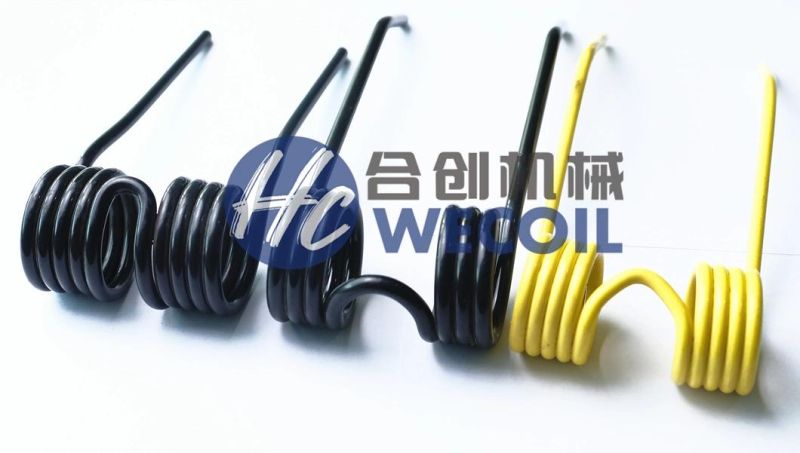

HCT-1245WZ 12 axis Camless CNC Versatile Spring Rotating Forming Machine, is composed by Taiwan computer system and Japan servo motor special designed with no rocker arm and camless, the slide base is separately controlled by eight servo motor, Feeding axis, Quill rotating axis, Wire rotating axis and Spinner axis. It composed of crank connecting link system, feeding and rotating system, coiling straightening system and quill system. It can install the device of hydraulic pressure scissors, low noise; the damage is zero on mandrel and machine. It is suitable for making kinds of tension spring, torsion spring, compression spring, scroll spring, tower spring, flat wire spring and such highly difficult springs. Largely increased the spring making range, it is precise, stable and easy to operate.

The crank connecting link system are include eight knife rest, eight knife rest are separately  driven by eight Yaskawa servo motor through VRB reducer, no influence from each other, make the spring forming handy and easy. Controlled the feeding and wire rotation system synchronous through CNC program, at the same time the feeding accuracy can be reach within 0.1mm during wire rotation.
