Cutting & Fold-bend Machine

8mmx4000mm CNC Hidraulic Metal Plate Bending Machine

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • After-sales Service:2 Years
  • Waterproof Rating:IPX-8
  • Warranty:2-year
  • Condition:New
  • Certification:ISO 9001:2000, CE
  • Automation:Automatic

Base Info

  • Model NO.:HPB 200T4000
  • Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet
  • Type:Press Brake
  • CNC System:Delem Da58t
  • Axes:Y1, Y2, R and Automatic Crowning
  • Max Bending Length:4000mm
  • Max Bending Thickness:10mm for 4m Sheet
  • Weight:13000kg
  • Backgauge:600mm Distance, Ball Screw and Linear Guide Rail
  • Main Motor:Servo Motor
  • Main Motor Power:15kw
  • Main Electrical Components:Schneider
  • Hydraulic System:Bosch-Rexroth
  • Servo Drive:Japan Yaskawa
  • Grating Ruler:Italy Givi
  • Transport Package:20ot
  • Specification:4600X1950X3010mm
  • Trademark:LZK
  • Origin:China
  • HS Code:8462219000
  • Production Capacity:100 Sets,Month

Description

The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.

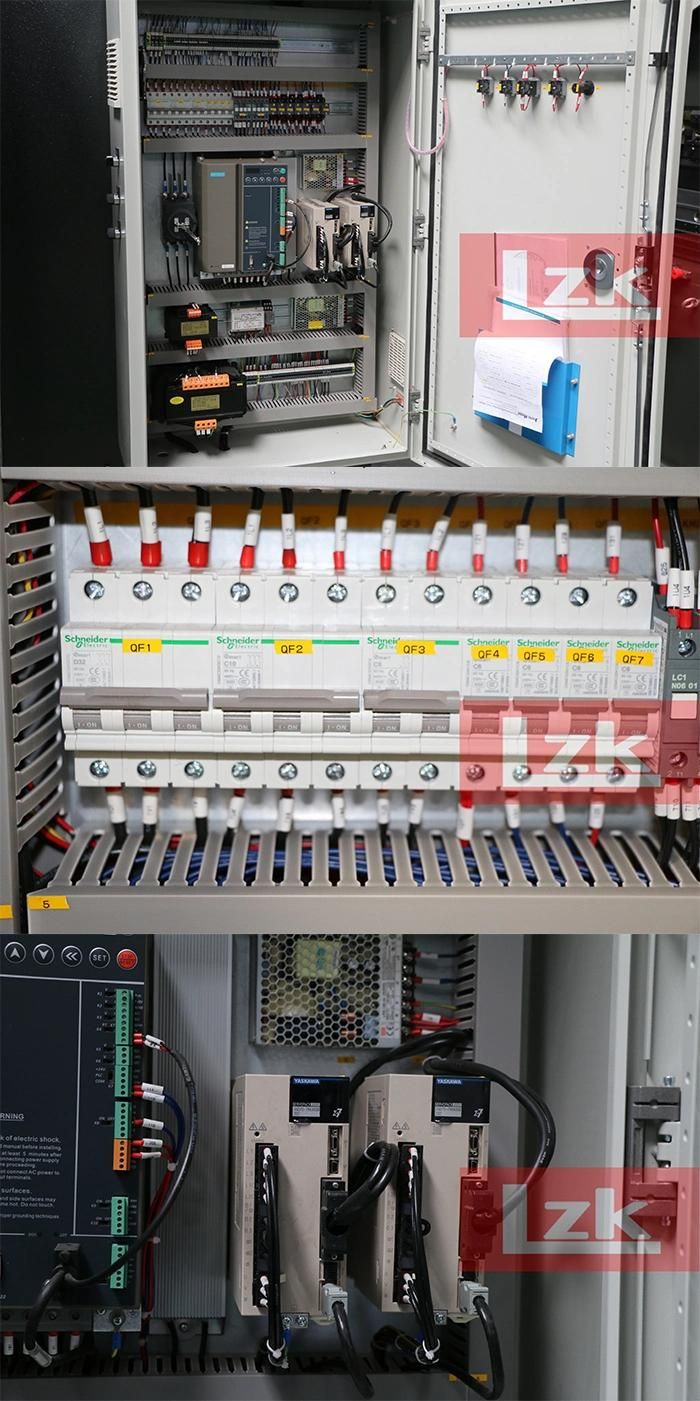

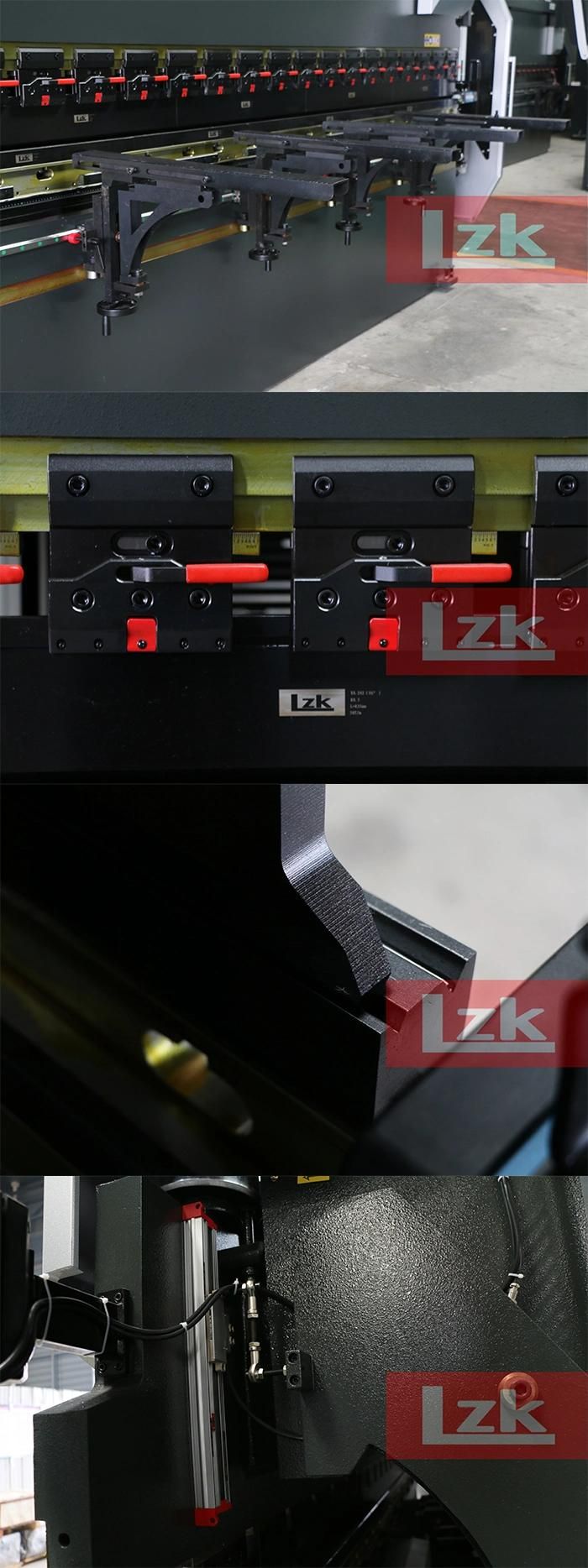

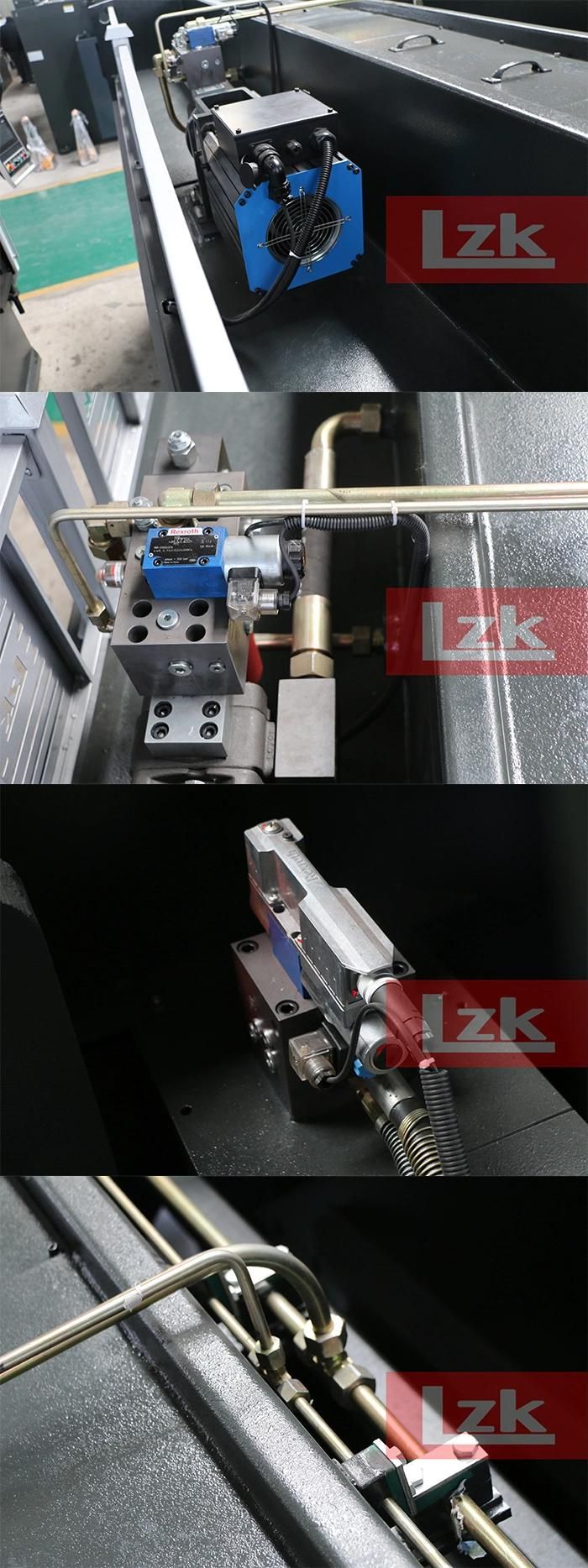

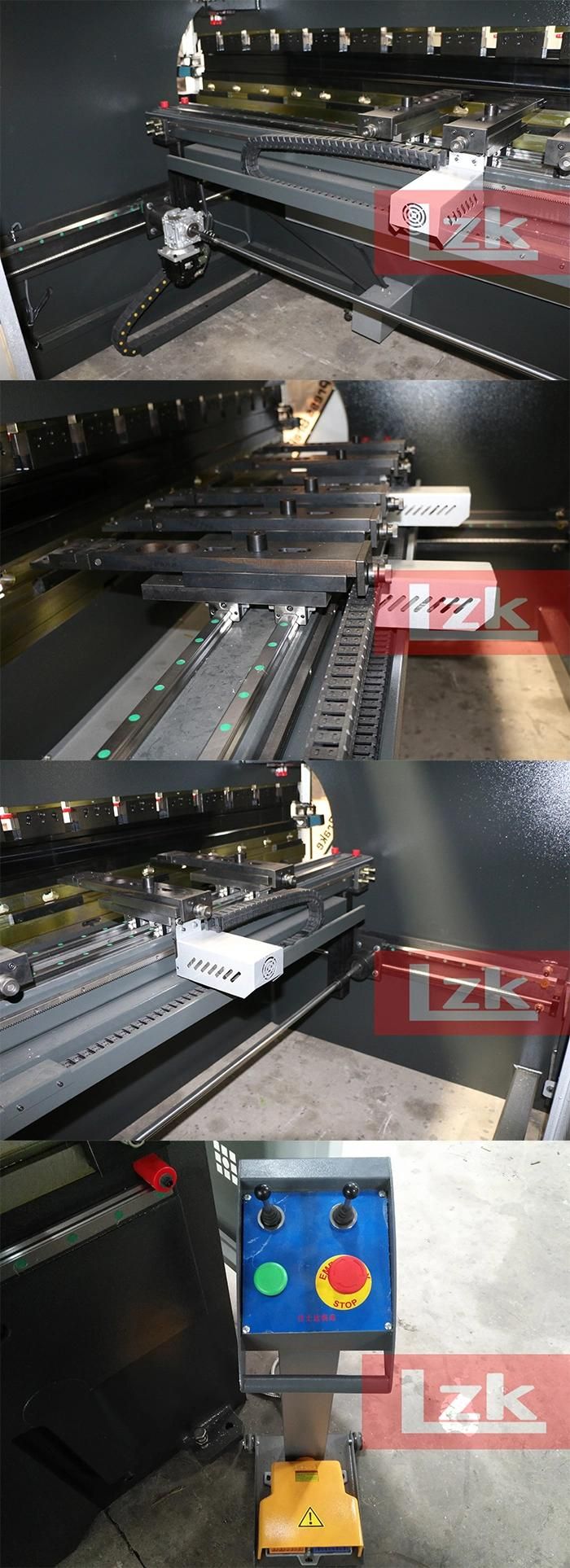

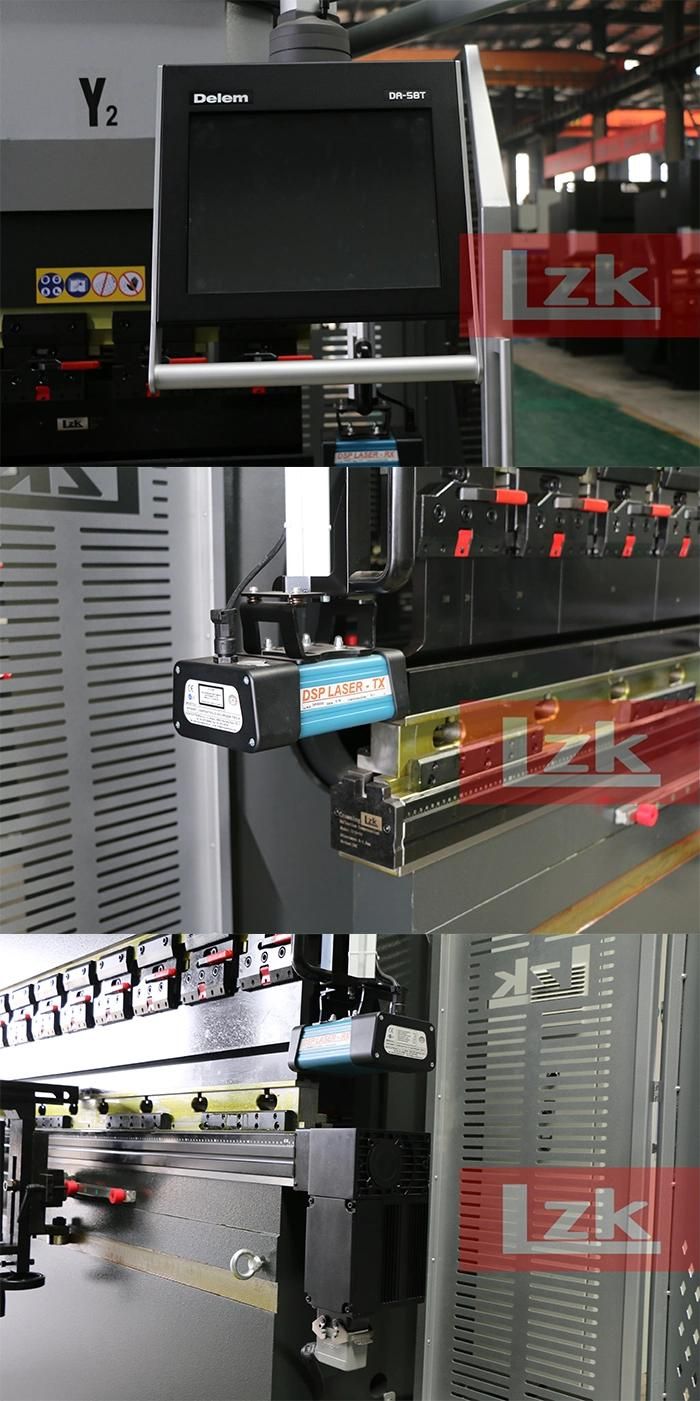

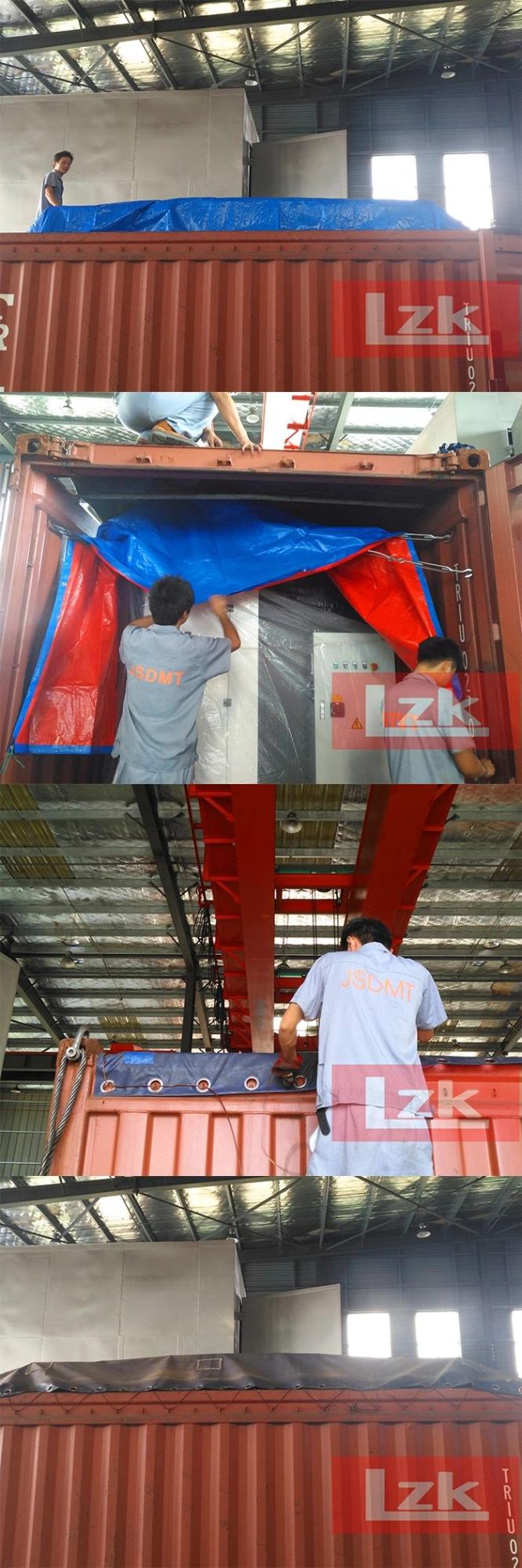

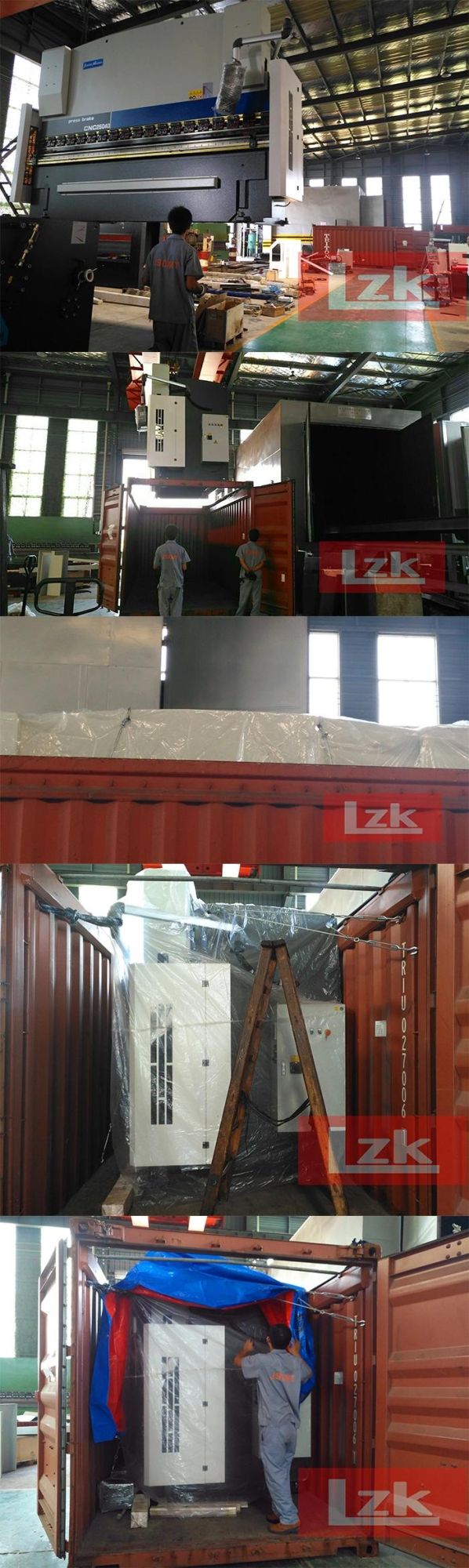

Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.8mmx4000mm CNC Hidraulic Metal Plate Bending MachineDELEM DA58T CNC control systemItaly DSP Laser ProtectionAutomatic crowning table for high bending straightness8mmx4000mm CNC Hidraulic Metal Plate Bending MachineSliding Front Support ArmsQuick Calmp, Easy Tool Changing. Overall quenching process tool, high hardness and good wear resistance, with material of 42CrMoItaly GIVI Grating Ruler 8mmx4000mm CNC Hidraulic Metal Plate Bending MachineMain Schneider Electrics ComponentsJapan YASKAWA Servo Drive8mmx4000mm CNC Hidraulic Metal Plate Bending MachineBackgauge with Servo MotorDouble Guide RailsZ1, Z2 axes are electrically controlled by the two black handle on the foot pedal 8mmx4000mm CNC Hidraulic Metal Plate Bending MachineEnergy saving type Servo Main Motor maintains high speed, long life and accuracyBosch Rexroth Hydraulic SystemNice Pipe ConnectionMachine loading process with 20OT
8mmx4000mm CNC Hidraulic Metal Plate Bending Machine
8mmx4000mm CNC Hidraulic Metal Plate Bending Machine



Our press brakes work well in customer's workshop

8mmx4000mm CNC Hidraulic Metal Plate Bending MachineGerman Customer8mmx4000mm CNC Hidraulic Metal Plate Bending MachineRussia Customer, manufacturer of Yacht

Customer come from different countries for cooperation and inspection

8mmx4000mm CNC Hidraulic Metal Plate Bending Machine
8mmx4000mm CNC Hidraulic Metal Plate Bending Machine
