• Model NO.：BWZ-S
• Type：Coiling Bending Machine
• Key Words：Channel Letter Bender Machine
• Function：Automatic Feeding, Slotting and Bending
• Applicable Material Alu=Aluminum：Flat Aluminum Stainless Steel
• Max Material Width：120mm
• Max Material Thickness：1.2mm
• Slotting System：Motor Control
• Air Pressure：0.6MPa
• File Format：Dxf, Ai, Plt
• Products Name：CNC Manual Channel Letter Bender Machine
• Transport Package：Plywood Case Package
• Specification：CE, SGS, TUV
• Trademark：BaoYuanTong
• Origin：Weifang, China
• HS Code：8479819000
• Production Capacity：200sets,Month

Basic Info.

Model NO. BWZ-S Type Coiling Bending Machine Key Words Channel Letter Bender Machine Function Automatic Feeding, Slotting and Bending Applicable Material Alu=Aluminum Flat Aluminum Stainless Steel Max Material Width 120mm Max Material Thickness 1.2mm Slotting System Motor Control Air Pressure 0.6MPa File Format Dxf, Ai, Plt Products Name CNC Manual Channel Letter Bender Machine Transport Package Plywood Case Package Specification CE, SGS, TUV Trademark BaoYuanTong Origin Weifang, China HS Code 8479819000 Production Capacity 200sets/Month

Product Description

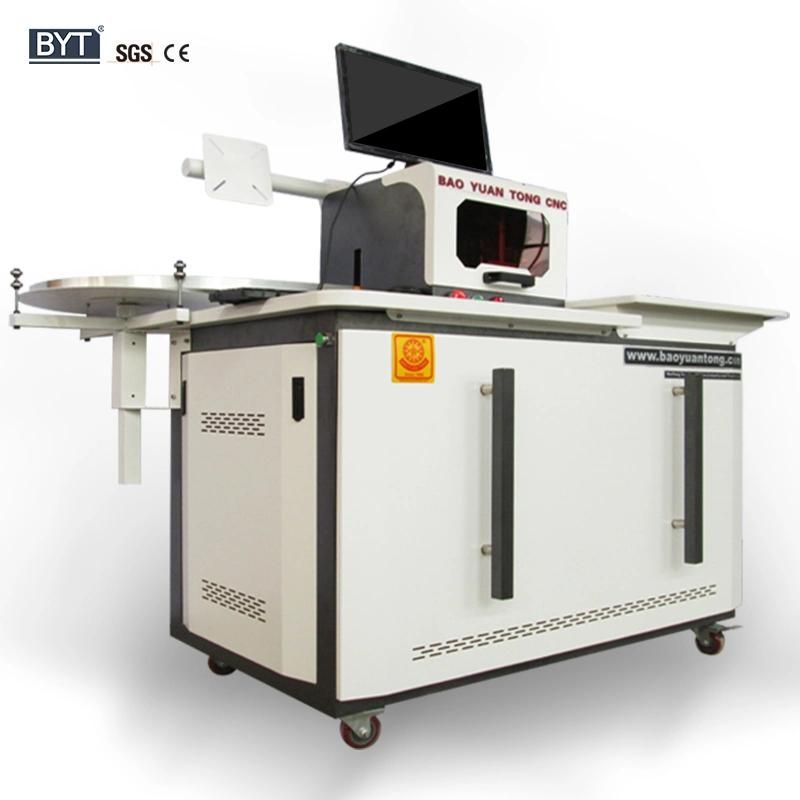

BWZ-S Automatic Flat Aluminum SS Channel Letter Bending Machine
Product Description



Application:
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to do the luminous characters for the shops,it needs to use the channel letter bending machine to make the production. This channel letter bending machine can process flat metal material ,like the stainless steel , aluminum alloy and galvanized iron  and does not damage the material. The processing precision is high and the speed is fast. The material thickness and tool adjustments are all adjusted by software, more convenient and faster.

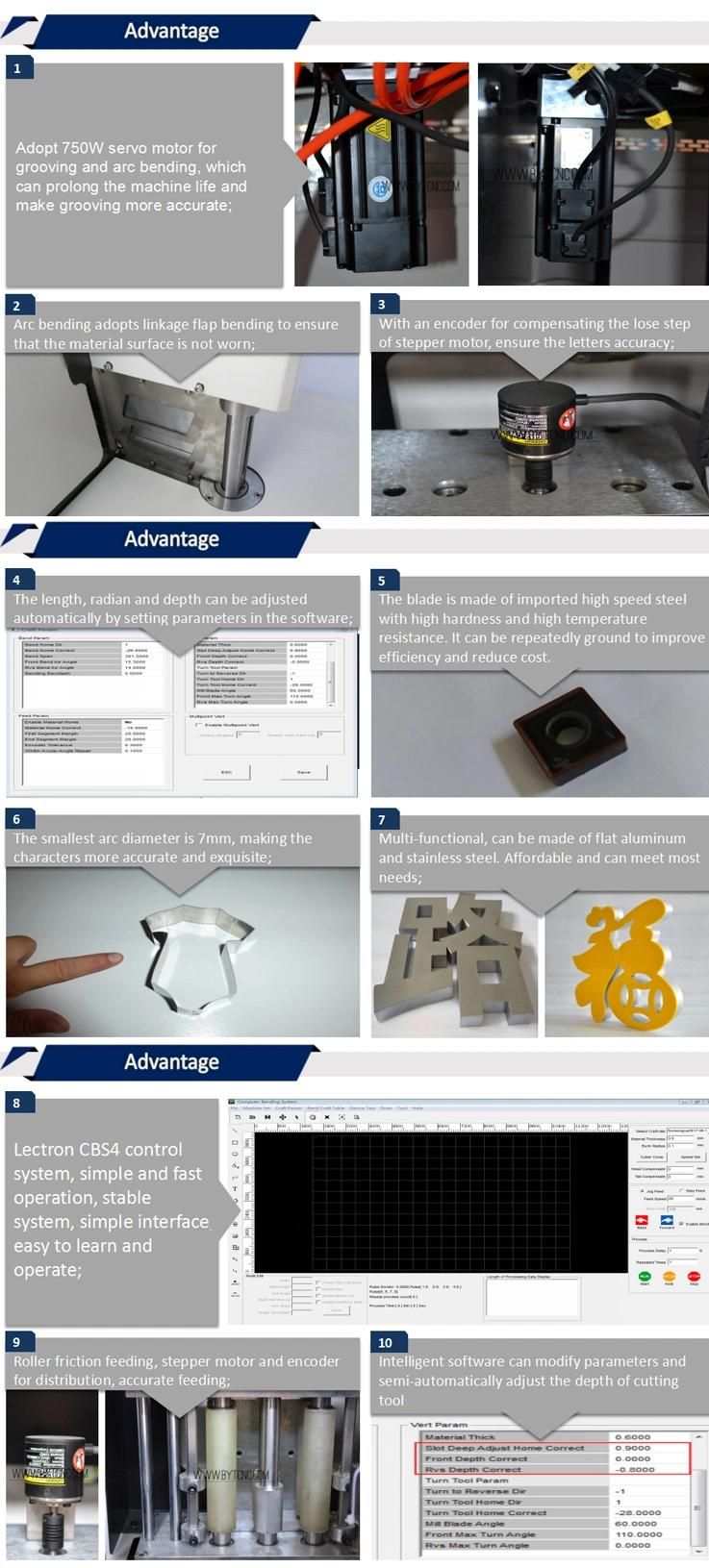

Whole machine feature:1.Adopt 750W servo motor for grooving and arc bending, which can prolong the machine life and make grooving more accurate;2. Arc bending adopts linkage flap bending to ensure that the material surface is not worn;
3.With an encoder for compensating the lose step of stepper motor, ensure the letters accuracy;
4. The length, radian and depth can be adjusted automatically by setting parameters in the software;
5. The blade is made of imported high speed steel with high hardness and high temperature resistance. It can be repeatedly ground to improve efficiency and reduce cost.
6. The smallest arc diameter is 7mm, making the characters more accurate and exquisite;
7. Multi-functional, can be made of flat aluminum and stainless steel. Affordable and can meet most needs;
8. Lectron CBS4 control system, simple and fast operation, stable system, simple interface, easy to learn and operate;
9. Roller friction feeding, stepper motor and encoder for distribution, accurate feeding;
10.Intelligent software can modify parameters and semi-automatically adjust the depth of cutting tool
 Multifunction automatic cnc manual channel letter bender machine for stainless steel letters bending



Technical data:

Model	BWZ-S
Function	Automatic feeding,slotting and bending
Applicable Material	Stainless steel,Aluminum,Galvanized,Iron
Material Width	Flat Aluminum:≤120mm Stainless Steel:≤100mm
Material Thickness	Stainless Steel:0.3~1.0mm Flat Aluminum:0.3~1.2mm
Min-Bend Radius	7mm
Feeding	Feeding wheel+Encoder
Slot Motor	Servo Motor
Bending	Servo motor,coupled flap
Control System	Leetro CBS4
Power	≤1000W
Air Pressure	0.6MPa
File Format	dxf, ai,plt
Working Voltage	220V/ 50-60HZ/1P
Net Weight(kgs)	270
Overall Size(mm)(L*W*H)	1580*870*1450

Why Choose Us
BYT CNC Automatic 3D Channel letter bending machine for advertising acrylic led sign aluminum profile coil trim bender tools
 Company Experience
1.Founded in 1996, with registered trademarks "BAOYUANTONG" and "BYT".
2.Own more than 30 patents for invention, utility model and design.
3.Passed the "SGS certification" for 9 consecutive years, and all products have obtained the " Europe CE certification"
4.Exported to over 150 countries including the North America, Europe, South America, the Middle East,and have more than 2000 clients.
5.Provide one-stop procurement ,let customer's purchase more efficient and safety.
6.According the customer different requirements ,provide equipment customized solved plan and sample making .
Sales Service
1.Technical people have professional english ability and directly with customer communication.
2.24H/7D on line service , when you need we all will be here .
3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers.
5.For the products making , have professional technical engineer provide process guide .
Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time.
3.Via teamviewer remote control software to provide on line guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if customer needed.

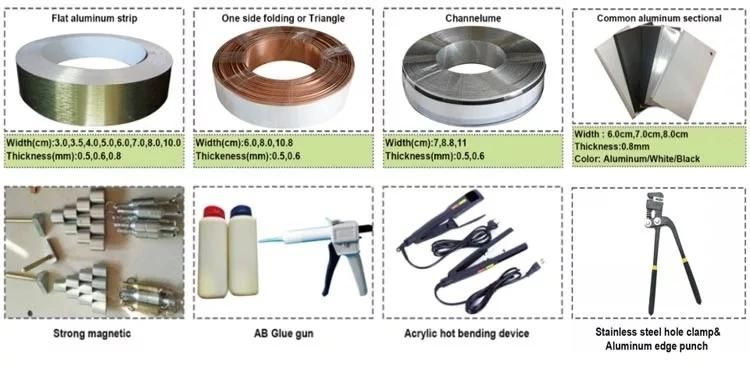

Optional parts
1) Aluminum profiles : We have different type and color aluminum profiles for choose ,when you need I give you quotation sheet.
2) Computer : When this machine working ,there is control card need install in a computer . For control system no limited .
3) Compressor : Need 0.3-0.6Mpa Air compressor working .


Feedback
Our responsibility -- provide stable and reliable performance of the equipment and provide high-quality service, let every user satisfaction. (Click the picture ,listen user's voice)

BYT CNC Automatic 3D Channel letter bending machine for advertising acrylic led sign aluminum profile coil trim bender tools
Package and delivery
1.After the completion of machinery production, the factory inspectors shall check and put the equipment into storage.Before the delivery of the equipment, the after-sales engineer shall conduct secondary inspection and ensure the quality of the machine meets the customer's requirements
2.Clean the whole machinery , protect the parts that need oil, and check the related parts again .
3. Anti-collision package edge: All parts of the machine are covered with some soft materials.
Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4. Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time and money.

FAQ

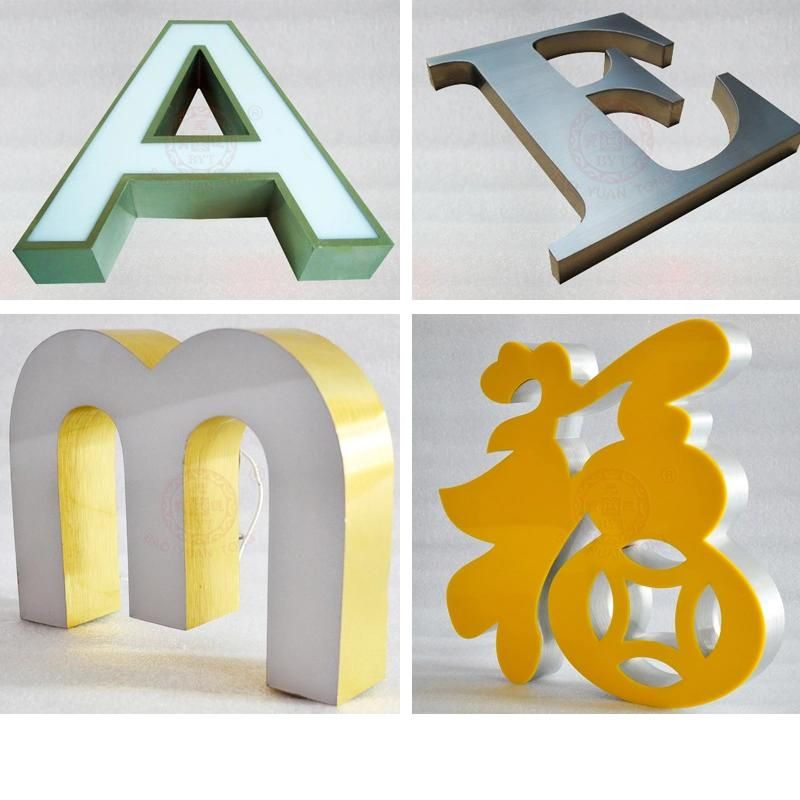

1. What is Channel letter bending machine?
Introduction of the machine: mainly produces metal 3D letters and light boxes
2. How to choose a suitable Letter bending machine?
1) According to local needs,which letters are more popular, aluminum alloy or stainless steel letters.
2) If the budget is less than 5000$, then you can choose aluminum letter bending machine
More than 5000$, consider multifunctional one
3. What are the functions of the Letter bending machine?
It with automatic feeding, slotting, and bending functions, high precision and save labor cost
4. What are the functions of the Letter bending machine?
Together with the machine ,there is detail english install and operate manual &&video, meantime before you get this machine ,our service engineer will contact with you in advance, all questions you can contact with them in anytime.
5.What is the type of shipping and producing time ?
We offer EXW,FOB ,CIF ,DDU and DDP which you can choose as you like .
When you pay for the deposit , We will arrange producing which about 7-15days delivery .
