10X3200mm QC12K Steel Sheet Hydraulic Swing Beam Shearing Machine

Nantong Woke Machinery Equipment Co., Ltd.
  • After-sales Service：Provided
  • Automation：Automatic
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Warranty：2 Years
  • Main Motor：11kw

Base Info

  • Model NO.：QC12Y-10x3200
  • Control System：Estun E21s Nc
  • Cutting Thickness：10mm
  • Cutting Length：3200mm
  • Precision：High Precision

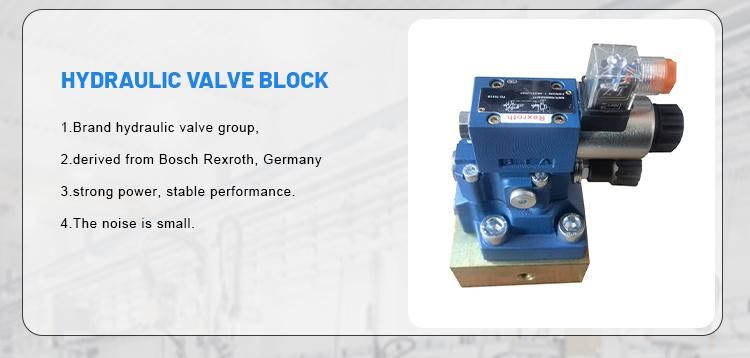

  • Hydraulic Valve：Germany Rexroth
  • Back Gauge：0-600mm
  • Cutting Angle：Adjustable
  • Transport Package：Nude Packing, Steel Pallet
  • Specification：3900x1750x1800mm
  • Trademark：WOKE
  • Origin：Nantong, Jiangsu, China
  • HS Code：8462399000
  • Production Capacity：40PCS,Month

Description

1.Come with world famous Estun E21s NC control system, stable performance and easy to operate.
2.Steel welded structure, vibration aging treatment to eliminate internal forces, have high strength and good durability.
3.Advanced integrated hydraulic system, easy for maintenance.
4.The shear stroke and cut times can be controlled.

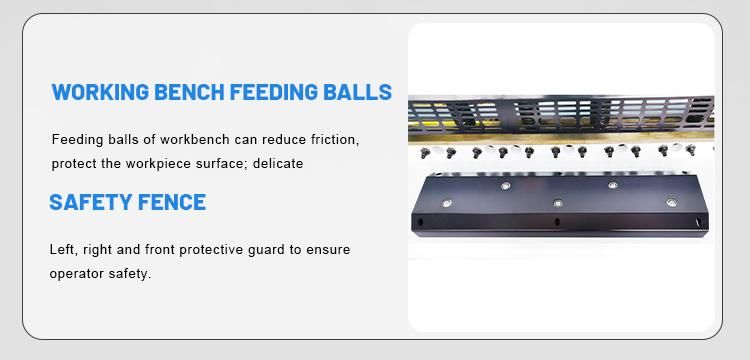

5.Feeding balls on worktable to reduce the hurt of the plates and reduce conflict force.
6.Manual adjusting of blade clearance and adjustment of gap can be showed on an indicating dial.
7.The blade is of 4 cutting edges, that mean you can change the cutting edge if long time use.

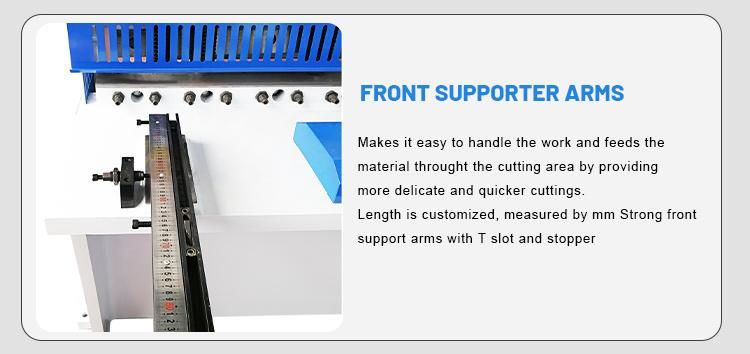

8. Front supprt arms with scale and standard protective guard, meet with internationl safety standard. TECHNICAL PARAMETERS
ModelCutting ThicknessCutting LengthCutting AngleStrengthStrokesMain Power
 (mm)(mm)(°)(KN/CM)(spm)(kw)
QC11Y-4X1500420000.5°~1.5°≤450205.5
QC11Y-4X2500425000.5°~1.5°≤450185.5
QC11Y-4X3200432000.5°~1.5°≤450147.5
QC11Y-4X4000440000.5°~1.5°≤450107.5
QC11Y-6X6000660000.5°~2.0°≤4502011
QC11Y-6X2500625000.5°~1.5°≤450177.5
QC11Y-6X3200632000.5°~1.5°≤450147.5
QC11Y-6X4000640000.5°~2.0°≤450107.5
QC11Y-8X2500825000.5°~2°≤4501411
QC11Y-8X3200832000.5°~2°≤4501011
QC11Y-8X4000840000.5°~2°≤450811
QC11Y-10X25001025000.5°~2°≤4501211
QC11Y-10X32001032000.5°~2°≤4501011
QC11Y-10X40001040000.5°~2°≤450811
QC11Y-12X15001215000.5°~2°≤4501415
QC11Y-12X25001225000.5°~2°≤4501015
QC11Y-12X32001232000.5°~2°≤4501022
QC11Y-12X40001240000.5°~2°≤450722
QC11Y-12X60001260000.5°~2°≤4501022
QC11Y-16X25001625000.5°~2°≤450822
QC11Y-16X32001632000.5°~2°≤450722
QC11Y-16X40001640000.5°~2°≤450622
QC11Y-16x60001660000.5°~2°≤450637
QC11Y-20X25002025000.5°~2°≤450630
QC11Y-20X32002032000.5°~2°≤450530
QC11Y-20X40002040000.5°~2°≤450530
QC11Y-25X25002525000.5°~2°≤450537
QC11Y-25X32002532000.5°~2°≤450537
QC11Y-30X25003025000.5°~2°≤450445
QC11Y-30X32003032000.5°~2°≤450445
