• Model NO.：ONEJT50-IRB4600
• Power Source：Electric
• Style：Robot
• Type：6 Axis
• Maxi Bearing Pressure：420MPa,60000psi
• Working Diameter：3000X1500mm
• Main Motor：Siemens
• PLC：Siemens
• Servos：Yaskawa
• Soft Starter：Siemens
• Pressure Adjustable：0-380MPa
• Guid Linear and Ball Screw：Hiwin&Tbi
• Cutting Accuracy：0.1mm
• Power：380,415
• Transport Package：Pep Inside and Thin Film Outside, Fixed in Contain
• Specification：3000
• Trademark：ONEJET
• Origin：Guangdong, China
• HS Code：8456500000
• Production Capacity：5 Sets Per Month

Basic Info.

Model NO. ONEJT50-IRB4600 Power Source Electric Style Robot Type 6 Axis Maxi Bearing Pressure 420MPa/60000psi Working Diameter 3000X1500mm Main Motor Siemens PLC Siemens Servos Yaskawa Soft Starter Siemens Pressure Adjustable 0-380MPa Guid Linear and Ball Screw Hiwin&Tbi Cutting Accuracy 0.1mm Power 380/415 Transport Package Pep Inside and Thin Film Outside, Fixed in Contain Specification 3000 Trademark ONEJET Origin Guangdong, China HS Code 8456500000 Production Capacity 5 Sets Per Month

Product Description

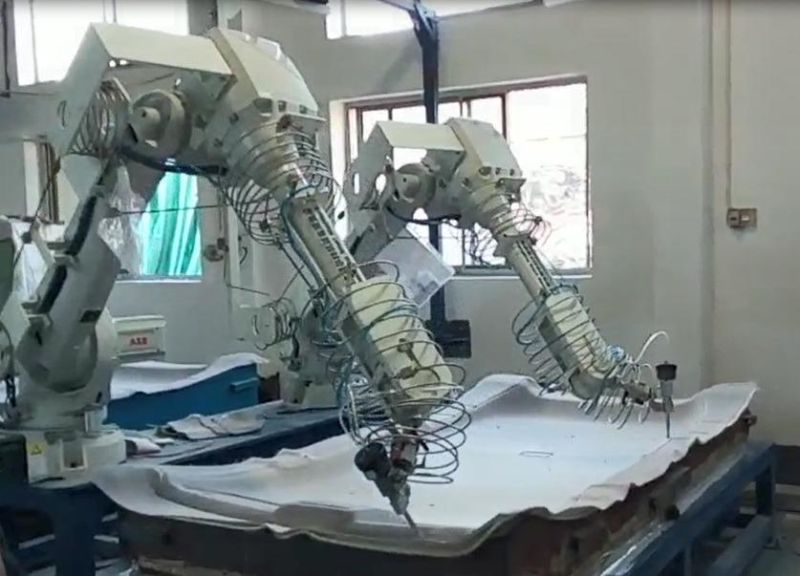

Robot waterjet cutting machine for Automotive Interior cutting

ONEJET50-IRB4600 Robot Waterjet
Onejet Robot Waterjet is designed for automobile trim cutting by pure water cutting,and in some moudle industrials with abrasive cutting; combined with ABB Root arms, it can make arm cutting stable

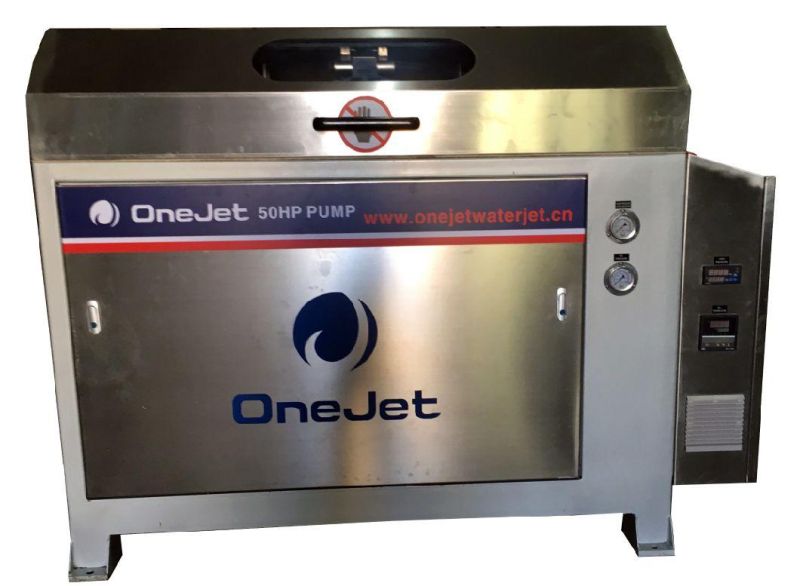

PUMPTECHNICAL SPECIFICATIONS
Machine Demension
Food print-(L X W): 1200X1900mm;     Height(With tube):1650mm;     Weight:1050kgs
Standard Model Spes.
Maxi bearing pressure: 4137bar;     Stable working pressure: 0-360MPA;     Maxi fowrate: 3.5L/min;
Power: 37KW/50HP;     Full load: 72A;     Maxi oil pressure: 21MPA;     Pressure ratio: 1:20(oil:HP)
Whole sets includes
One 50HP pump with fan cooler; One compelet pure waterjet cutting head;tubes & pipes; ABB robot arm and controler
BENEFITS & FEATURES
1, Pump is highly designed from lower nosie, easy mantain, more safe,less space and longer life;
2, All top brands parts in machine, This ensures machine stable working and long life.
3, Dust and water proof design;
4, Integarted fan cooler inside;
5, PLC controled with all alarms protection: no water alarm, oil level alarm,over-load alarm,over-stroke alarm,over-pressure alarm,over temperature alarm; all shows on screen;
6,Water booster inside to ensure enough inlet waterjet for pump working;
7,Pressure can be adjustable in control system from 0-380mpa any time and any points. Save energy in cutting different materials
8,USA intensifier,reliable and stable;
9,All high pressure materials for all joints for HP ways,Imported tubes
