• Model NO.：014194-40-30
• Style：Cantilever,Gantry
• Type：3 Axis,5 Axis
• Name：Waterjet Focusing Tube
• MOQ：One PC
• Rated Power：37kw(50Hz)
• Max.Pressure：600MPa
• Place of Origin：Shanghai, China
• Material：Stainless Steel
• Voltage：220V,380V
• Use：Waterjet Pump
• Transport Package：Soft Packing for The Water Jet Wooden Box for Wat
• Specification：0.36 Kg
• Trademark：YH
• Origin：China
• Production Capacity：3000 Pieces,Month

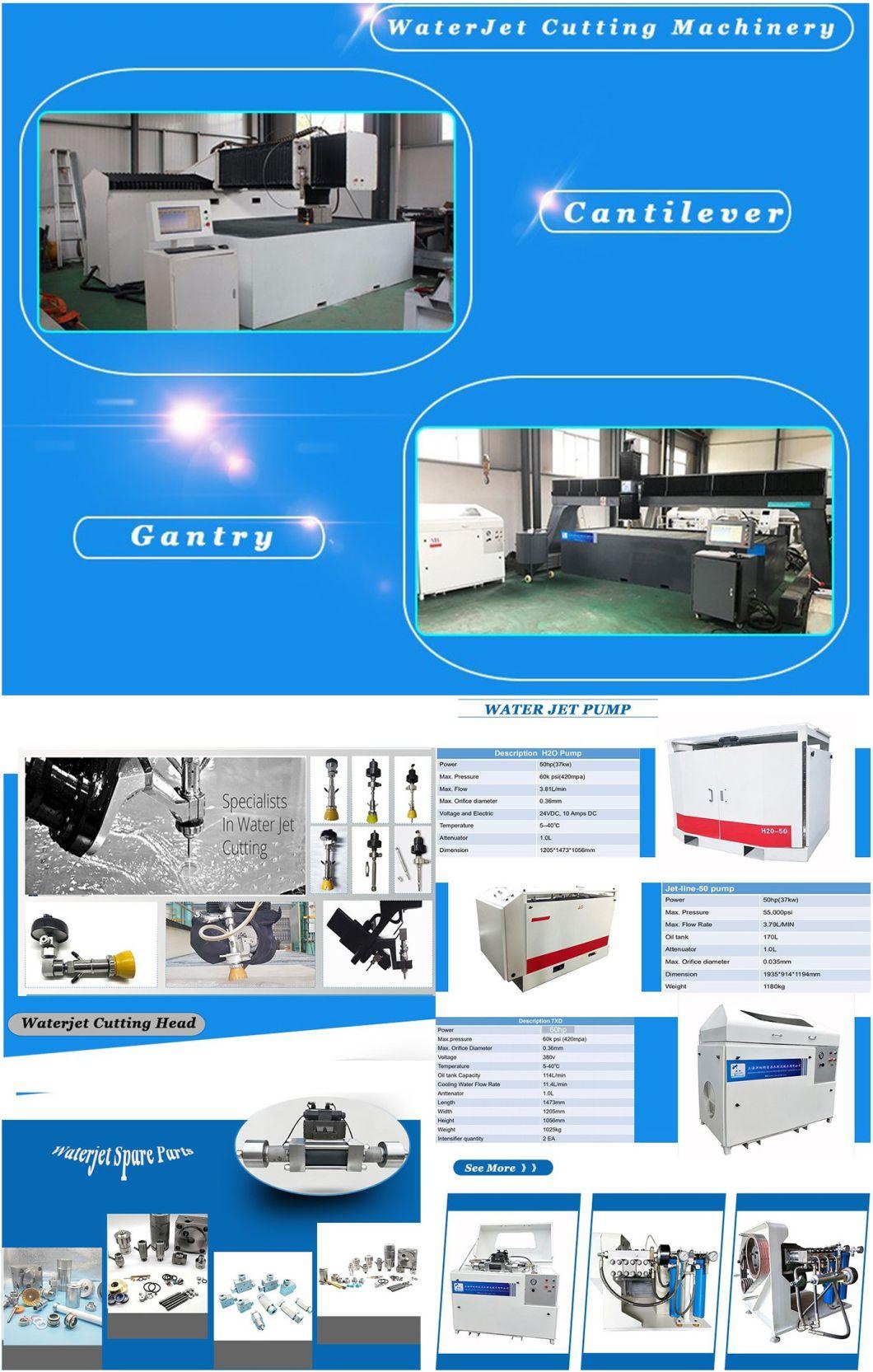

Cutting tablemodel13132015302040206020customized
sizeStructuregantry water cutting platform/cantiler series cutting platformTravelX axis1300mm2000mm3000mm4000mm6000mm  Y axis1300mm1500mm2000mm2000mm2000mm SpeedMax.move speed (x axis and y axis)6000mm/minMax.move speed (z axis)1000mm/minAccuracyPositing Accuracy0.127mmRepeat Accuracy±0.076mmWater tank maximum Loading Capacity300Kg/m2Cutting head3 axis / 5 axis
Movement : Linear motion/Rotary motionCNC
Controller15 inch LCD montior
Support DXF and NC code file
Software: Windows XP
Resistance of the shoch and electro-magnticThe key functionForward & Backward processing function
Even pace control function
Small arcs speed auto processing function
Circle processing functionPartial and smooth processing modesAbrasive
FeederMax. inlet air pressure      0.2-0.4 Mpa
Min. inlet air flow           0.028m3/min
Abrasive capacity           170 LFeaturesAir valve to prevent jams and breakages      Self sealing
Auto control with CNC auxiliary function        Slightly adjust the FLOW Intensifier pump/
direct drive pumpintensifier pump direct drive pumpReted power:
50HP (37 KW)Max.pressure:
60000psi (4137 bar)Control voltage and cuttent : 24DC,10AMPSReted power
30HP (22KW)Output pressure: 55000psiMax.pressure:
60000psi (4137 bar)Ambient temperature:
5-40 ºCFuel tank capacity :
114LCooling flow : 11.4L/MINAir:
80-120psiOperating voltage and power:210-240/360-420V 50HZAmbient temperature:
5-40 ºCAttenuation:
1LLong:1473 MMWidth : 1205 MMMin.inlet water:
60psi 1 gallon/min.Pump speed:
720 rmpFuel tank capacity:
2.6 L Superior product94 ksi high pressure waterjet partswaterjet direct drive partswaterjet direct drive pumpCustomize cutting table

Shanghai Yuanhong waterjet team:

1. R&D Team: Yuanhong have a professional technology team that can supply you waterjet cutting machine training service, customize products service, and so on.

2. Sale Team: We have a great team who will supplier you waterjet parts. And will offer you more intimate, timely, professional, patient serivce.

3. After-sale team: More professional after-sale service will be offered to you when you are our clients.

Packing and Shipping

Water jet cutting machine spare part package :  soft packing inside ,carton packing outside.

water jet cutting machine package : wooden package

(The package ways is also can according to the requirement of customer)
