Semi-Automatic Tube Bender Machine (GM-SB-129NCB)

Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：2-year
  • Condition：New
  • Certification：ISO 9001:2000, CE, UL
  • Automation：Semi-Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：GM-SB-129NCB
  • Type：Pipe and Tube Bending Machine
  • Max Bending Capacity：129*14
  • Bending Radius Region：50-550
  • Bending Angle Region：0-190
  • Effective Length Over Mandrel：4600
  • Machine Dimension：6000*1800*1300
  • Machine Weight：7500kg

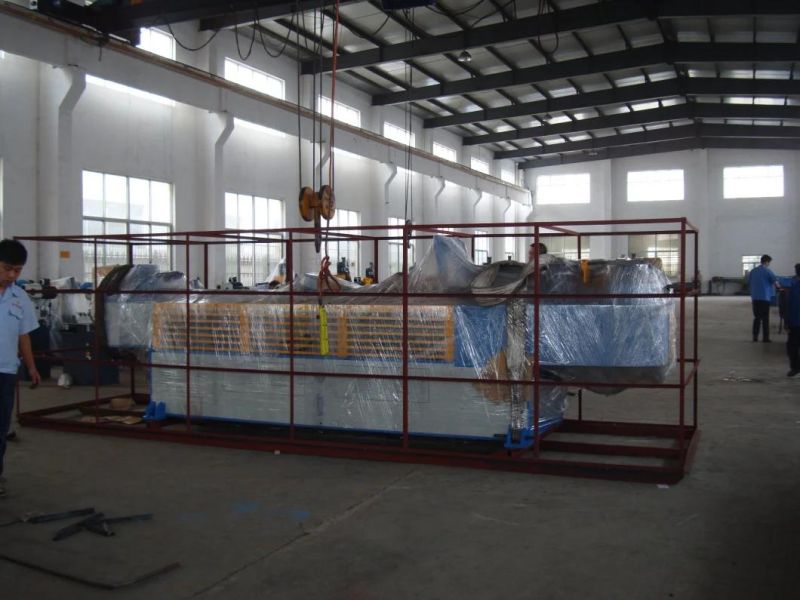

  • Transport Package：Iron Frame
  • Specification：GM-SB-129NCB
  • Trademark：GMACC
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：5000PCS,Year

Description

Basic Info.

Model NO. GM-SB-129NCB Type Pipe and Tube Bending Machine Max Bending Capacity 129*14 Bending Radius Region 50-550 Bending Angle Region 0-190 Effective Length Over Mandrel 4600 Machine Dimension 6000*1800*1300 Machine Weight 7500kg Transport Package Iron Frame Specification GM-SB-129NCB Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-129NCB
  • Machine Characteristic
Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.
  • Main Technical Parameter
NameUnit Parameter
Mild steel round tube  mm129*14
Stainless Steelmm129*8
Light alloy annealed round tubemm129*16
Mild steel square tubemm100*100*6
Mild steel rectangular tube mm105*95*6
Mild steel round solid barmm75
Mild steel square solid barmm65*65
Min. bending radiusmm50
Max. Bending radius(Standard)mm550
Head overhang (on bending centre)mm500
Head height (on bending centre)mm720
Bending centre height (from floor)   mm1235
Max. Bending Angle°190°
Through Effective Distancemm4600
Bending Speed(Max.)°/sec15
Bending angle Precision°±0.10
System Motor PowerKW15
Hydraulic Pump VolumeL41
Max. PressureMpa16
L*W*H (Packaging Dimension)mm6000*1800*1300
Machine WeightT7.5
  • Configuration of Hydraulic and Electronic Control System
NameManufacturer
Hydraulic MotorGermany Siemens(BEIDE)/Runmali
Hydraulic PumpWuxi Tuoli
Hydraulic ValveJapan Yuken(Imported)
Oil way BoardTaiwan Shanghong (Imported)
CylinderShanghai Qifan
Touch screenTaiwan Weinview(Imported)
PLCJapan Mitsubishi(Imported)
Angle controllerJapan Nemicon(Imported)
Switch powerTaiwan Mingwei
ContactorGerman SCHNEIDER(Imported)
Transformer Wuxi Xinyu

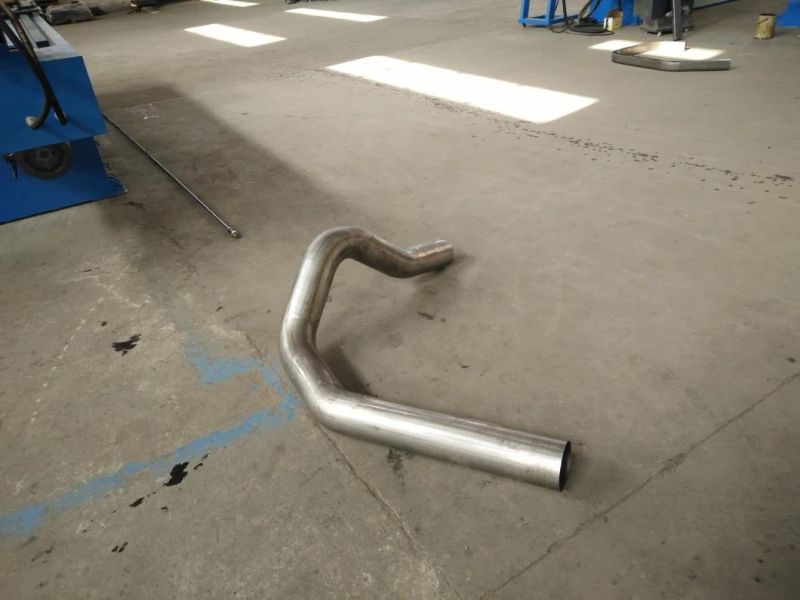

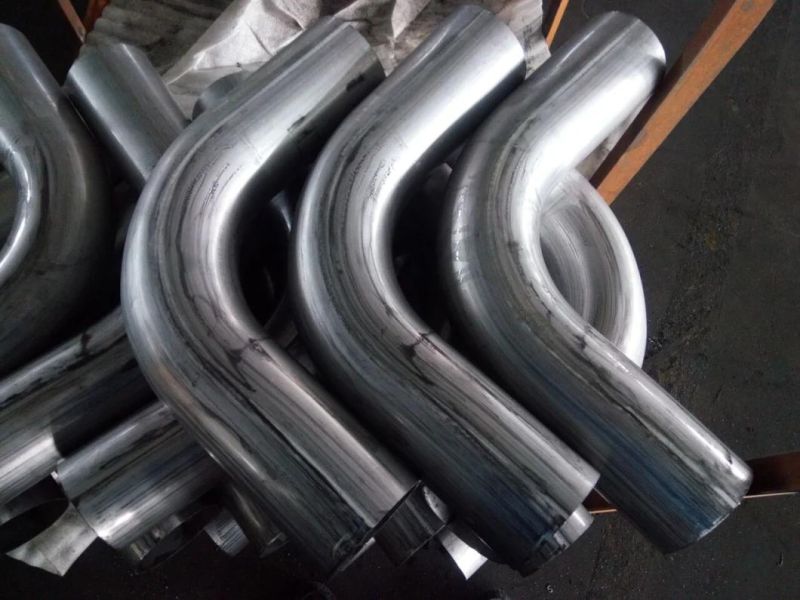

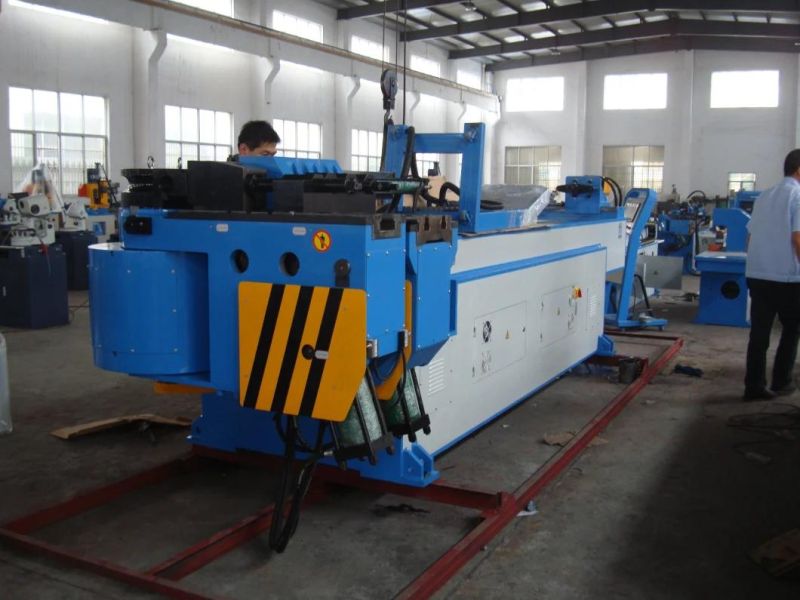

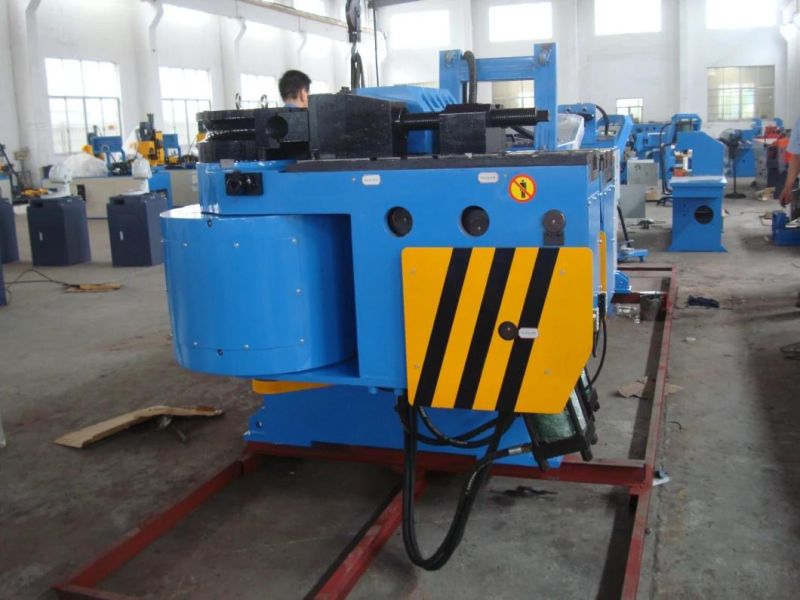

Semi-Automatic Tube Bender Machine (GM-SB-129NCB)
