Hydraulic Profile Bending Machine (Round Bending machine HRBM50HV HRBM65HV)
Tengzhou Wellon Machinery Co., Ltd.- Condition:New
- Certification:RoHS, ISO 9001:2008, CE
- Automation:Automatic
- Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type:Manual Bending Machine
- Roller Dia:50 65 mm
Base Info
- Model NO.:HRBM50HV HRBM65HV
- Application:Machinery & Hardware
- Type for Fold-Bending Machine:Hydraulic Fold-Bend Machine
- Type for Pipe and Tube Bending Machine:Electric Hydraulic Pipe Bender
- Transport Package:Ply Wood Case
- Specification:50 65
- Trademark:WELLON
- Origin:China
- HS Code:8462219000
- Production Capacity:50 PCS,Month
Description
Basic Info.
Model NO. HRBM50HV HRBM65HV Application Machinery & Hardware Type for Fold-Bending Machine Hydraulic Fold-Bend Machine Type for Pipe and Tube Bending Machine Electric Hydraulic Pipe Bender Transport Package Ply Wood Case Specification 50 65 Trademark WELLON Origin China HS Code 8462219000 Production Capacity 50 PCS/MonthProduct Description

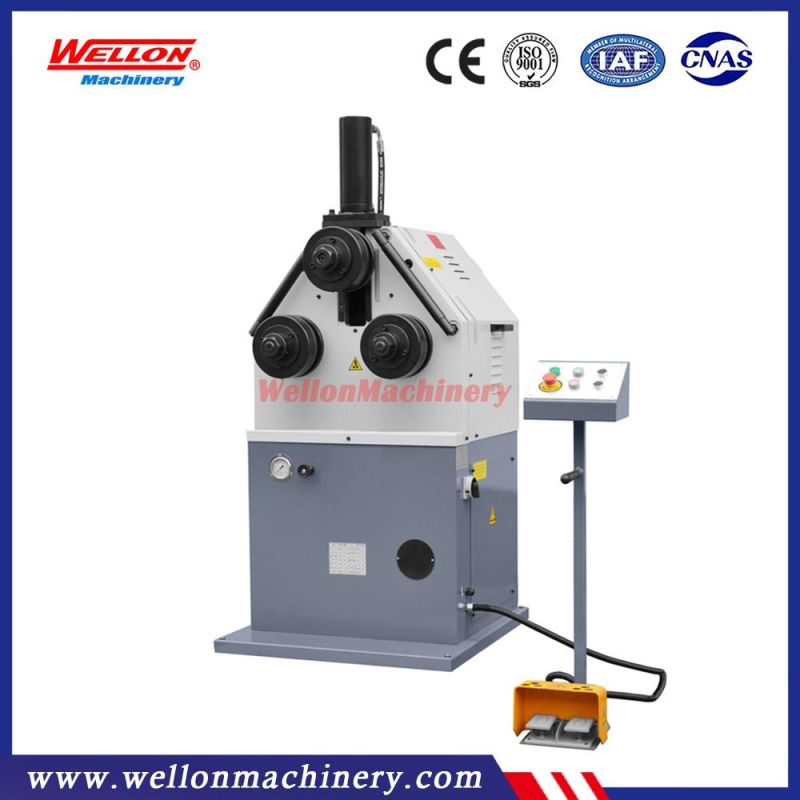

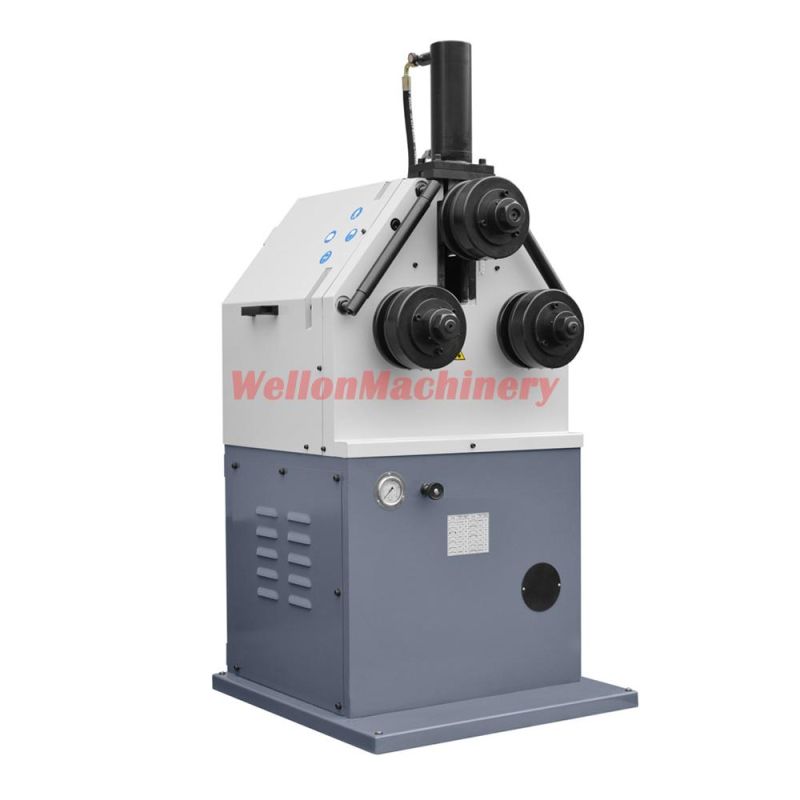

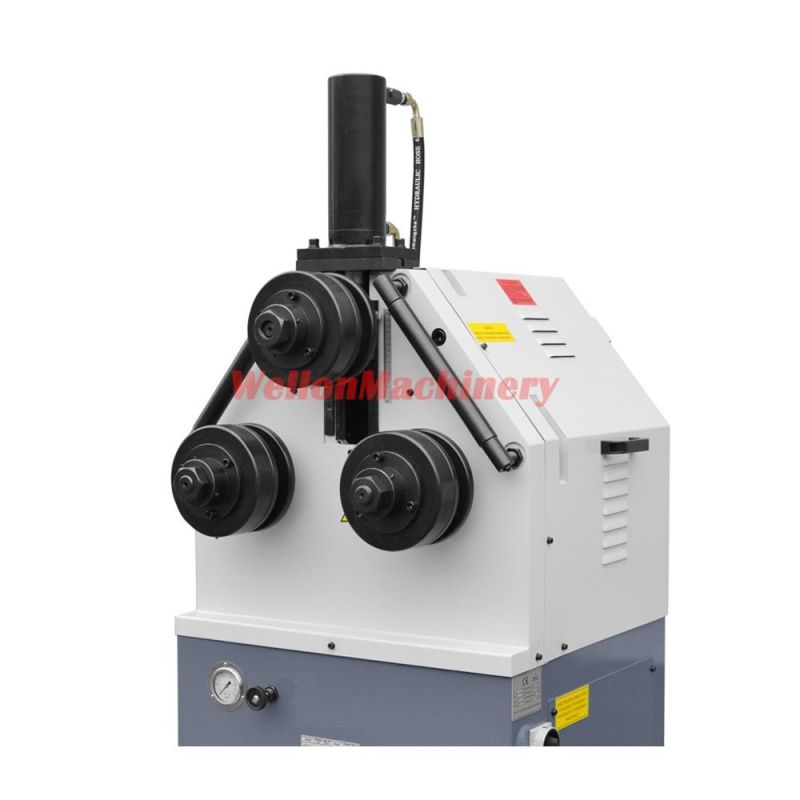

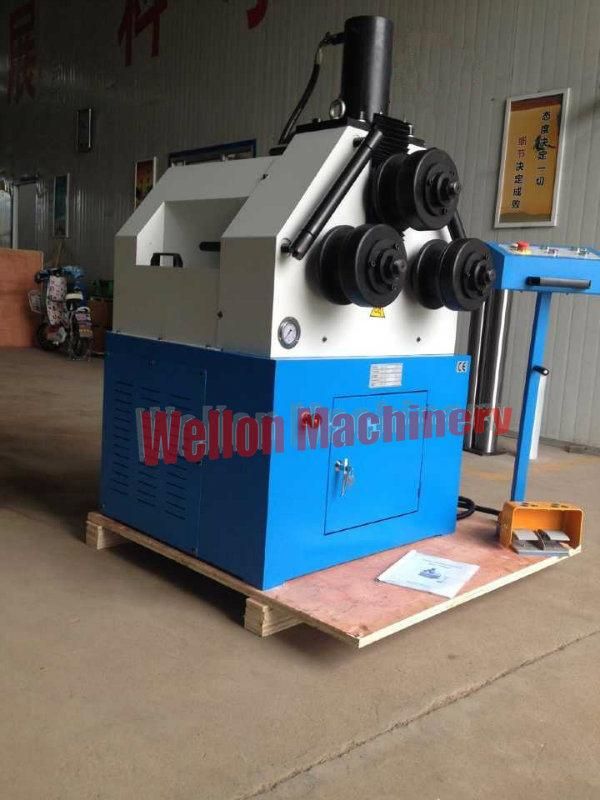

Products Description:Hydraulic Profile Bending Machine HRBM50HV HRBM65HV
1.The Round bending machine features an electric three-roller-wheel structure.
2.It has the advantage of a two axis drive. The upper axis can be moved up and down to adjust the diameter
of the processed work piece.
3. It can conduct round bending processing for plates, T-shaped materials and so on.

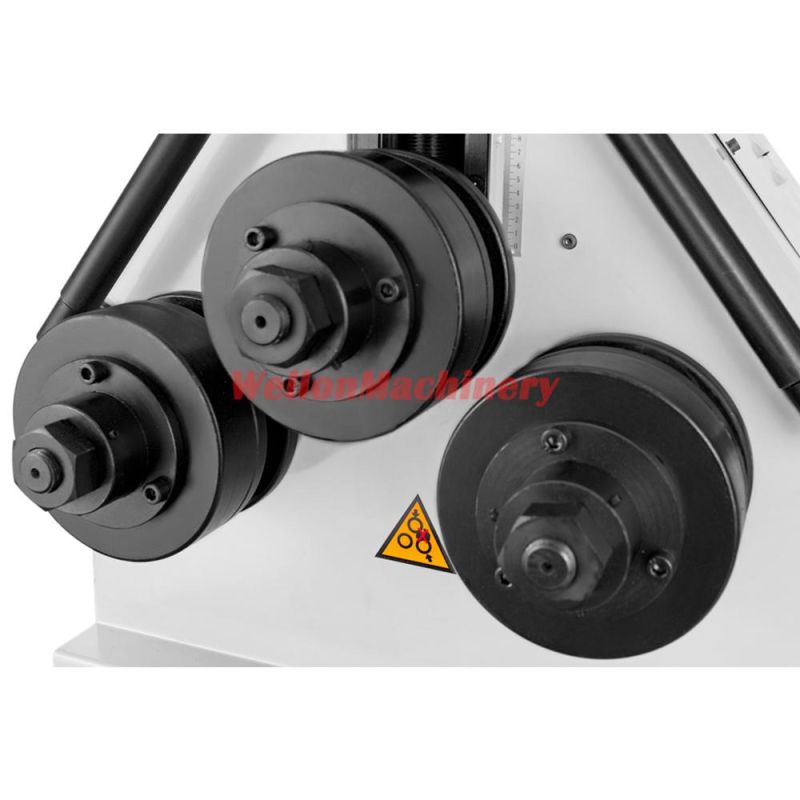

4. Round bending machine has a standard roller wheel, of which the front two types of roller wheel can be
used both vertically and horizontally.
5.The reversible pedal switch facilitates the operation.
Model | HRBM50HV | HRBM65HV |
Dia .Of roller(mm) | 50 | 65 |
Power | 2.2kw/3HP | 2.25kw |
Spindle speed | 13r/min | 9.3r/min |
Packing Size | 150x95x134cm | 125x115x180cm |
N.W./G.W. | 515/647KGS | 720/920KGS |
