• Model NO.：WL-103
• Trademark：Crown
• Origin：Kunshan
• HS Code：8451500000
• Production Capacity：0-6000 Rev,Min (Adjustable)

Basic Info.

Model NO. WL-103 Trademark Crown Origin Kunshan HS Code 8451500000 Production Capacity 0-6000 Rev/Min (Adjustable)

Product Description

Automatic hot and cold label cutter label die cutting machine

Technique parameter:

Model	WL-103	WL-103A	WL-103B
Type	Computer type	Computer type	Computer type (with auto stacking function)
Power/output	220V/1.5KW	220V/1.5KW	220V/1.5KW
Cutting length	1-90cm	1-99cm	1-99cm
Cutting width	1-12.5cm	1-12.5cm	1-12.5cm
Cutting speed	200pcs/min	600pcs/min	300pcs/min
Weight	80kgs	80kgs	92kg
Dimension	78*60*73cm	78*60*73cm	107*57*75cm

Introduction:

103 This cold and hot label cutting machine can be used for general trademark cutting. Cold cutting is suitable for nylon tape, and paper tape. After heating, it becomes hot cutting, and it can cut the tape and several side belts. It can be arbitrarily adjusted from 1 to 99 cm in length.

103A This label cutting machine uses the sensor to recognize the pattern on the mark for precise cutting. Cutting is divided into cold cutting and hot cutting. The hot cutting is generally used for materials that do not require heating, such as washable labels, PVC trademarks, etc., and the heat cutting has a certain edge-sealing effect on loose edge material. The equipment is fast and precise, and the operation is simple, which can greatly improve the production efficiency.

103B is usually used for trademark cutting. Cold cutting is suitable for nylon belts, adhesive plaster, and paper tapes. After heating, it becomes hot cutting and can cut adhesive tapes and other webbing materials like ribbon, nylon belt woven, cotton belt, cloth trademark, etc.

• Type: hot and cold cutting

• Applicable materials: washing label, woven label, printed label, ribbon, non-woven label, PVC trademark, etc.

• Cutting length: 1-99cm

• Cutting width: 1-12.5cm

• Cutting speed: 200pcs/min

• Applicable industries: clothing, handbags, gifts, packaging, printing and other industries


• Suitable for cutting all kinds of printed labels, woven labels, PVC trademarks, self-adhesive trademarks, being able to process hot cutting after heating;

• Equipped with SUNX photoelectric eye from Japan, featuring high precision and simple operation;

• Independently developed control system with reasonably clever structural design speeds up to 300 times/min;

• It has the function of discharging waste, eliminating the influence of waste and making the machine work continuously;

• The static elimination device can eliminate the influence of static electricity during the high-efficiency shearing process, and the sections will be folded naturally;

• Adjustable cutter speed and feed speed, fully control the speed of the machine;

• High speed and accurate feeding motor, the accuracy can reach 0. 3mm at a cutting length of 2.5m;

• The control system has four working modes, including debug mode, positioning mode, fixed-length mode, and discharge mode. These working modes can meet different cutting requirements of various materials;

• Large LCD display in Chinese (English), simple and convenient.

• Cutting materials: all kinds of trademarks/labels, ribbons, nylon belt is woven, cotton belt, cloth belt, etc.

• Cold and hot cutting available: the cold cutting is suitable for cutting nylon belts, adhesive plaster, and paper tapes, and the hot cutting can cut adhesive tapes and other webbing materials like ribbon, nylon belt woven, cotton belt, cloth trademark, etc.

• Using ultrasonic cutting, the cutting surface is flat and soft, no burrs, no loose edges

• Cutting length: 1-99cm; Cutting width: 1-12.5cm; Cutting speed: 300pcs/min

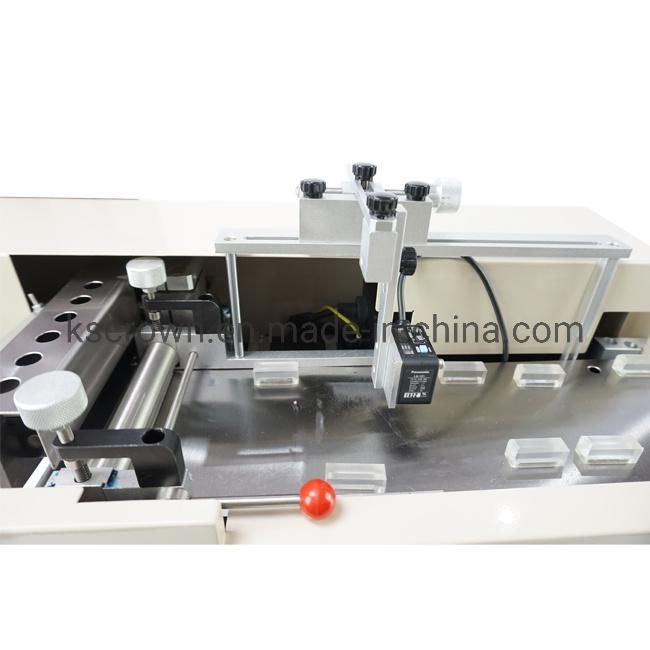

• High precision: use the sensor to track the position of the cutting position of the trademark

• Features automatic-stop function without material

• Equipped with an anti-static device to eliminate static electricity generated when cutting off the trademark

• Adopts PLC program control, automatic feeding, computer counting, high precision and high speed.

• Automatically store cutting length and cutting quantity

• Automatically stacking finished labels neatly, saving time and effort

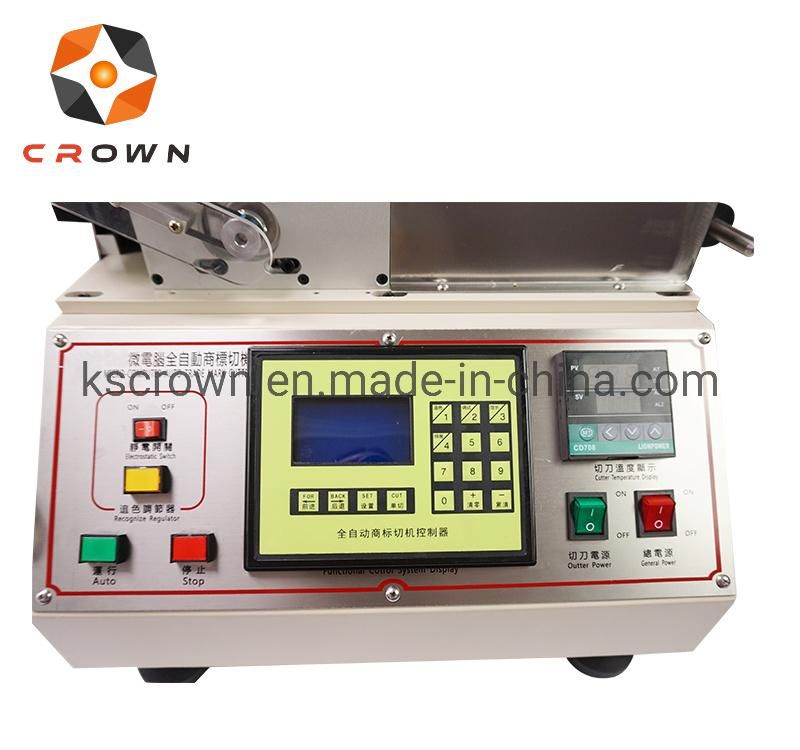

Product show:

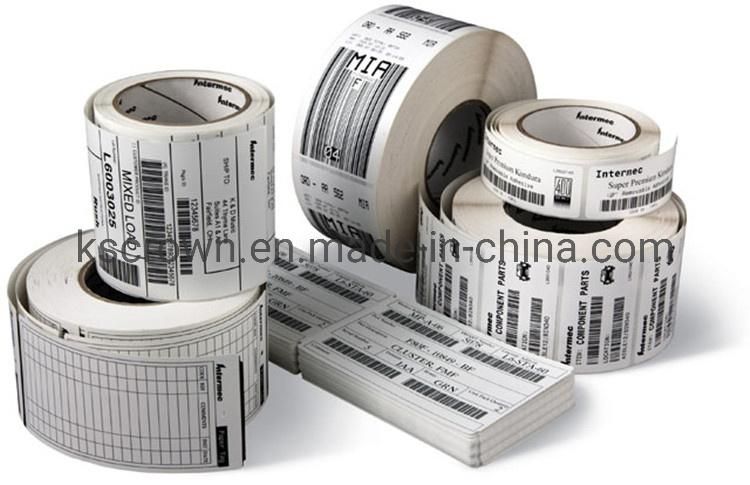

Machine processing tape samples:

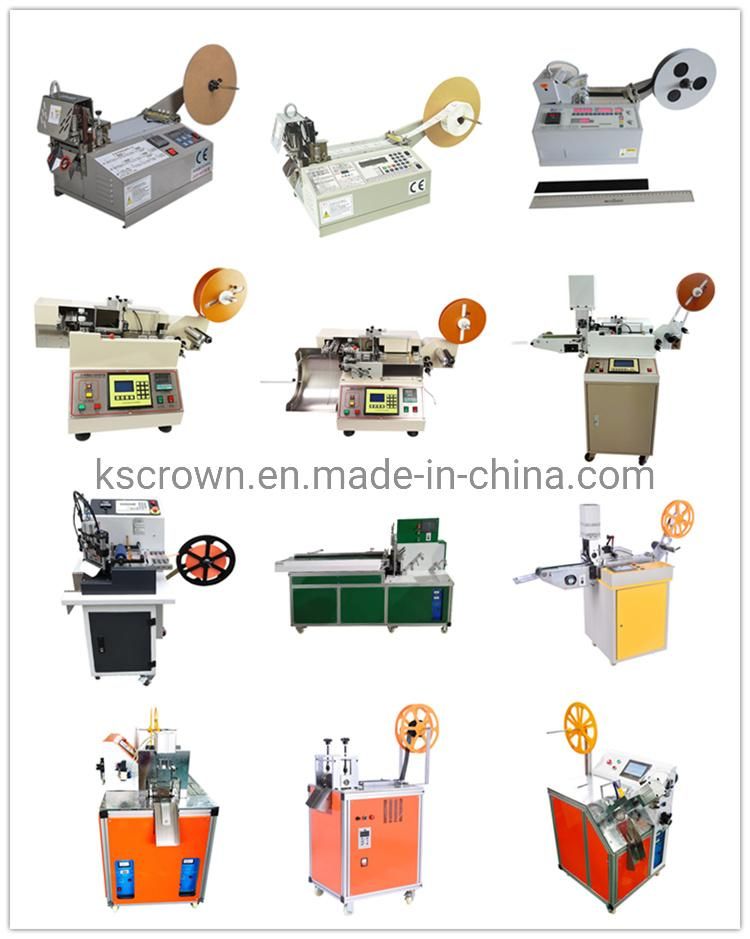

Related products:

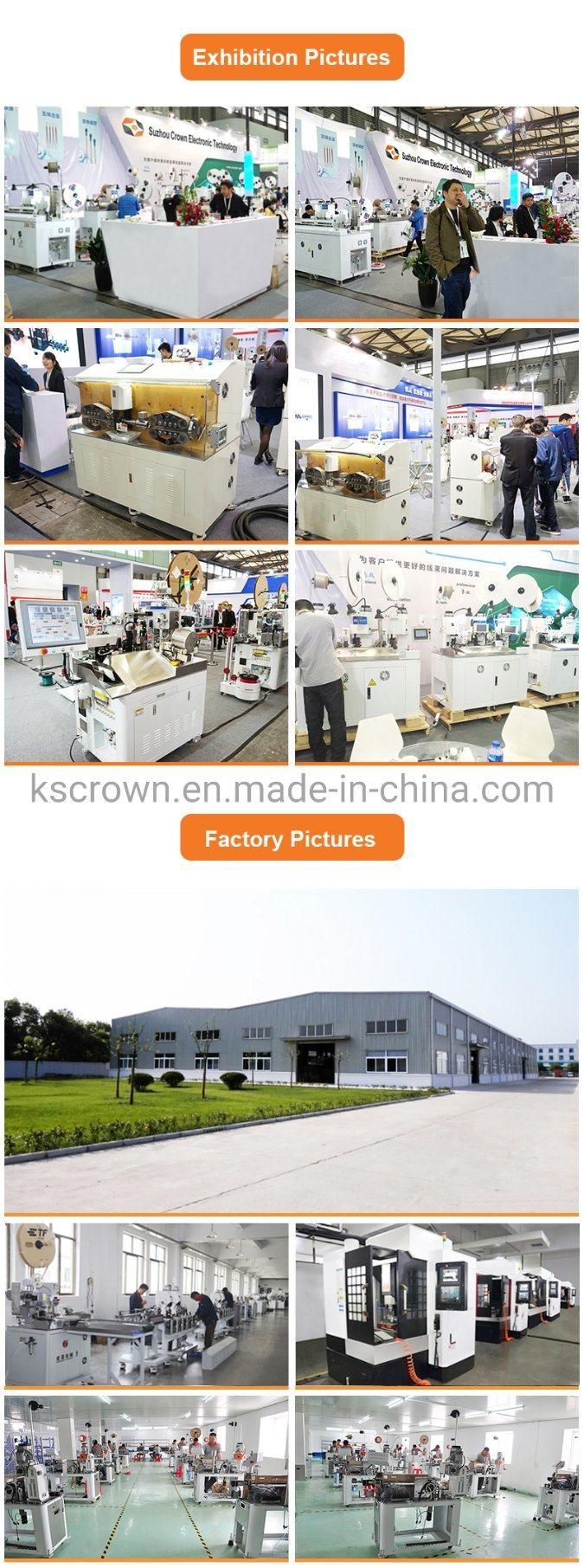

Company information:


Certificate:


Contact:

Pls, contact Suzhou Crown Bell for price inquiry or any other questions/doubts.
