• Type：Roll Forming Machine
• Material：Cast Steel
• Rebar Range：φ12-φ40mm
• Maximum：80MPa
• Rated Power：4kw
• Transport Package：Wooden Box
• Specification：1020x500x965mm
• Trademark：Zhongtuo
• Origin：China
• HS Code：8462919000
• Production Capacity：10pieces,Month

Basic Info.

Type Roll Forming Machine Material Cast Steel Rebar Range φ12-φ40mm Maximum 80MPa Rated Power 4kw Transport Package Wooden Box Specification 1020x500x965mm Trademark Zhongtuo Origin China HS Code 8462919000 Production Capacity 10pieces/Month

Product Description

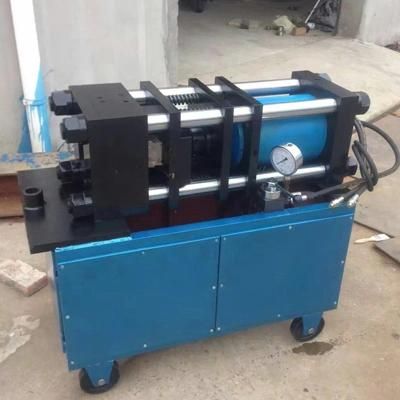

Upsetting machine with steel processing range up to φ12-φ40
The upsetting and straight thread connection technology uses a special upsetting machine to rough up the thread section to be machined at the end of the reinforcement so that the diameter of the upsetting part is increased to be larger than the diameter of the parent material. Afterwards, the upsetting part of the special steel pipe threader is used for threading, and then the threaded parts of the two rebar head threading threads processed by the same specification sleeve are connected with a wrench to complete the so-called rebar connection. The upsetting and straight thread connection technology has the advantages of stable performance, quick and easy connection, high qualification rate, and can also completely solve the problem of non-rotatable connection of steel bars.

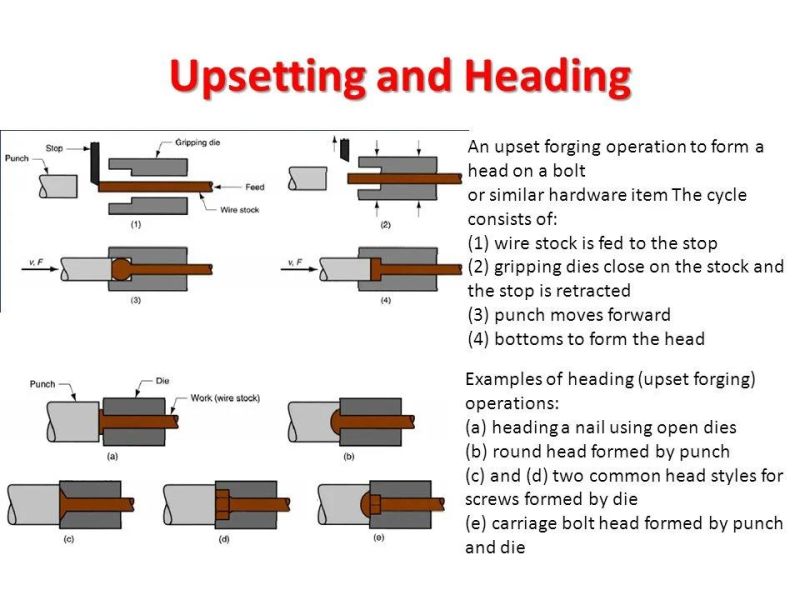

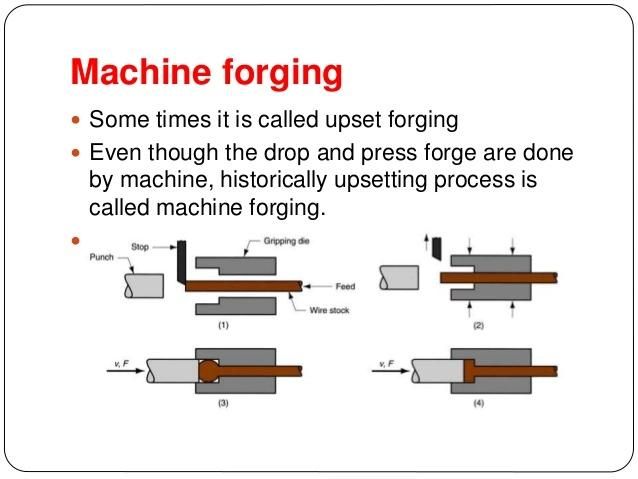

The upset forging machine uses the principle of cold heading to plastically deform the end of the steel bar, the diameter is increased by 4~6mm, and then the thread is processed. The actual cross-sectional area after the thread is machined is larger than the cross-sectional area of the original steel bar, which greatly increases the tensile strength of the joint. The threaded joints of the reinforced concrete are completely broken in the base metal by tensile test, and are suitable for construction, roads, bridges, power stations, etc.


parameters  of upset forging machine:

Processing of steel range:	φ12-φ40
Rated power:	4kw
Rated power:	380V     50HZ
Hydraulic oil:	68# anti-wear hydraulic oil
Maximum working pressure	80Mpa
Total machine weight:	560kg
Machine size	1020x500x965mm

FAQ:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2:  No.27,Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.

Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

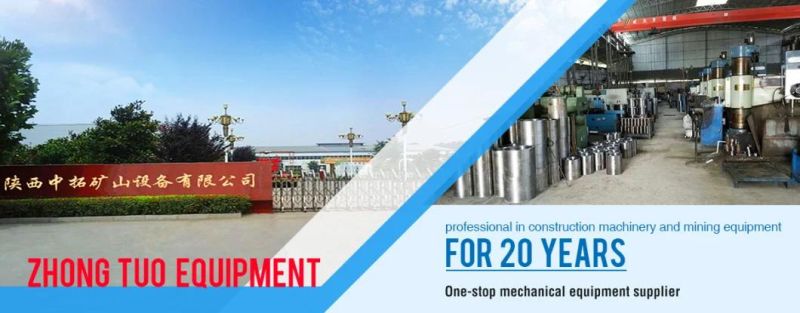

Our Company Information:


We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience at mining equipment, main products include:

Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine

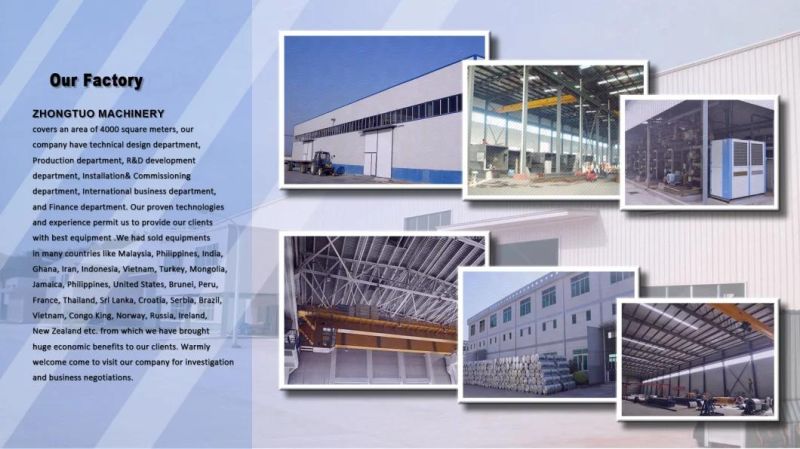

About Our Factory:


About the products:



Packing and Shipping:

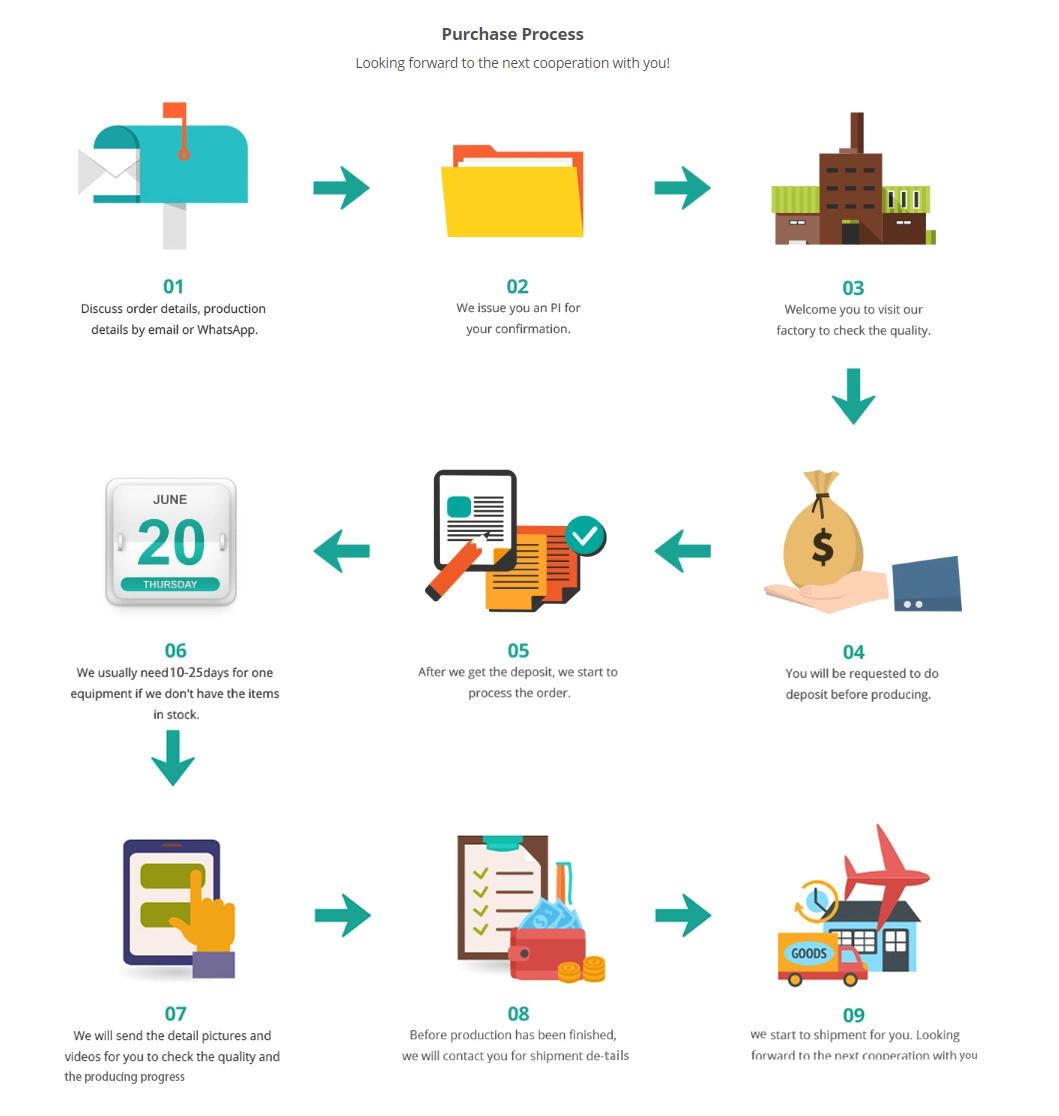

Purchase Process:

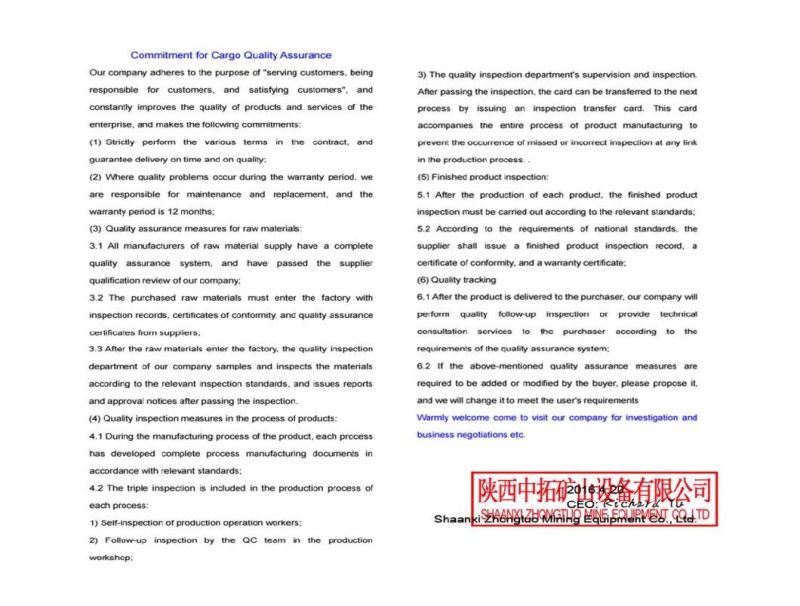

About the Quality:


Why you choose us:

1. We are a real factory offering products and provide free technical advice.
2. Company in business for many years and served Over 50 countries customers.
3. All machine with CE, ISO,SGS certificate. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
