WC67Y Series Hydraulic Bending Machine
Shaanxi HAVEN Equipment Co., Ltd.- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Semi-Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Hydraulic Bending Machine
Base Info
- Model NO.：WC67Y-80,3200
- Control System：E21 Digital Readout From Estun
- Rated pressure：800KN
- Working table length：3200mm
- Transport Package：Plastic Covering
- Specification：WC67Y-80,3200
- Trademark：HAVEN
- Origin：China
- HS Code：8459
- Production Capacity：50units,Month
Description
Basic Info.
Model NO. WC67Y-80/3200 Control System E21 Digital Readout From Estun Rated pressure 800KN Working table length 3200mm Transport Package Plastic Covering Specification WC67Y-80/3200 Trademark HAVEN Origin China HS Code 8459 Production Capacity 50units/MonthProduct Description

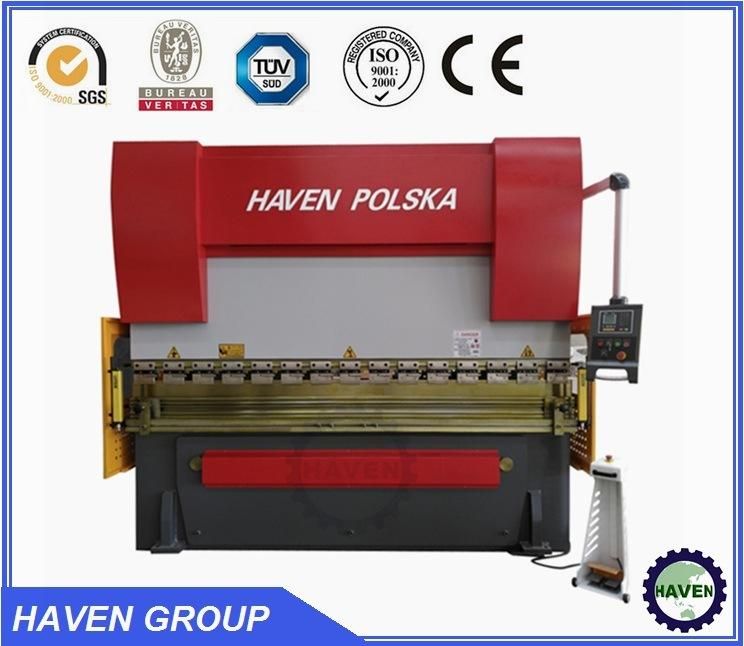

WC67Y Series Hydraulic Bending Machine
Main features:
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.

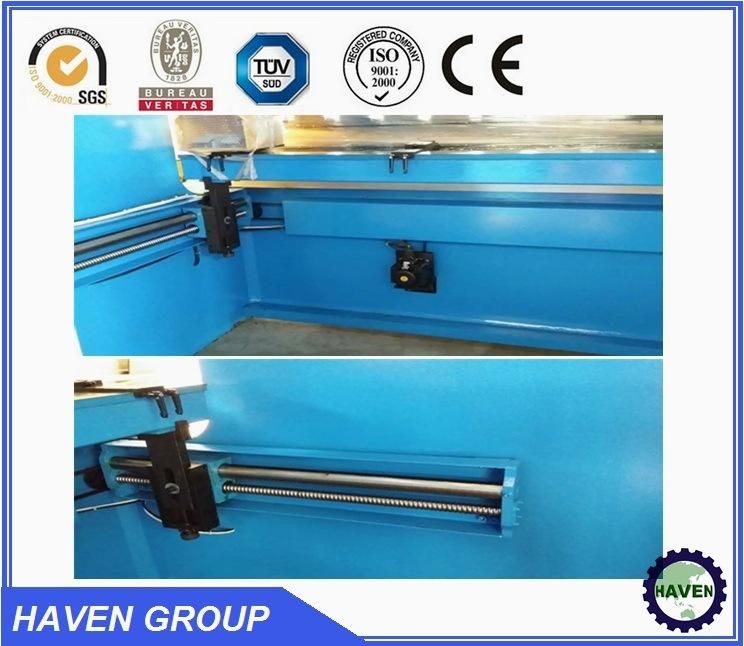

3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional.
Main specification:
Model | Nominal Pressure (KN) | Length of table(mm) | Distance Between Housing (mm) | Throat Depth (mm) | Stroke (mm) | Open Height (mm) | Main Motor (kW) | Dimensions (L x W x H) (mm) | weight (t) |
| 40/2000 | 400 | 2000 | 1600 | 200 | 110 | 335 | 4 | 2545x1510x2050 | 3 |
| 40/2500 | 400 | 2500 | 2000 | 200 | 110 | 335 | 4 | 2950x1510x2080 | 3.5 |
| 63/2000 | 630 | 2000 | 1600 | 250 | 110 | 350 | 5.5 | 2555x1600x2130 | 3.8 |
| 63/2500 | 630 | 2500 | 2000 | 250 | 110 | 350 | 5.5 | 2960x1600x2180 | 4.2 |
| 63/3200 | 630 | 3200 | 2600 | 250 | 110 | 350 | 5.5 | 3740x1600x2230 | 5.2 |
| 100/2500 | 1000 | 2500 | 2000 | 350 | 150 | 400 | 7.5 | 2980x1650x2330 | 6.3 |
| 100/3200 | 1000 | 3200 | 2600 | 350 | 150 | 400 | 7.5 | 3740x1650x2355 | 7 |
| 100/4000 | 1000 | 4000 | 3200 | 350 | 150 | 400 | 7.5 | 4550x1650x2450 | 8.8 |
| 100/5000 | 1000 | 5000 | 4000 | 350 | 150 | 400 | 7.5 | 5100x1500x2650 | 11.8 |
| 125/2500 | 1250 | 2500 | 2000 | 350 | 150 | 410 | 7.5 | 3980x1650x2370 | 7.5 |
| 125/3200 | 1250 | 3200 | 2600 | 350 | 150 | 410 | 7.5 | 3750x1650x2450 | 8.2 |
| 125/4000 | 1250 | 4000 | 3200 | 350 | 150 | 410 | 7.5 | 4550x1650x2470 | 9 |
| 125/5000 | 1250 | 5000 | 4000 | 350 | 150 | 410 | 7.5 | 5100x1500x2795 | 11.5 |
