• Model NO.：W24H-159
• Type：Roller-Bending Machine
• Power supply：380V,50Hz,3pH or as your demand
• Machine color：As your demand
• Brand：HAVEN
• PLC：OMRON
• Transport Package：Steel Pallet
• Specification：CE, ISO, SGS
• Trademark：HAVEN
• Origin：China
• HS Code：84622990
• Production Capacity：30 Units,Month

Basic Info.

Model NO. W24H-159 Type Roller-Bending Machine Power supply 380V/50Hz/3pH or as your demand Machine color As your demand Brand HAVEN PLC OMRON Transport Package Steel Pallet Specification CE, ISO, SGS Trademark HAVEN Origin China HS Code 84622990 Production Capacity 30 Units/Month

Product Description

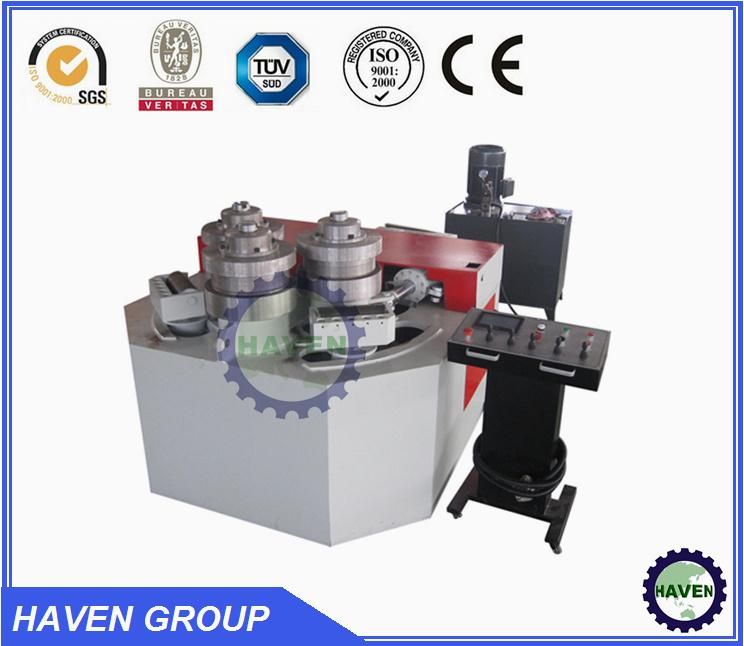

W24H-159 Hydraulic Profile Frame Section Bending Machine






1.Main features
PLC is from OMRON
Touch screen is from Canada
Main electric parts are from SIEMENS
Hydraulic valves are from YUKEN
Hydraulic sealings are from UN, Taiwan
Hydraulic pump is from Hefei Changyuan, China famous brand
Hydraulic motor is from Ini, Ningbo, China famous brand
Bearing is from Wafandian, China famous brand
Main specifications:

Main shaft diameter	180mm
Side shaft diameter	160mm
Mould outer diameter	460mm
Rolling speed	5m/min
Support roller down-upper speed	0.2m/min
Hydraulic motor model	1QJM32-1.6
Hydraulic output torque	4881NM
Oil pump power	15KW
Oil pump motor speed	1450rpm
Machine dimension	2900x1800x1700mm
Machine weight	9500kg

2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement


3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.


4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
