• Model NO.：W24Y-400
• Type：Roller-Bending Machine
• Yield limit：245
• Min bending diameter：300-400
• Anlge steel capacity：L40*4
• Power supply：380V,50Hz,3pH or as your demand
• Machine color：As your demand
• Transport Package：Steel Pallet
• Specification：CE, ISO, SGS
• Trademark：HAVEN
• Origin：China
• HS Code：84622990
• Production Capacity：60 Units,Month

Basic Info.

Model NO. W24Y-400 Type Roller-Bending Machine Yield limit 245 Min bending diameter 300-400 Anlge steel capacity L40*4 Power supply 380V/50Hz/3pH or as your demand Machine color As your demand Transport Package Steel Pallet Specification CE, ISO, SGS Trademark HAVEN Origin China HS Code 84622990 Production Capacity 60 Units/Month

Product Description

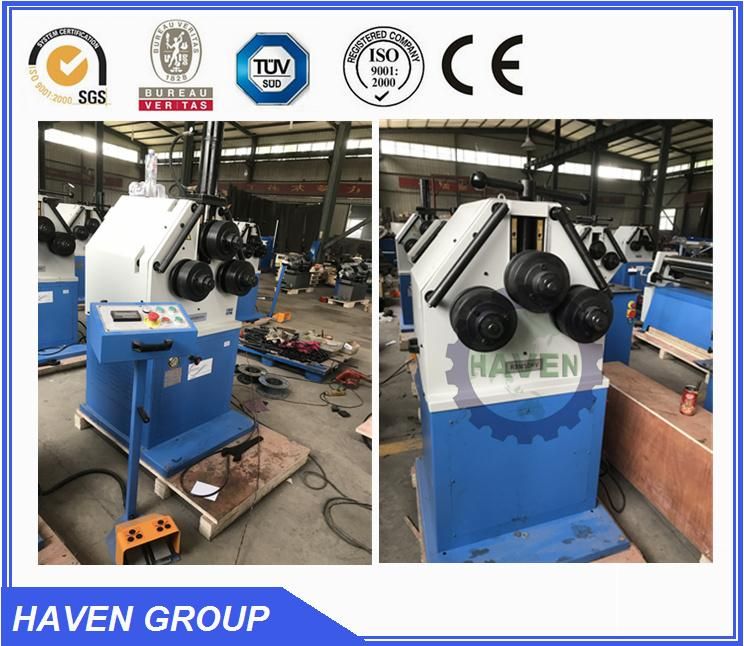

Mechanical Section Three Rollers Bending Machine







1.Main Features
Main electric components are from SIEMENS
Top roller are driven ( down - upper movement ) with hydraulic system
Bottom rollers are driven with motor and gear reducer
One set of standard bending mould is fixed on the machine
All main components (motor, hydraulic parts, gear reducer) are from China famous brand
Main specifications:

Material yield limitation	250MPa
Top roller shaft	φ75mm
Bottom roller shaft	φ65mm
Mould material	42CrMo
Mould size	φ180x50mm
Rolling speed	4-5m/min
Motor	1.5KW
Gear reducer	China famous brand
Machine over dimension	900*600*1500mm
Machine weight	550kg
Bending capacity:
Angle steel bending capacity	40x40x5mm
Round bar	φ30mm
Round pipe	φ60x2mm
Square bar	30x30mm

2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement

3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
