Hot Sell Semi Automatic Pipe Bender GM-120ncb

Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：2-year
  • Condition：New
  • Certification：ISO 9001:2000, CE, UL
  • Automation：Semi-Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：GM-120NCB
  • Type：Pipe and Tube Bending Machine
  • Certificate：ISO9001: 2000
  • Applicable Material：S. S, M. S., Copper, Aluminium, Alloy, Galvanized
  • Applicable Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
  • Bending Drive：Hydraulic
  • Technical：Cold Bend
  • Transport Package：Iron Frame,Wooden Case
  • Specification：CE
  • Trademark：GMACC
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：5000PCS,Year

Description

Basic Info.

Model NO. GM-120NCB Type Pipe and Tube Bending Machine Certificate ISO9001: 2000 Applicable Material S. S, M. S., Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Bending Drive Hydraulic Technical Cold Bend Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-120NCB

Machine Characteristic
Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

Main Technical Parameter

NameUnit Parameter
Max. Bending Capacitymm¢120*10
Bending Radius Rangemm40-500
Max. Bending Angle° 190°
Though Effective Distancemm4200
Bending Speed°/sec20
Bending Precision°±0.10
System Motor PowerKW15
Oil Pump Delivery VolumeL45
Max. PressureMpa16
L*W*H (Packaging Dimension)mm5200*1350*1250
Machine WeightT5.5

Configuration of Hydraulic and Electronic Control System

NameManufacturer
Hydraulic MotorGermany Siemens(Beide)or Runmali
Hydraulic PumpTaiwan Hydromax(Imported)
Hydraulic ValveJapan Yuken(Imported)
Oil way BoardSuzhou Boguan
CylinderShanghai Qifan
Oil tubeSuzhou Kejia
Touch screenTaiwan Weinview(Imported)
PLCJapan Mitsubishi(Imported)
Angle controllerJapan Nemicon(Imported)
Switch powerWenzhou Changxing
ContactorGerman SCHNEIDER(Imported)
Other Electric PartsGerman SCHNEIDER,Omron, Taiwan SHILIN(Imported)

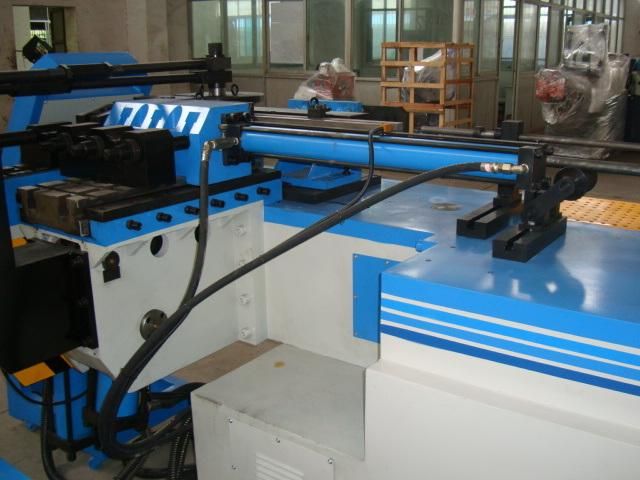

Hot Sell Semi Automatic Pipe Bender GM-120ncb

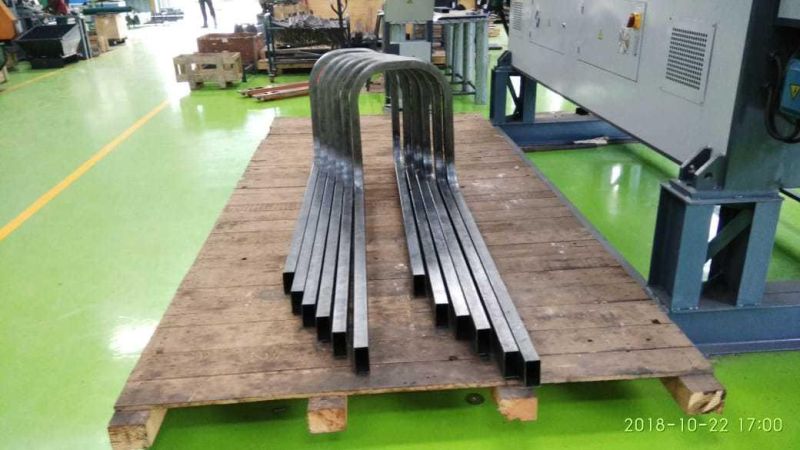

Hot Sell Semi Automatic Pipe Bender GM-120ncb

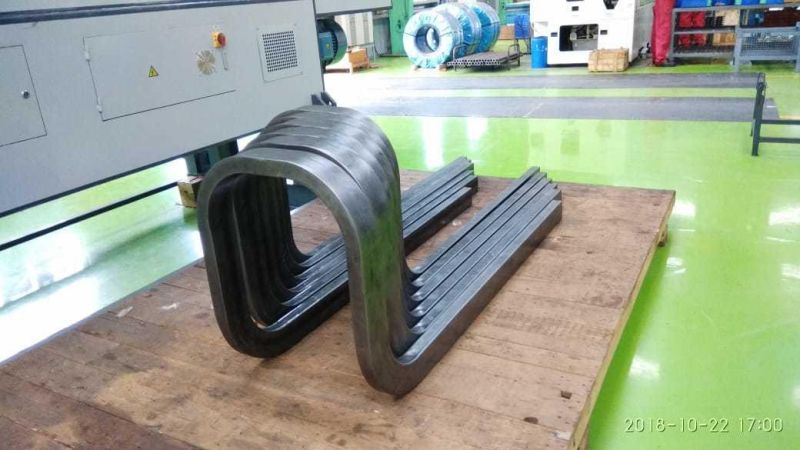

Hot Sell Semi Automatic Pipe Bender GM-120ncb

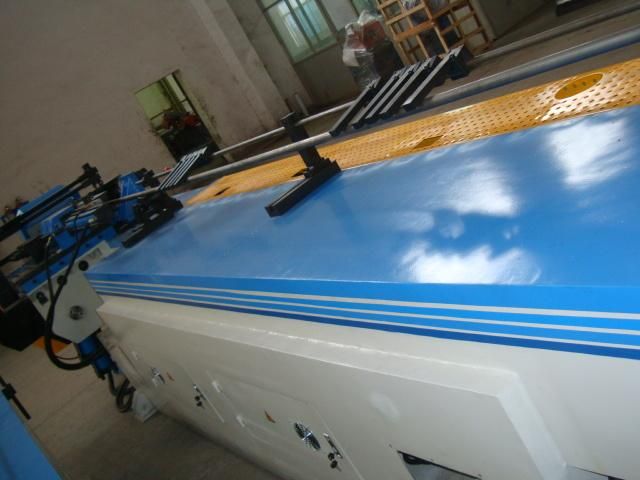

Hot Sell Semi Automatic Pipe Bender GM-120ncb
