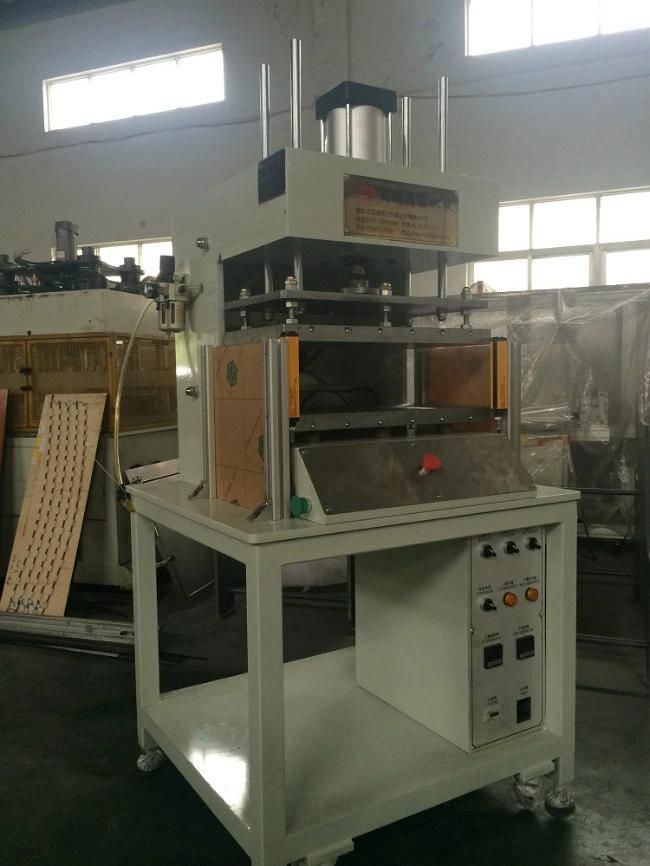

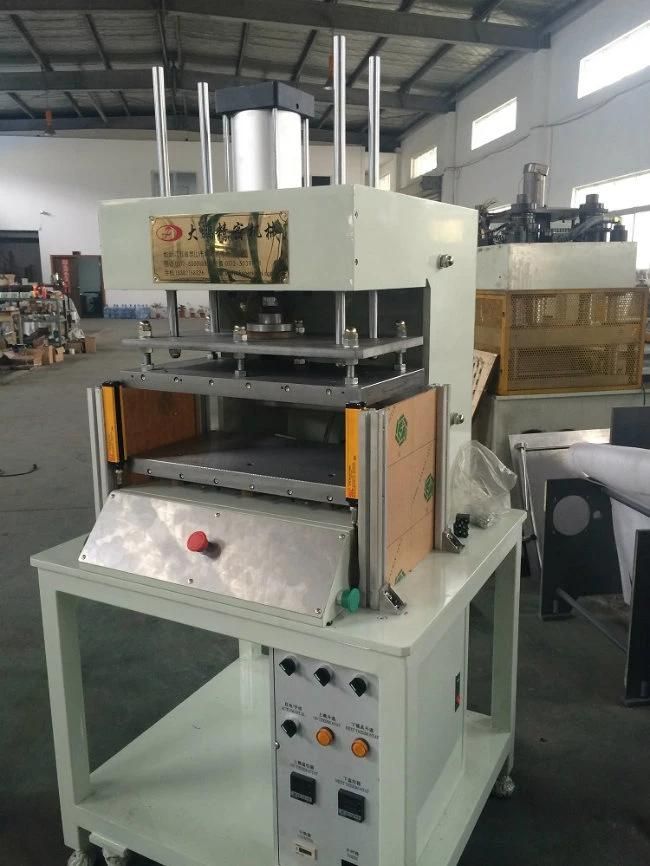

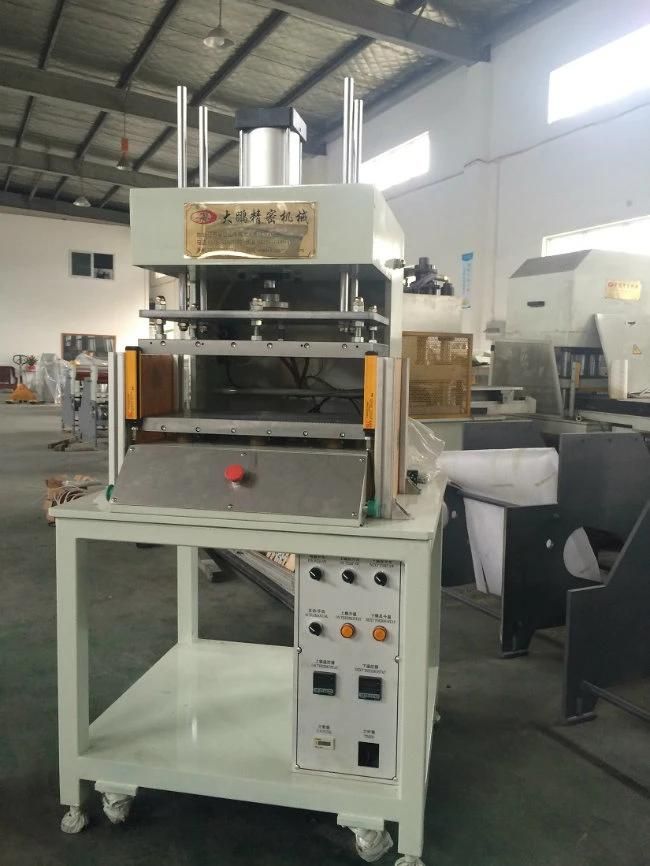

• Model NO.：DP-300RY
• Heating System：Electric
• Function：Pneumatic Hot Press Machine with Press Time Contr
• Mould Life：300, 000-1, 000, 000 Shots
• Automatic Grade：Semiautomatic
• Customized：Customized
• Warranty：12 Months
• Transport Package：Wodden Case
• Specification：SGS
• Trademark：DP
• Origin：Kunshan, Jiangsu, China.
• HS Code：8477409000
• Production Capacity：50 Sets,Month

namepresscutting force10 Toncutting area 300X300mm
Feature

• This hydraulic hot press is used for hot-press and lamination on no-sewing material, flywire, TPU film and a variety of other materials.

• This machine provides upper and lower heating functions. The hot press disc, specially designed with aluminum alloyed, heats quickly, has even temperature distribution, and is rigid and durable.

• Six temperature control systems.

• Alarm of temperature difference.

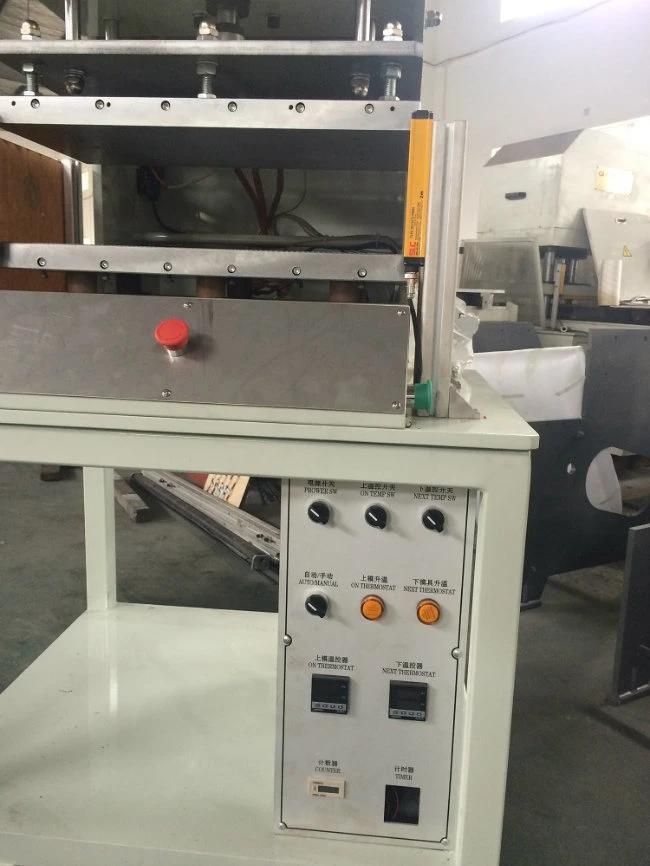

• Digitalized temperature and timing controls: precise temperature auto control and digital timing auto control to ensure precise timing and guarantee stable quality.

Specification Table

Area of hot disc

Travel

Electric heat power

Max. output

40*62cm

200mm

8.1kw

17Ton

Diameter of cylinder

Max. distance between upper and lower molds

Pressure of pump

Motor

∮125mm

180mm

140kg/cm²

3HP

Temperature

Time

Machine dimensions

Weight

Max.250ºC

1sec~99hr

127*73*170cm

805kg

Hydraulic hot press introduction: (hot pressing drum charter,  button convex hull machine,



hydraulic hot press, hot press molding machine)
Characteristic



1 adopts four-column.three-plate structure, the active plate paralleling with the working surface in high precision, four precise guide sleeves so that under the pressure of vertical high precision.
2 cylinder with adjustable high precision, lower dead point positioning accuracy can reach 0.01mm;
3 equipment hydraulic combination inside the frame, the structure is compact, the appearance is beautiful and generous;
Equipped with casters and foot cup 4 under the working platform, can be easily moved, labor saving and high efficiency;
5 other optional upper and lower templates to increase the heating device and imported intelligent temperature controller, temperature difference can be accurate to plus or minus 1 degrees, the upper and lower mold temperature can be separated from the control, easy to operate;
6 other optional intermediate template to increase the force sensor and the display, to accurately display the force of the product, to achieve the desired objectives;
7 another option to increase the electronic ruler or grating ruler and the display, accurately display the oil cylinder displacement status, to achieve the desired work purposes;

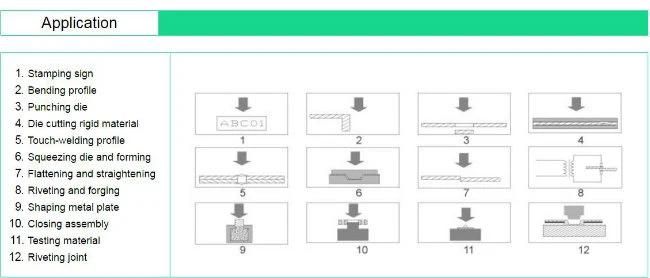

Scope of application:
1 various types of mobile phones or remote control silicone, plastic key punching, plastic products, the whole cutting;
2 various types of mobile phones, digital cameras, laptop LCD screen protective film cutting, all kinds of stickers, trademarks and other fine cut, cut half off, etc.;
3 all kinds of PV, PE, PC and other membrane switch, film panel, such as punch bulging bag, forming, etc.;
4 all kinds of portable computer keyboard soft circuit line pressing molding, etc.;
The series hydraulic machine a wide variety of PV, PE PC film switch, Guozi, thin film panel hit convex hull and so on. And some need heating molding products. Is the broad masses of the electronics industry, plastic industry, commonly used equipment.
