• Model NO.：DP-1000J
• Cutting：Wooden Laser Mold Semi Broken
• Video：Https:,Youtu.Be,Puit0rpgktm
• Transport Package：Wooden Case
• Specification：Automatic Semi-Broken Typen Precise Four-Column Cu
• Trademark：DAPENG
• Origin：Kunshan, Jiangsu, China
• HS Code：844110000
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. DP-1000J Cutting Wooden Laser Mold Semi Broken Video Https://Youtu.Be/Puit0rpgktm Transport Package Wooden Case Specification Automatic Semi-Broken Typen Precise Four-Column Cu Trademark DAPENG Origin Kunshan, Jiangsu, China HS Code 844110000 Production Capacity 100 Sets Per Year

Product Description

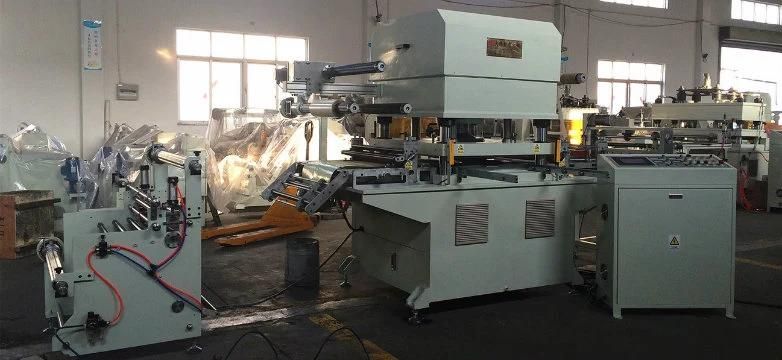

Series Automatic Semi-broken Type Precise Four-column cutting machine

Cutting Machine

USE AND CHARACTERISTICS:

1. The machine is applicable to continuous and large-batch semi-broken cutting operation of double-layer nonmetal materials by laser wood die cutter.

2. The conveying part adopts PLC control. The materials are driven by the servo motor and input from one side of machine, and after semi-broken die cutting, output from the other side, which can guarantee accurate feeding and stable operation. The feeding length can be
Adjusted conveniently through touch screen (human-machine interface).

3. The main machine adopts four-column guiding, double-crank connecting road balancing and four-column blocking fine-adjustment mechanism, which can guarantee the speed and accuracy of die cutting of machine. All movable connecting parts are equipped with central oil supply automatic lubricating device, which reduces the abrasion to the minimum extent.

4. The operation surface of cutting area is installed with photoelectric protection device, which can guarantee personal safety of operators.

5. The feeding part of the machine is allocated with tension control device, which makes materials maintain tension status during transportation and prevents materials from running off center.

6. Products of special specifications can be customized.

Maximum cutting force	400KN	400KN
Tension distance(mm)	50-200	50-200
Cutting area(mm)	600*600	1000*600
Motor power	3KW	3KW
G.W	2500kg	3000kg

multi-layer laminating --- die cutting --- waste rewinding --- cutting to pieces  are finished at one turn

the testing video : https://youtu.be/puiT0rPgktM

other similar machine videos as below https://youtu.be/WGzsM48bmdU  900mm hydraulic die cutting machine http://youtu.be/XOiQWX0AubE   Roll to sheet die cutting machine   https://youtu.be/oaS9MkdhUeY   Through cut    https://youtu.be/x5U3UqMjJgc     multi-layer laminating -- die cutting -- rewinding -- perforation --- cutting  http://youtu.be/W0TNeBHKWA0?list=UUKzn2_YUjZc_nkjjFRC07NQ

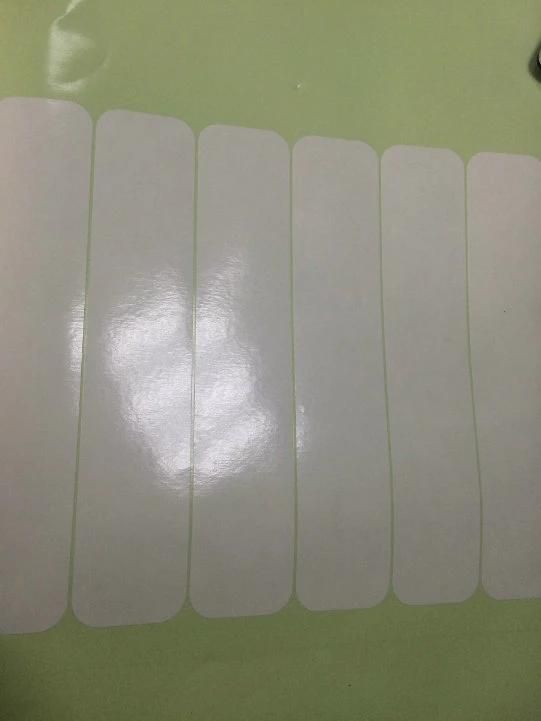

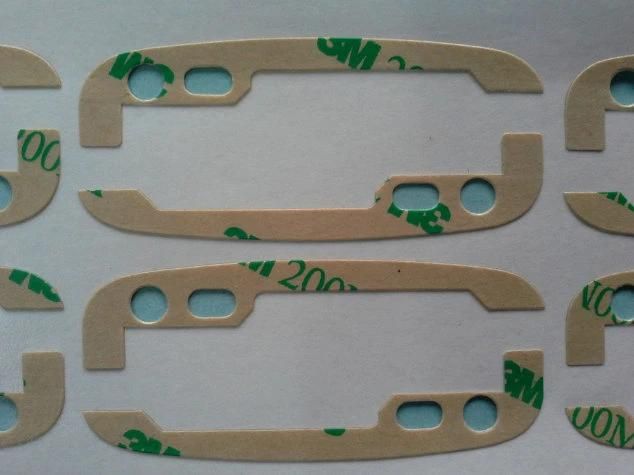

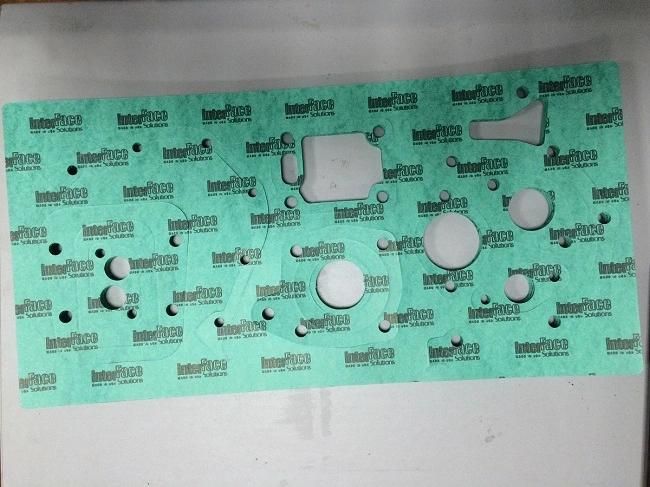

Finished samples
