Cutting & Fold-bend Machine

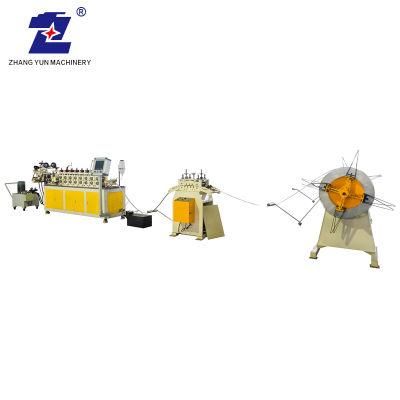

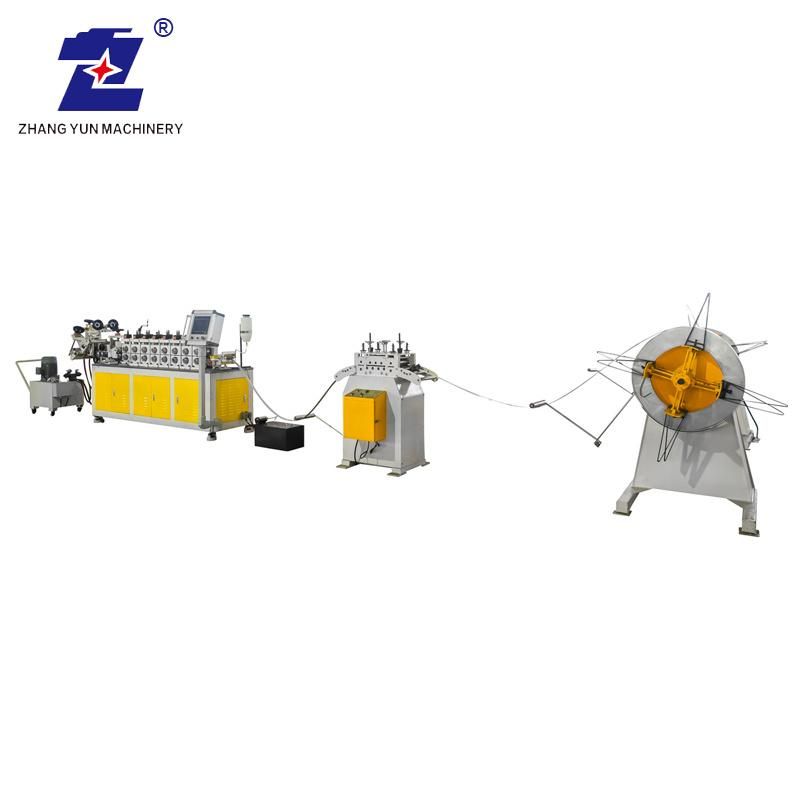

Low Power Consumption Automatic Bucket Hoop Ring Forming Making Machine

Zhangjiagang City Zhangyun Machinery Manufacturing Co., Ltd.
  • Warranty:1-year
  • Condition:New
  • Certification:ISO 9001:2008, CE
  • Automation:Automatic
  • Suitable for:Aluminum, Carbon Steel, Stainless Steel
  • Type:Roll Forming Machine

Base Info

  • Model NO.:ZY-GY140
  • Voltage:380V
  • Power:24.5kw
  • Dimension:4*1*1.5m
  • Material:Stainless Steel
  • Transport Package:Container or Wooden Case Hoop Ring Making Machine
  • Trademark:Zhangyun
  • Origin:Zhangjiagang City
  • HS Code:8455221000
  • Production Capacity:15sets,Month

Description

Basic Info.

Model NO. ZY-GY140 Voltage 380V Power 24.5kw Dimension 4*1*1.5m Material Stainless Steel Transport Package Container or Wooden Case Hoop Ring Making Machine Trademark Zhangyun Origin Zhangjiagang City HS Code 8455221000 Production Capacity 15sets/Month

Product Description

Technical Specifications:
1.Equipment Floor Area:4*1*1.5m(L*W*H)
2.Feeding Direction: From Right to Left
3.Voltage:3 Phase, 400V,50Hz
4.Air Supply: Flow Rate:0.5m³/min; Pressure: 0.6MPa
5.Hydraulic Fluid:46#
6.Gear Oil: 18# Hyperbolic gear oil
7.Width of Strip ≤80mm
8.Thickness of Strip ≤ 2.5 mm
9.Thickness of Strip ≤ 2.5 mm
10.Total Power: approximately 24.5KW
11.Ring range: 100~400 mm

Electric Control System:
There are two modes of operation: manual and automatic. With manual and automatic switching function: in the manual state, can stand-alone operation, easy maintenance; in the automatic state, the full range of production run, the order to start; full line with emergency stop button, easy to deal with emergencies, to ensure that equipment and operators Safety.


Low Power Consumption Automatic Bucket Hoop Ring Forming Making Machine
Low Power Consumption Automatic Bucket Hoop Ring Forming Making Machine
Low Power Consumption Automatic Bucket Hoop Ring Forming Making Machine
Low Power Consumption Automatic Bucket Hoop Ring Forming Making Machine


FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set.
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference.
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel
coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
