Cutting & Fold-bend Machine

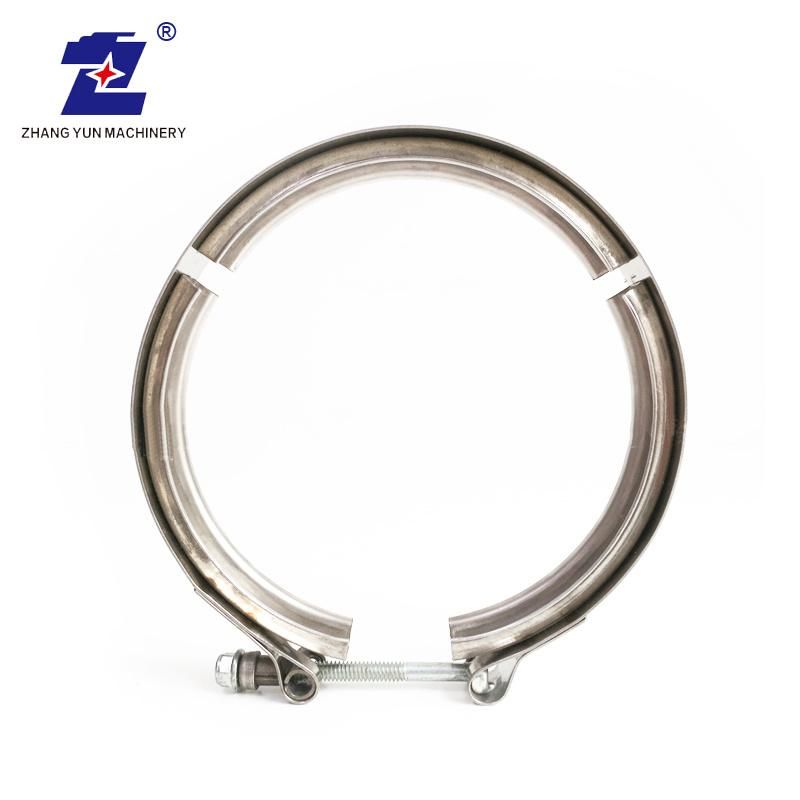

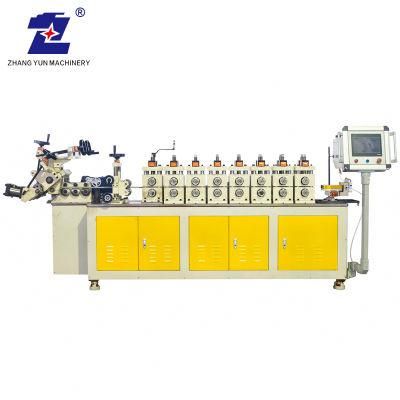

Coupling with V-Band Barrel Hoop Clamp Roll Forming Machine

Zhangjiagang City Zhangyun Machinery Manufacturing Co., Ltd.
  • Warranty:1-year
  • Condition:New
  • Certification:ISO 9001:2008, CE
  • Automation:Automatic
  • Suitable for:Aluminum, Carbon Steel, Stainless Steel
  • Type:Roll Forming Machine

Base Info

  • Model NO.:ZY-GY120
  • Voltage:380V
  • Power:24.5kw
  • Dimension:4*1*1.5m
  • Material:Stainless Steel
  • Transport Package:Container or Wooden Case Hoop Ring Making Machine
  • Trademark:Zhangyun
  • Origin:Zhangjiagang City
  • HS Code:8455221000
  • Production Capacity:15sets,Month

Description

Basic Info.

Model NO. ZY-GY120 Voltage 380V Power 24.5kw Dimension 4*1*1.5m Material Stainless Steel Transport Package Container or Wooden Case Hoop Ring Making Machine Trademark Zhangyun Origin Zhangjiagang City HS Code 8455221000 Production Capacity 15sets/Month

Product Description

Technical Specifications:
1.Equipment Floor Area:4*1*1.5m(L*W*H)
2.Feeding Direction: From Right to Left
3.Voltage:3 Phase, 400V,50Hz
4.Air Supply: Flow Rate:0.5m³/min; Pressure: 0.6MPa
5.Hydraulic Fluid:46#
6.Gear Oil: 18# Hyperbolic gear oil
7.Width of Strip ≤80mm
8.Thickness of Strip ≤ 2.5 mm
9.Thickness of Strip ≤ 2.5 mm
10.Total Power: approximately 24.5KW
11.Ring range: 100~400 mm

Electric Control System:
There are two modes of operation: manual and automatic. With manual and automatic switching function: in the manual state, can stand-alone operation, easy maintenance; in the automatic state, the full range of production run, the order to start; full line with emergency stop button, easy to deal with emergencies, to ensure that equipment and operators Safety.
Coupling with V-Band Barrel Hoop Clamp Roll Forming Machine
Coupling with V-Band Barrel Hoop Clamp Roll Forming Machine

Coupling with V-Band Barrel Hoop Clamp Roll Forming Machine
Coupling with V-Band Barrel Hoop Clamp Roll Forming Machine

FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set.
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference.
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel
coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
