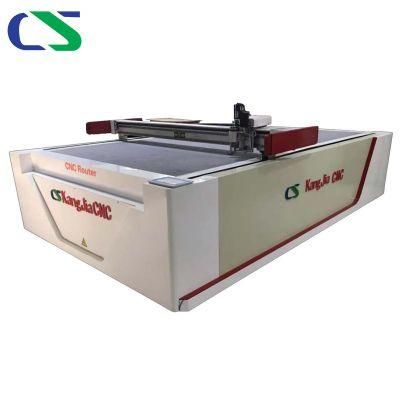

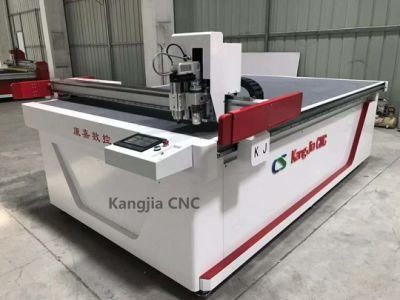

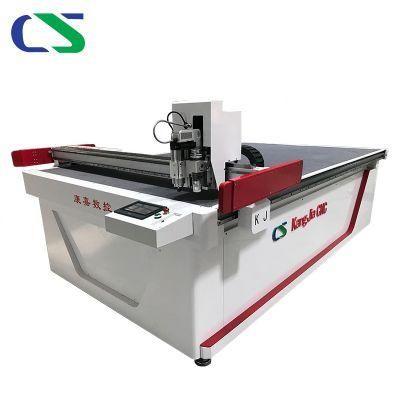

Hot Sale Vibrating Knife Cutter Leather Bag Luggage Cutting Machine with Factory Price.
Jinan Kang Jia CNC Equipment Co., Ltd.- Waterproof Rating：IPX-0
- Warranty：1-year
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Control：Semi-Automatic
- Application：Paper, Plastic, Leather, Fabric
Base Info
- Model NO.：KJZD-1625
- Power Source：Electric
- Layout：Horizontal
- Effective Cutting Area：2500mm*1600mm
- Cutting Thickness：0.1-50mm
- Cutting Accuracy：±0.1mm
- Cutting Speed：Max. 140m,Min
- Material Fixed Mode：VAC-Sorb
- Location Mode：Infrared Laser
- Fan Power：9kw
- Voltage：110V,220V,380V, 50Hz , 60Hz
- Drive Servo Motor：Panasonic , FUJI , Yaskawa Optional
- Transport Package：Wooden Box
- Specification：1600m*2500*1315
- Trademark：kangjia
- Origin：Jinan China
- HS Code：8461500090
- Production Capacity：100 Sets , Month
Description
Technical Parameters:Cutting Tools Recommended Various tools(According to the material equipped with appropriate tools) Rated Power 11kw Max. Cutting Speed 1200mm/s No-load Speed 1500mm/s Cutting Thickness 0.1-110mm (depending on the materials) Cutting Accuracy ±0.1mm Transmission Interface Ethernet Drive System Servo motor, linear guide rail, rack and pinion Material Fixed Mode Vacuum adsorption Format Supported DXF, PLT Operation Property Online/offline operation, continuous cutting with high efficiency, 7*24 hours with zero downtime Safety Device Infrared sensing device, 4 emergency stop buttons, intelligent anti-collision device Power Supply AC 110V/220V/380V, 50/60Hz, single/two/three phase S/N Items Brand Details
1
Servo Motor
Panasonic (Japan)X: 400w (width) Y: 750w (length) Z: 100w (up and down) W: 100w (rotary)
2
Linear Guide Rail
PMI (Taiwan, China)Large loading capacity, high transmission accuracy & high transmission speed
3
Ball Screw
TBI (Japan)High precision and minimal reverberation gap
4
LCD Control Panel
Kangjia (China)Size: 7 inch Resolution: 800x480 Voltage: 10.5-28VDC
KWH: 1A@12VDC, 450mA@24VDC
5

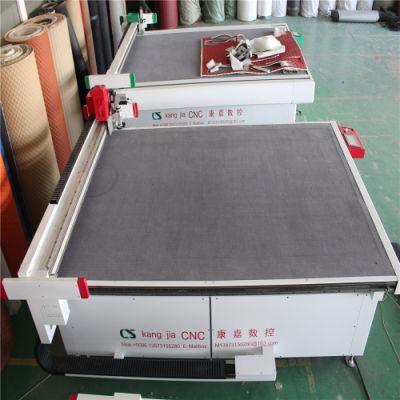

Vacuum Adsorption Platform
Kangjia (China)The platform is made of 6-series aluminum alloy, and the built-in honeycomb support structure is made of 7-series aviation aluminum, which ensures that the platform will not be deformed for a long time
6
Underlay
Ammeral Beltech (Netherlands)The underlay is made of high density polyester fiber. Its life time is longer. It provides great cutting resistance. This cover not only protest blades well, but also provides wonderful breathable channel to guarantee good hold-down.
2.5mm or 4mm can be chosen
Exhibition
Packing and delivery
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Our service
Before sales:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp / Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. If necessary, the fields service can be provided.
FAQ
Q:I want to buy this machine,what suggestion can you give?
A:Please tell me what material do you process and what's the size of your material?
Q:What's the delivery cost & time?
A: Please tell me your sea port name,I check shipping cost,after production we will deliver ASAP.
Q:Have you exported to our country?
A:We have been in this field for 5 years,we have CE,ISO,SGS certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
Q:This is the first time I use this this kind of machine,is it easy to operate?
A:There are English manual or guide video that show how to use the machine,if there is still have any question,please contact us by e-mail/skype /phone/trademanager online service at any time.
Q:If machine have any problem after I receive it ,how can I do ?
A:Free parts send to you in machine warranty period if machine have any problem ,if the parts less than 0.5kg,we pay the postage.
1
Servo Motor
Panasonic (Japan)
2
Linear Guide Rail
PMI (Taiwan, China)
3
Ball Screw
TBI (Japan)
4
LCD Control Panel
Kangjia (China)
KWH: 1A@12VDC, 450mA@24VDC
5
Vacuum Adsorption Platform
Kangjia (China)
6
Underlay
Ammeral Beltech (Netherlands)
2.5mm or 4mm can be chosen
7 | Vacuum Pump | Sondar (Taiwan, China) | The power is 9KW, the air volume reaches 1050M3/H, and the maximum wind pressure is -36kpa, which can effectively ensure the adsorption force of the machine, so that the material will not be displaced during the cutting process and affect the cutting effect |

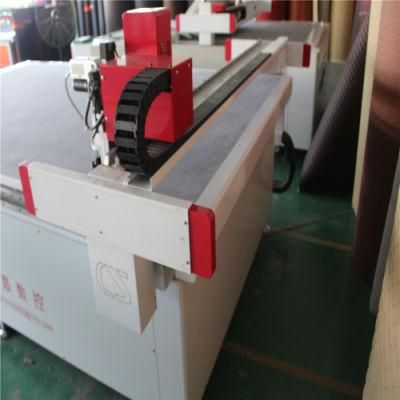

8 | Drag Chain | JFLO (China) | Quiet moving, quicker moving speed, easy long travel, easy assembly, easy vertical, easy circular, long service life |
9 | Gears & Racks | J&T (Taiwan, China) | We apply the rack-fixing and gear-moving methods, therefore, the machine is very expandable, so that the extension of the machine in the length is basically unlimited. The gear and rack of our machine is used for the final transmission part |
10 | Planetary Reducer | Newgear (China) | The planetary reducer decelerates the rotate speed of the input end in proportion by the transmission way of the planetary gears. Our Y-axis uses a 1:3 reduction ratio reducer, then the servo motor rotates 3 turns, the output rotates 1 turn, and the torque is increased. Used to match the cutting speed, load capacity and response of our machines. We use a 5 arc minute (1 degree = 60 arc minutes) reducer |
11 | Electronic Components | Chint (China) Omron (Japan) | Main switch: Chint Voltage: 400V Current: 40A. To zero switch: Omron. Airbreak switch: Chint. Contactor: Chint. Tripping protector: Chint Voltage: 690V |
Packing and delivery
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Our service
Before sales:
- Reply you within 24 hrs for your inquiry or question.
- Learn your detail requirements and what material you will cut. Then recommend the good solution that suit for you.
- Sign sales contract and receive the deposit.
- Arrange production.
- Track the production schedule.
- Debug machine.
- Pack with wooden box and shipping.
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp / Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. If necessary, the fields service can be provided.
FAQ
Q:I want to buy this machine,what suggestion can you give?
A:Please tell me what material do you process and what's the size of your material?
Q:What's the delivery cost & time?
A: Please tell me your sea port name,I check shipping cost,after production we will deliver ASAP.
Q:Have you exported to our country?
A:We have been in this field for 5 years,we have CE,ISO,SGS certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
Q:This is the first time I use this this kind of machine,is it easy to operate?
A:There are English manual or guide video that show how to use the machine,if there is still have any question,please contact us by e-mail/skype /phone/trademanager online service at any time.
Q:If machine have any problem after I receive it ,how can I do ?
A:Free parts send to you in machine warranty period if machine have any problem ,if the parts less than 0.5kg,we pay the postage.
