• Model NO.：KJPD-1625
• Power Source：Electric
• Layout：Horizontal
• Effective Cutting Area：2500mm*1600mm
• Cutting Thickness：0.1-50mm
• Cutting Accuracy：±0.1mm
• Cutting Speed：Max. 140m,Min
• Material Fixed Mode：VAC-Sorb
• Location Mode：Infrared Laser
• Fan Power：9kw
• Voltage：110V,220V,380V, 50Hz , 60Hz
• Drive Servo Motor：Panasonic , FUJI , Yaskawa Optional
• Transport Package：Wooden Box
• Specification：1600m*2500*1315
• Trademark：kangjia
• Origin：Jinan China
• HS Code：8461500090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. KJPD-1625 Power Source Electric Layout Horizontal Effective Cutting Area 2500mm*1600mm Cutting Thickness 0.1-50mm Cutting Accuracy ±0.1mm Cutting Speed Max. 140m/Min Material Fixed Mode VAC-Sorb Location Mode Infrared Laser Fan Power 9kw Voltage 110V/220V/380V, 50Hz / 60Hz Drive Servo Motor Panasonic / FUJI / Yaskawa Optional Transport Package Wooden Box Specification 1600m*2500*1315 Trademark kangjia Origin Jinan China HS Code 8461500090 Production Capacity 100 Sets / Month

Product Description

CNC Automatic Oscillating Knife EVA Slipper Cutting Machine Shoe Making Machinery

 Machine Introduction:

Integrated Welding Steel Constructed Table
The machine is built with a durable, stable, 6mm all-steel tube frame which significantly reduces vibration and gives the operator tight control for precise cutting.

Conveyor System
Designed for easy loading and unloading of materials, the Conveyor System provides operators a fast advance control of material and serves as a vacuum cutting surface ideal for roll materials.

Digital Servo Drive System
Brushless AC Servo Motors, guide rail, rack and pinion are integrated into the machine providing both velocity and torque with uncompromised accuracy for cutting applications.

Safety Device
Equipped with infrared automatic sensor device and four emergency stop buttons, the Safety Device provides a safe working environment.


Accurate and Stable Working Table
The cutting table is built with 7 series aviation aluminum which contains a honeycomb structure inside, sturdy, high-precision, non-deformable, stable for long-term running.

Regional Vacuum Adsorption System
The vacuum adsorption area can be selected according to the size of the materials. By using individual vacuum controls for each area, the vacuum system greatly reduces the need for masking open areas of the table.

Motion Control system
The motion control system consists of a motion controller and a LCD touch control panel. It can make the cutting process smooth, efficient, perfect. And the control panel is quite easy to operate with English interface.

Cutting Heads
The machine can be equipped with one cutting head or multiple cutting heads. Different cutting tools can be changed and mounted on the cutting heads for different cutting needs.

Model	KJCT-1625 (can be customized)
Fan power	9kw
Voltage	110V/220V/380V±10%,50HZ 60HZ
Working characteristic	Computer operation and cutting machine at the same time,complete data transmission quickly,can be used continuously
Cutting speed	max. 140m/min
Cutting thickness	0.1-50mm
Effective cutting area	2500mm*1600mm
Cutting accuracy	±0.1mm
Overall dimension	3260*2120*1315mm
Cutting materials	Corrugated paper,plastic corrugated sheet,grey board,ivory board,film,composite materials,leather ,fabric,slab rubber,pear wool,sponge,KT board ets.
Multifunctional head for different cutter	Half knife, full knife, punching roller, V-cutter, milling knife, pneumatic knife, eletric knife, Circular knife (round knife / rotary knife); pin
Location mode	Infrared laser
Material fixed mode	Vac-sorb
Transmission interface	Network transmission ( IDE / UART / RJ45 )
Data format	DFX / HGPL
Control system	LED touch screen
Driving mode	Racking drive
Drive Servo motor	Panasonic / Fuji / Yaskawa optional
Guide rail	YINTAI 20 , YINTAI 15
Body structure	Body welding
Suction case	Aluminum case
Certification	CE/SGS,ISO9001/ISO14001/ISO18001
Safety device	Mechanical anti-collision device / infrared radiation / emergency key

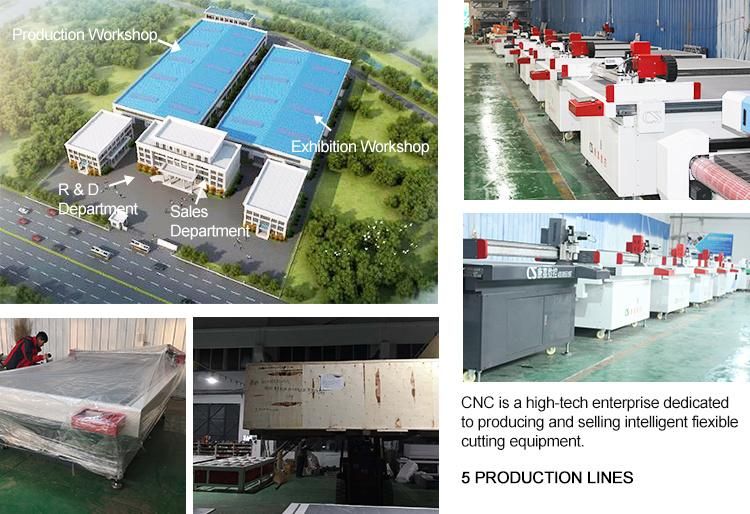

About us
