• Model NO.：EPB-30T1200
• Condition：New
• Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
• Automation：Automatic
• Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet
• Type：Press Brake
• System：Da53t
• Backgauge：500mm Distance, Ball Screw, Linear Guide Rail
• Bending Angle Programmed：Yes
• Max Bending Thickness：4mm
• Max Bending Legnth：1000mm

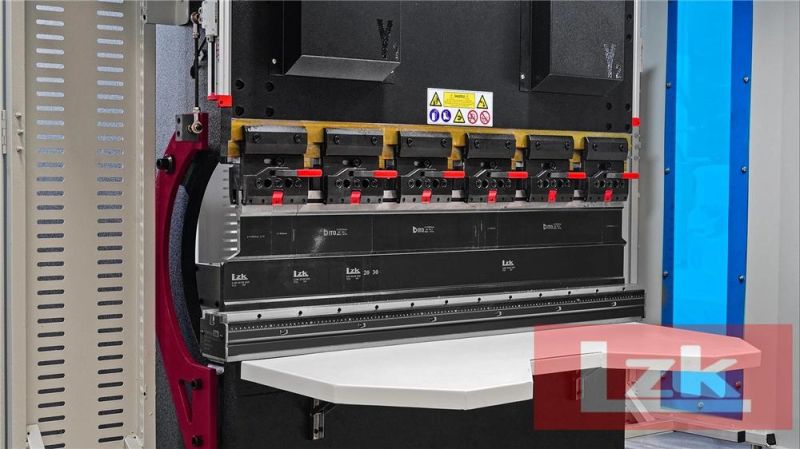

• Clamping System：Quick Clamp
• Main Motor：Siemens
• Electrical Components：Schneider
• Hydraulic Valve：Rexroth
• Weight：2500kg
• Transport Package：20gp
• Specification：1200X1300X1750mm
• Trademark：LZK
• Origin：China
• HS Code：8462219000
• Production Capacity：100 Sets,Month
• Package size per unit product：1800.00cm * 1500.00cm * 2230.00cm
• Gross weight per unit product：2800.000kg

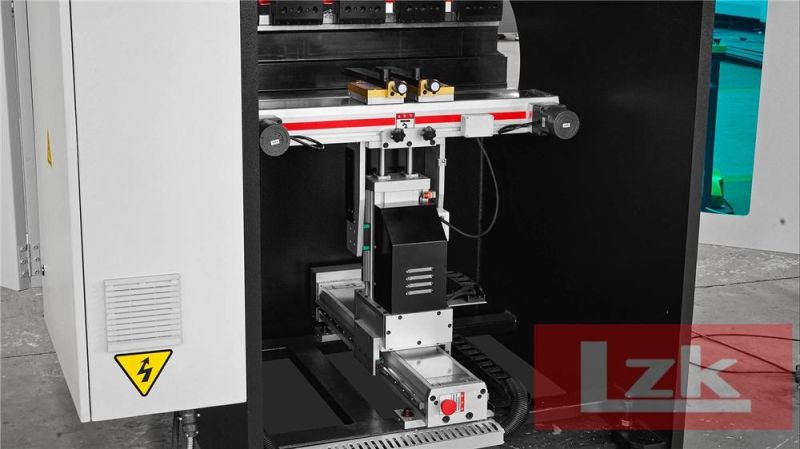

Energy saving type cnc press brake with main motor as servo motor. 1. The electro-hydraulic servo CNC bending machine adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.2. The electro-hydraulic servo CNC bending machine adopts a full-featured back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the backgauge. Imported originals such as guide rails, screws and bearings are used to ensure the accuracy of the back gauge.3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine.DA53T CNC systemThe new compact DA-53T adds a state of the art complete touch control solution for synchronized press brake. This panel based control, stadard capable of controlling up to 4 axes, can be intergrated in cabinets as well as used in an optional pendulant arm housing. Its 10.1'' wode screen high resolution color TFT, with industrial grade multi touch technology, gives access to the proven Delem user-interface. It enables direct 'hot-key' touch navigation between product programming and actual production. Functions are located where needed, offering optimised ergonomics throughout the entire application. Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-production work sequence. USB interfacing enables fast product and tool backup using USD memory sticksThe standard machine control functions are Y1, Y2, X R-axis and crowning. The second back gauge axis can also be set as Z axis. Quick/fast clamping changing system, easy to operateTool is with heat-treatment, can be segmented to customer's need. Convenient working table design for using.Two servo motor to maintain high precision, high effiency, low noise, and gives longer using lifeBackgauge is with X, R axes cnc controlledThe Z1, Z2 axes are controlled electrically, not through the systemItaly GIVI grating ruler has been used for a long time with good and stable performance.Russia customer, manufacturer of Yacht, we went there for installation and commissioningGerman customer bought our tandem press brake in good use.Customer from differnent came for inspection and cooperation
