• Model NO.：EPB-130T3200
• Condition：New
• Certification：ISO 9001:2000, CE
• Automation：Automatic
• Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
• Type：Press Brake
• CNC System：Esa S640
• Axes：Y1, Y2, X, R, Z1, Z2
• Max Bending Length：3200mm
• Max Bending Thickness：5mm for 3m Sheet
• Weight：9500kg
• Backgauge：600mm Distance, Ball Screw and Linear Guide Rail
• Main Motor：Servo Motor
• Main Motor Power：5.7kwx2
• Oil Volume：34.5X2l
• Hydraulic System：Bosch-Rexroth
• Clamping System：Wila Hydraulic Clamping System
• Grating Ruler：Italy Givi
• Transport Package：20gp
• Specification：3850× 1850× 2600mm
• Trademark：LZK
• Origin：Maanshan, Anhui Province, China
• HS Code：8462219000
• Production Capacity：100 Sets,Month
• Package size per unit product：3850.00cm * 1850.00cm * 2600.00cm
• Gross weight per unit product：9500.000kg

--EPB full servo bending machines are manufactured in accordance with the most stringent quality standards. The Q345E steel frame is annealed at 1200 degrees before being precisely machined and carefully assembled by experienced professionals.

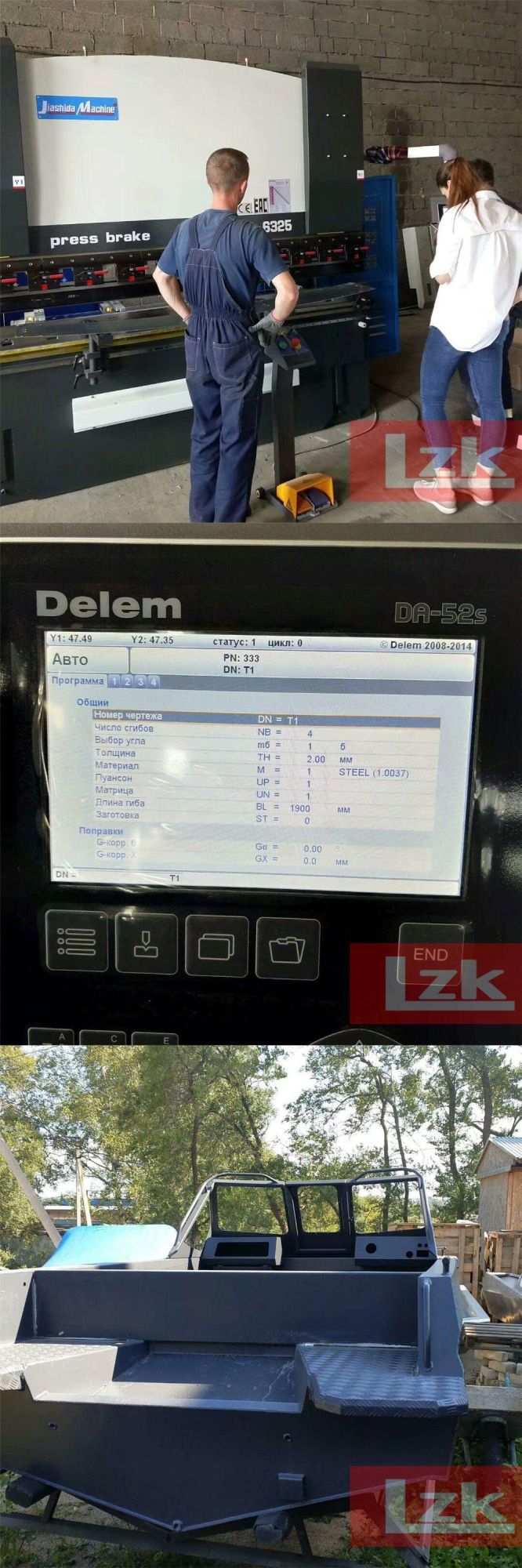

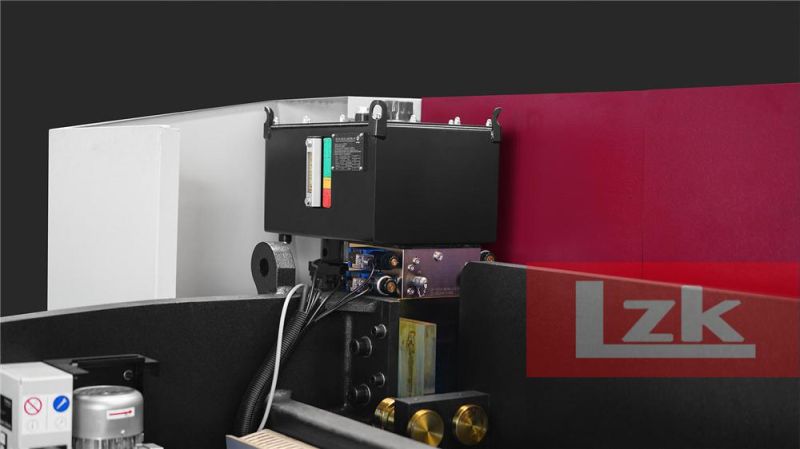

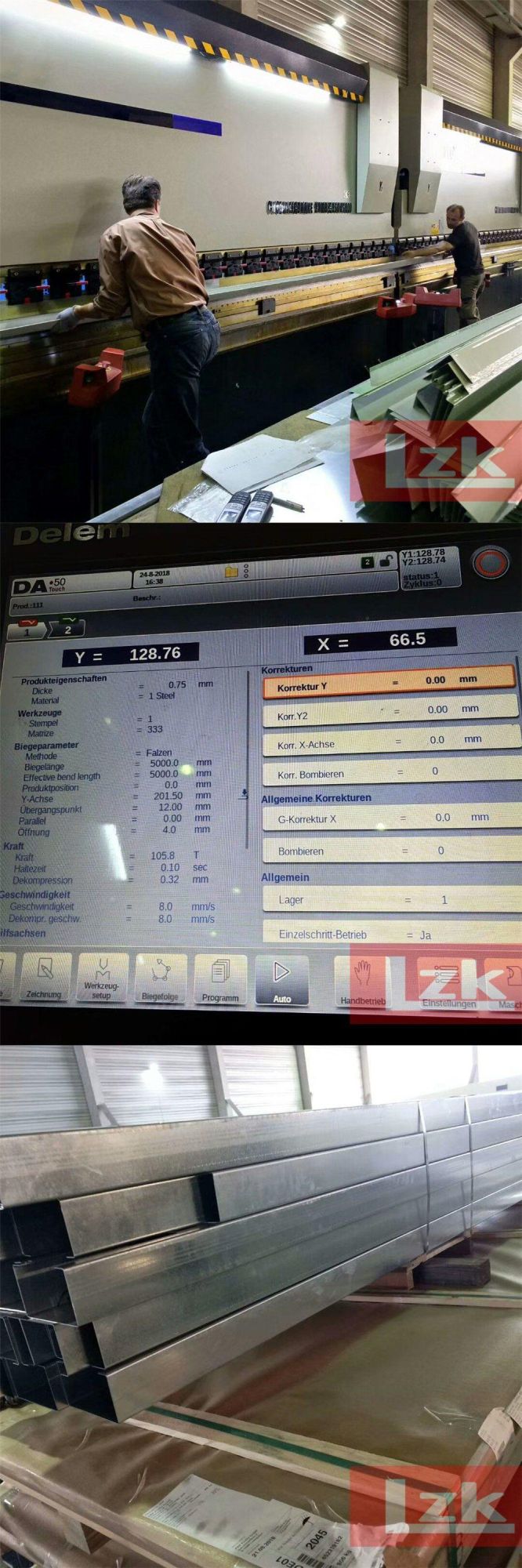

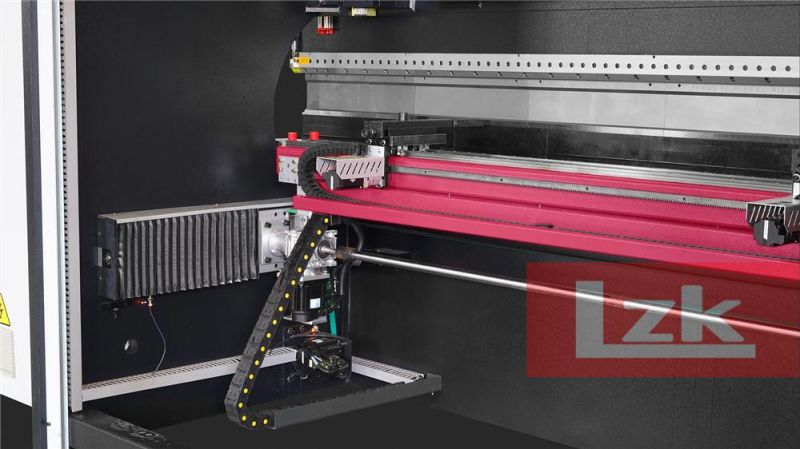

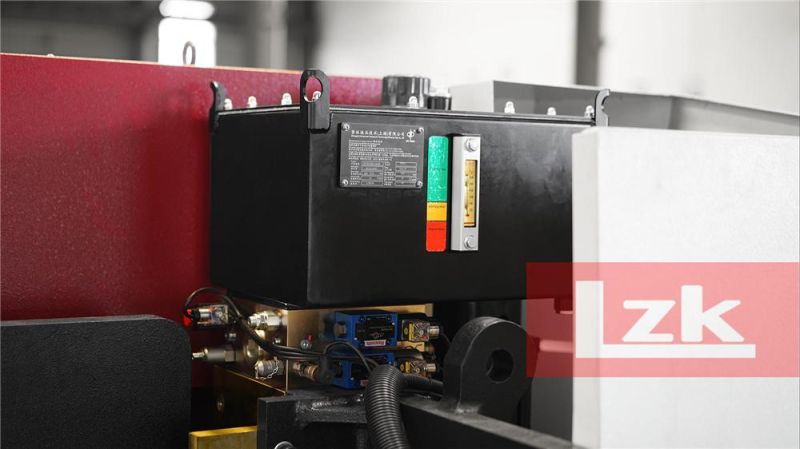

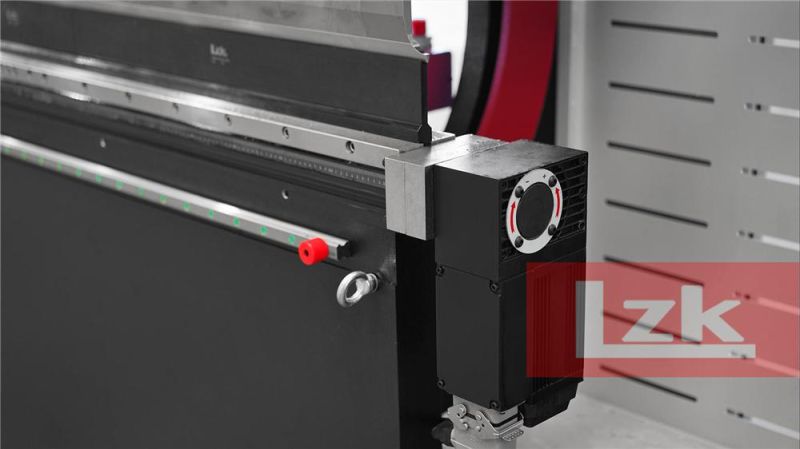

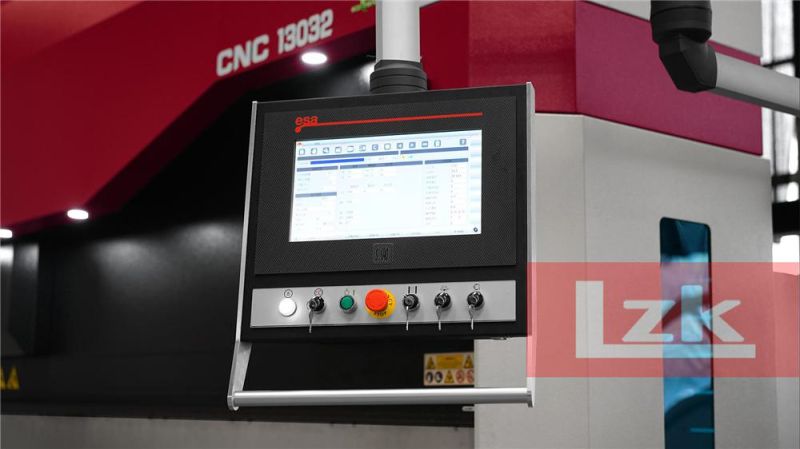

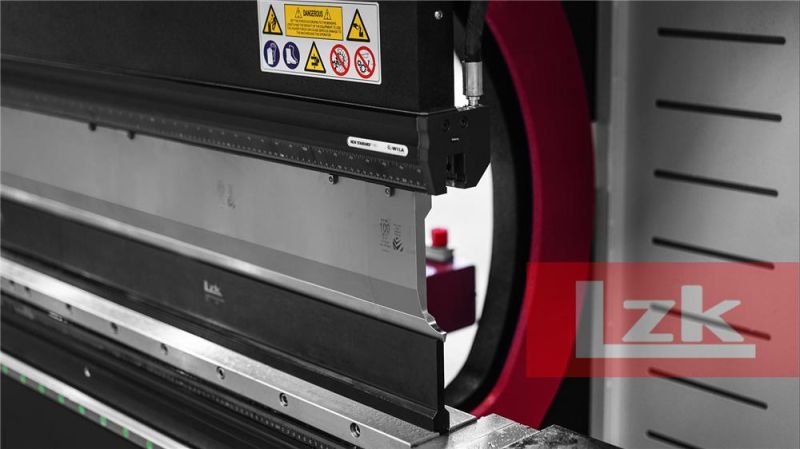

--Because of their high speed and high precision, they are widely used in robotic bending cells; EPB works with high-end robot manufacturers such as Kawasaki, Kuka, and Yaskawa to ensure that their machines are well-suited for high-speed robotic bending applications.With ESA S640 control system, can also be replaced with DELEM system, LZ1000 system--The EPB bending machine is equipped with WILA hydraulic clamping system--The EPB bending machine is equipped with mechanical cnc crowning/compensation system --The EPB bending machine works on the principle of dual servos, and the Y1 (left plunger) and Y2 (right plunger) axes are controlled by powerful tuke servo motors. This design can achieve the highest speed and accuracy, and ensure extremely low operating costs.Back gauge with X, R, Z1, Z2 axes, servo motor controlledRussia customer, manufacturer of Yacht, we went there for installation and commissioningGerman customer bought our tandem press brake in good use.
Customer from differnent came for inspection and cooperation
