• Model NO.：PEL-800
• Type：Cnc Bending Machine
• Software：Professional Bending Software
• Systems：Windows7,Windows XP
• Color：Blue
• Notching：Double Notching
• Control：Servo Motor and Driver
• Computer Included：Yes
• Bending Material：Aluminum, Ss, Iron, Galvanized Plate
• Bending Thickness：0.4-1.2mm
• Working Voltage：110V,220V
• Air Compressor：0.6MPa

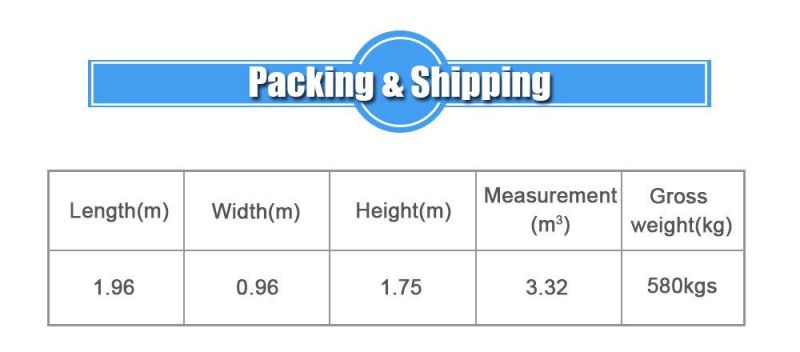

• Transport Package：Professional Wood Craftcase
• Specification：CE
• Trademark：Perfect Laser
• Origin：Hubei Wuhan
• HS Code：8462219000
• Production Capacity：1000 Units,Month

Basic Info.

Model NO. PEL-800 Type Cnc Bending Machine Software Professional Bending Software Systems Windows7/Windows XP Color Blue Notching Double Notching Control Servo Motor and Driver Computer Included Yes Bending Material Aluminum, Ss, Iron, Galvanized Plate Bending Thickness 0.4-1.2mm Working Voltage 110V/220V Air Compressor 0.6MPa Transport Package Professional Wood Craftcase Specification CE Trademark Perfect Laser Origin Hubei Wuhan HS Code 8462219000 Production Capacity 1000 Units/Month

Product Description

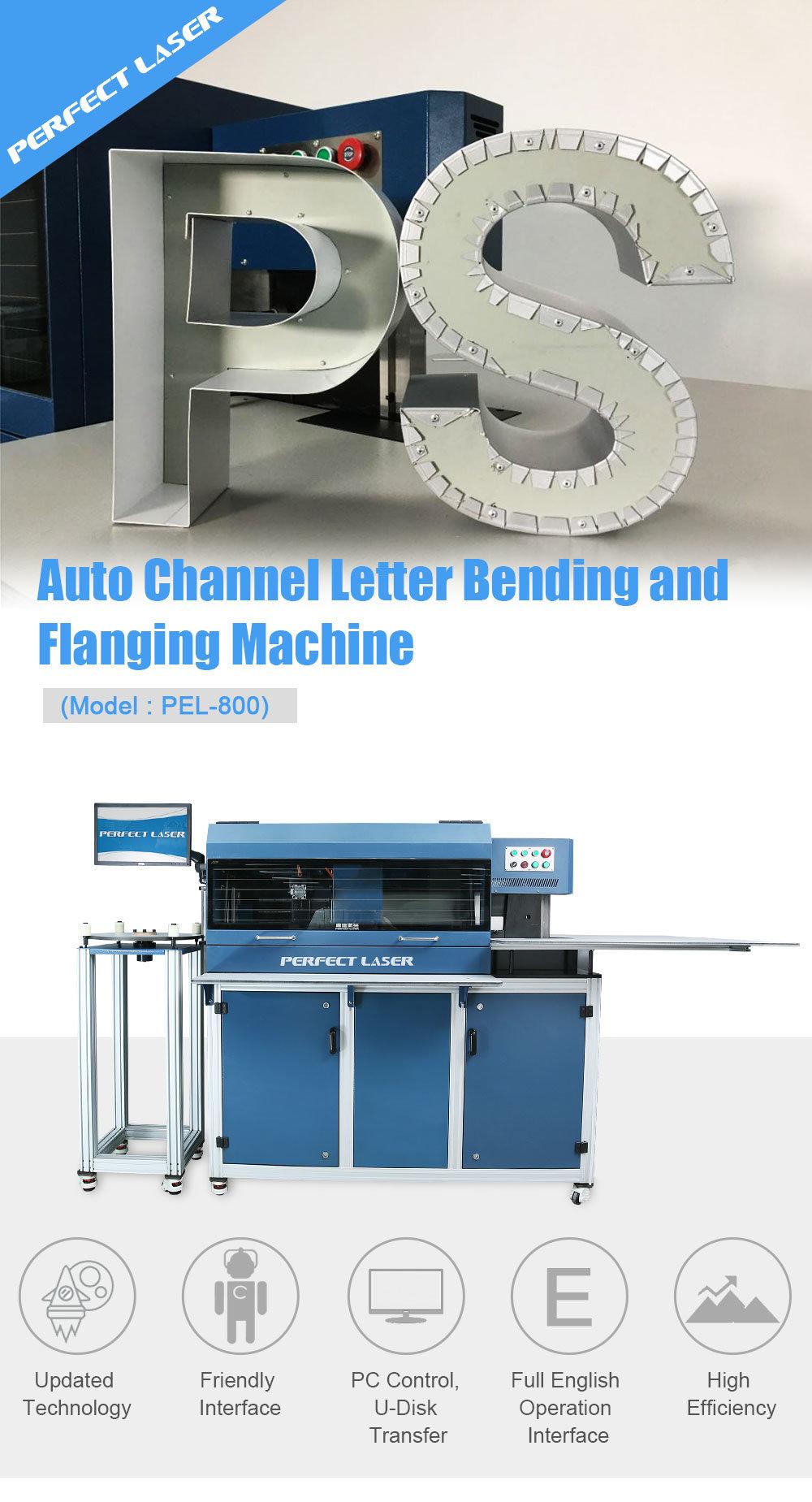

3D Metal Channel Letter Signs Advertising Aluminum Flanging Bending Machine
(Model:PEL-800)
Contact: Susie

Product Description:

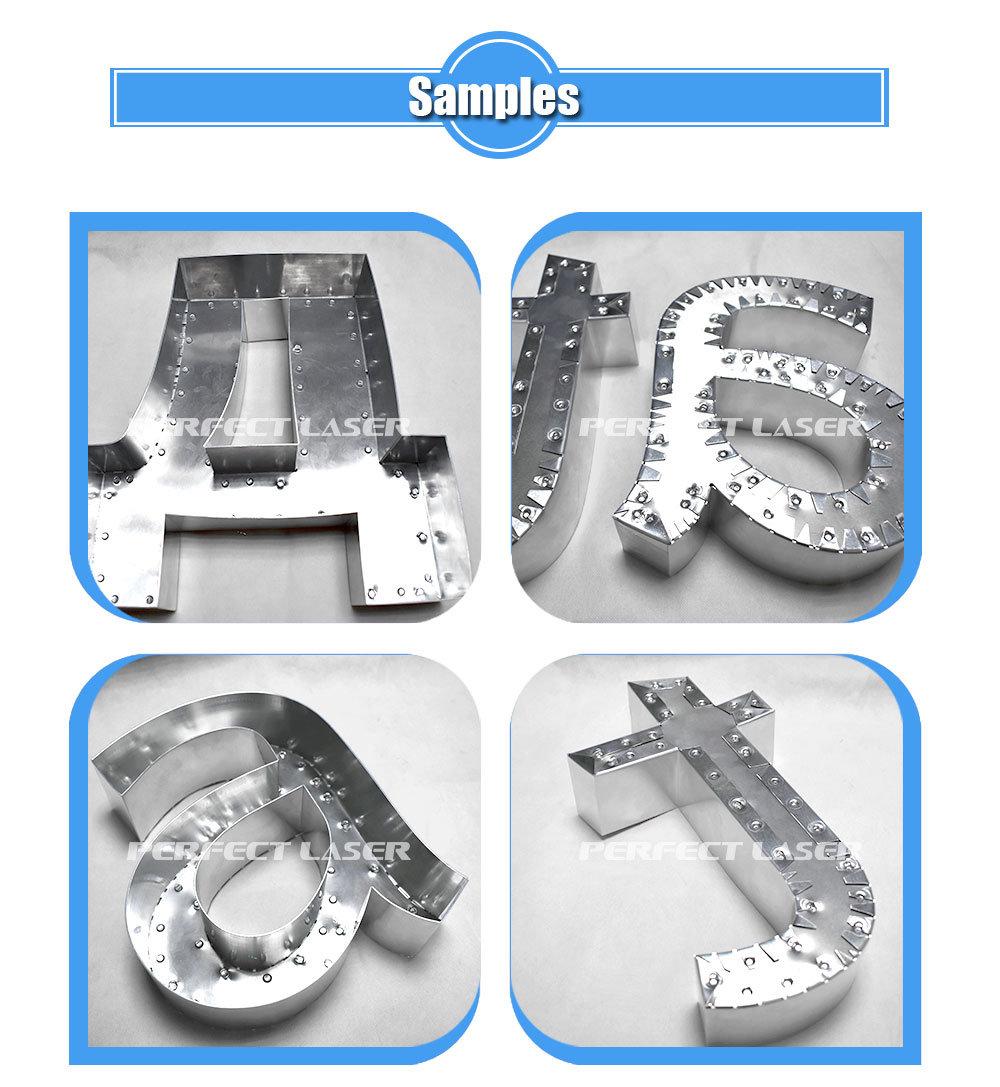

Automatic channel bending and flanging machine PEL-800 adds a set of teeth cutting bending modules based on the 700 channel bending and flanging machine, and it uses a multi arbor bending system and quick-change system mold for precision bending. It is not only with all features of the PEL-700 model but also has a flat aluminum coil automatic gear cutting and folding function. It is the preferred high-end equipment for upscale square landscape characters, stainless steel letters, punching letters, resin letters, giant luminous characters, etc.

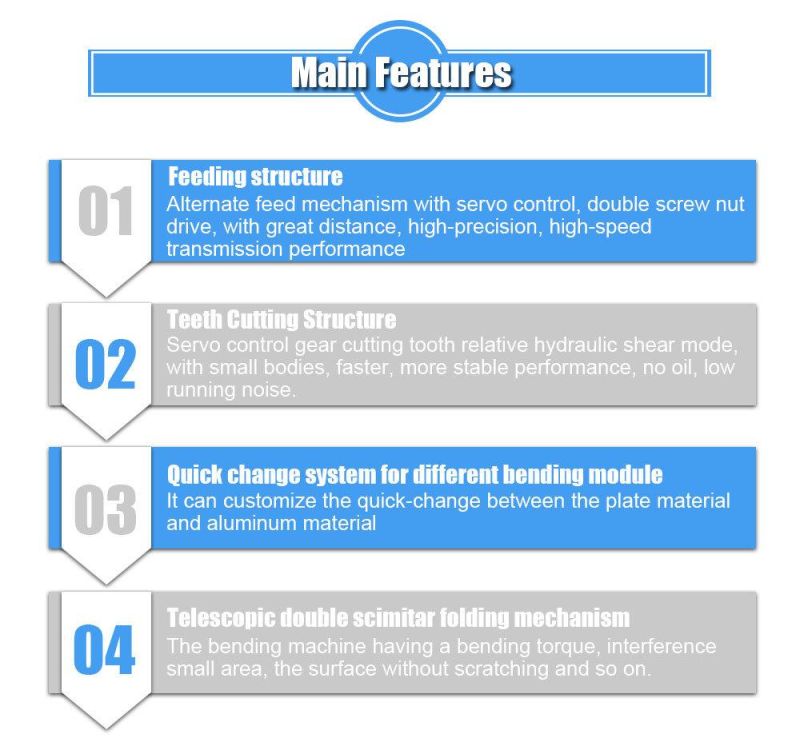

Product Features
1. Servo motor control notching and flagging mechanism, aluminum brake bender uses a servo motor to control notching mechanism with characters of smaller size, higher speed, more stable property, no oil contamination, and lower noise.
2. V-shaped slotting mode
The Channel Bending and Flanging Machine control slot depth intelligently and sets total slot depth, single-slot depth, and slot numbers; servo motor control and high precision nut driver have advantages of high slot speed, high accuracy, and constant torque; V slotting surface is smooth and doesn't have any burr. The depth is consistent. The R angle id not obvious when bending, which ensures the outline of letters clear and beautiful.
3. Closed-loop control system
All Perfect Laser's channel letter bender price is strictly checked by authorities and the channel letter bender notching all have a material tracking system. The Channel Bending and Flanging Machine can real-timely monitor any material stretching and slipping during bending, which ensures closed-loop control of material length and precise match of bent letter and panel face letter.
4. Telescoping double bending bars mechanism
The core of the bending machine is the arc shape effect. Perfect Laser automatic channel letter bending machine uses servo control, high rigid gear transmission, telescoping double bending bars, bending mold quick-change system, which has advantages of large bending torque, small interference area, and no-scratch surface. Besides, it fits in with all kinds of material thickness. It is suitable for high-precision and high-strength industrial signs processing.





Technical Data:

Power supply	AC200V
Power	4.0KW
Compressed air	0.4-0.6MPa
Control axis quantity	5axis
Min. Bending radius	R7mm
Min. Distance between interior angle and exterior angle	4.5mm
Bending distance from start	3mm
Applied material	Stainless steel, galvanized sheet, aluminum coil
Material thickness	0.6-1.0mm
Processing height	Stainless steel, galvanized sheet(20-175mm);aluminum coil(50-175mm)
Material feeding method	Alternating double screw rails feeding
Notching type	Controlled by servo motor
Notching angle	30°/120°
Flanging type	Pneumatic flanging for right angle
Flanging width	14mm
Servo motor	4PCs
Step motor	1PCs
N.W./G.W.	800Kgs/900Kgs
Dimension	2290(L)*860(W)*1560(H)mm
Software support	DXF/PLT files input, support CAD, TYPE3, CORELDRAW, ILLUSTRATOR, etc.

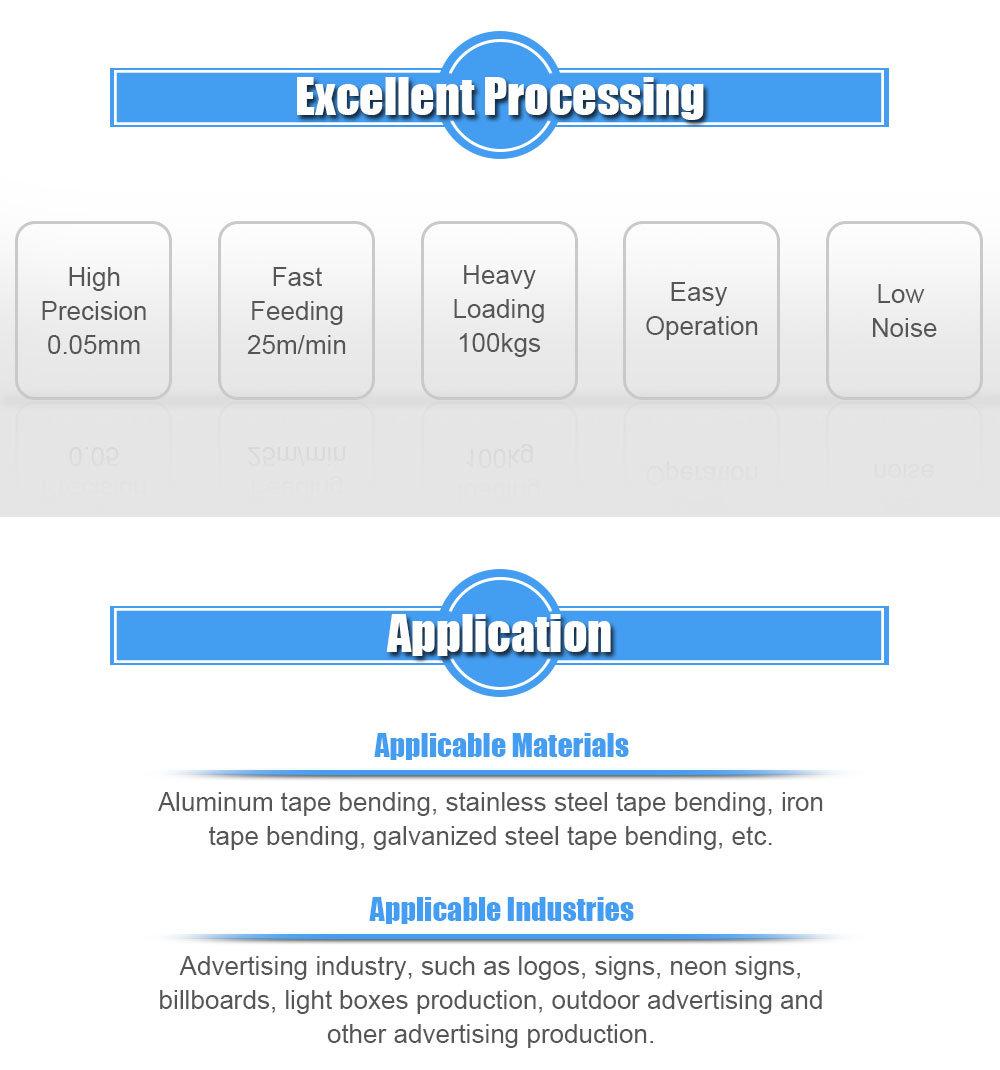

Product Advantage:
1. Unique bending type of telescopic alternative bending--it greatly reduces the bending scratch, avoids interference in the bending process and substantially increases the bending torque, which ensures high-precision bending.2.High precision--it is equipped with closed-loop testing device for testing feed length inside, assuring the total length deviation bending less than 0.1mm between the product and original document and also assuring the consistency of manufacturing the same document repetitively.  3.High degree of forming--the coincidence degree reaches as high as 98% with the panel cut by other sorts of precise equipment. 4.Low slotting cost--it uses Germany imported high hardness special stainless steel slotting tool whose using cost is low at RMB0.02 per groove. 5.The unique alternating clamp feeding way features the feeding speed, high accuracy, no indentation, etc. 6.The aluminum brake bender controls the depth of groove by the numerical control axis and meets the needs of different materials and slot thickness. 7.The aluminum brake bender uses servo motor for notching function with high speed, pneumatic flanging for the right angle and no burr with notching. 8.Intelligent compensation for bending rebound--it is equipped with intelligent compensation system by Perfect Laser based on their several years of P&D experience. Due to this system, it can assure forming precision for all kind of materials. 9.Intelligent bending process--it can reduce interference and collision in the bending process by the intelligent inspection system.  10.Lifelong free update of operating software. 11.Processional, high-efficient and considerate service.



Our Service

1> All of our machines will be full-checked by our quality control department before the shipment.

We make sure that customers will get good products from us. and all of our machine with a 24

months quality guarantee period.

2> We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in the English version) to you, which is easily understood and handle by the customer.

3> We will offer plenty of online supports,  by email, video, telephone, and fax.

4> Our engineer can make a door-to-door instruction training service.
