Onejet Waterjet Cutting Machine for Different Materials Cutting

ONEJET WATERJET CO.,LTD
  • After-sales Service：7X24h
  • Warranty：One Year
  • Certification：CE
  • Condition：New
  • Control：CNC
  • Application：Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather, Fabric, Alloy

Base Info

  • Model NO.：ONEJET50-G30*15
  • Power Source：Electric
  • Style：Gantry
  • Type：Three-Axis
  • Maxi Bearing Pressure：420MPa,60000psi
  • Working Range：3000X1500mm
  • Main Motor：Siemens
  • PLC：Siemens
  • Servos：Yaskawa
  • Soft Starter：Siemens
  • Pressure Adjustable：0-380MPa
  • Guid Linear and Ball Screw：Hiwin&Tbi
  • Cutting Accuracy：0.1mm
  • Power：380,415
  • Transport Package：Pep Inside and Thin Film Outside, Fixed in Contain
  • Specification：3000X1500mm
  • Trademark：ONEJET
  • Origin：Guangdong, China
  • HS Code：8456500000
  • Production Capacity：5 Sets Per Month

Description

Overview Product Description

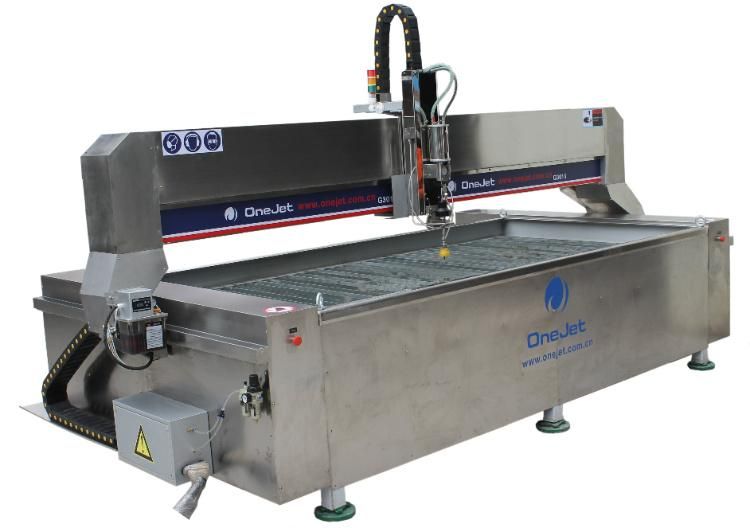

ONEJET50-G30*15 Waterjet cutting machine
Detailed Photos

Onejet Waterjet Cutting Machine for Different Materials CuttingOnejet Waterjet Cutting Machine for Different Materials CuttingOnejet Waterjet Cutting Machine for Different Materials Cutting

Product ParametersPackaging & Shipping

Onejet Waterjet Cutting Machine for Different Materials Cutting

Company Profile

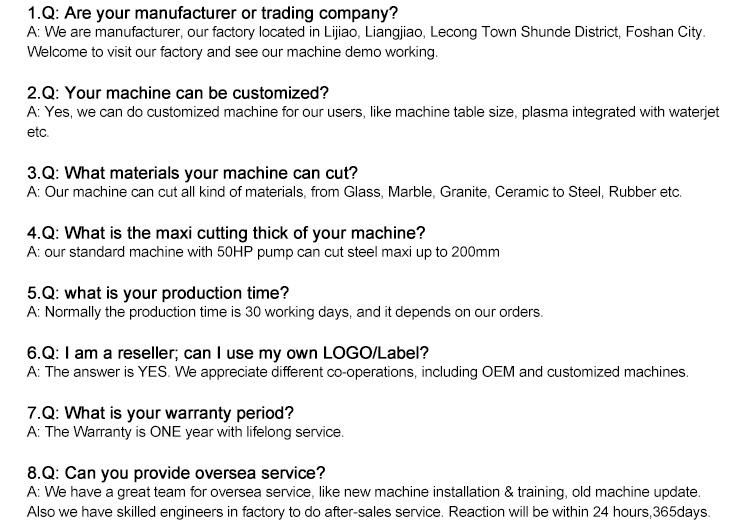

Our AdvantagesFAQ

Onejet Waterjet Cutting Machine for Different Materials Cutting


Table and ControlerModelG20*15G25*15G30*15G30*20G40*20G20*60G25*60Working RangeX2000mm2500mm3000mm3000mm4000mm2000mm2500mmY1500mm1500mm1500mm2000mm2000mm6000mm6000mmCutting Acuracy±0.10mmRepositioning Acuracy±0.03mmLubricationAuto lubrication systemDriver motorsPanasonic/Yaskawa/WISEMaxi travel speedX,Y 9600mm/min; Z 5000mm/minCutting headThree axis headAC headNOSyetemNcstudio based on Windows 7ProgrammNcEditor, AutoCADCapacity filesDXF,G codes,nce,nc etcCovers and protectionsAll stainless steel covers with water & dust proof designControl hardwareIntel Core dual;RAM 4GB; HD 500G; 19inch screen;wireless keyboard and mouse; two USBOptionalsESA SYSTEM/ECS SYSTEM/LANTEK
