Cutting & Fold-bend Machine

8 mm Thick Carbon Metal Plate Bending Machine

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Waterproof Rating:IPX-8
  • Warranty:2-year
  • Condition:New
  • Certification:ISO 9001:2000, CE, TUV
  • Automation:Automatic
  • Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet

Base Info

  • Model NO.:HPB 110T3200
  • Type:Press Brake

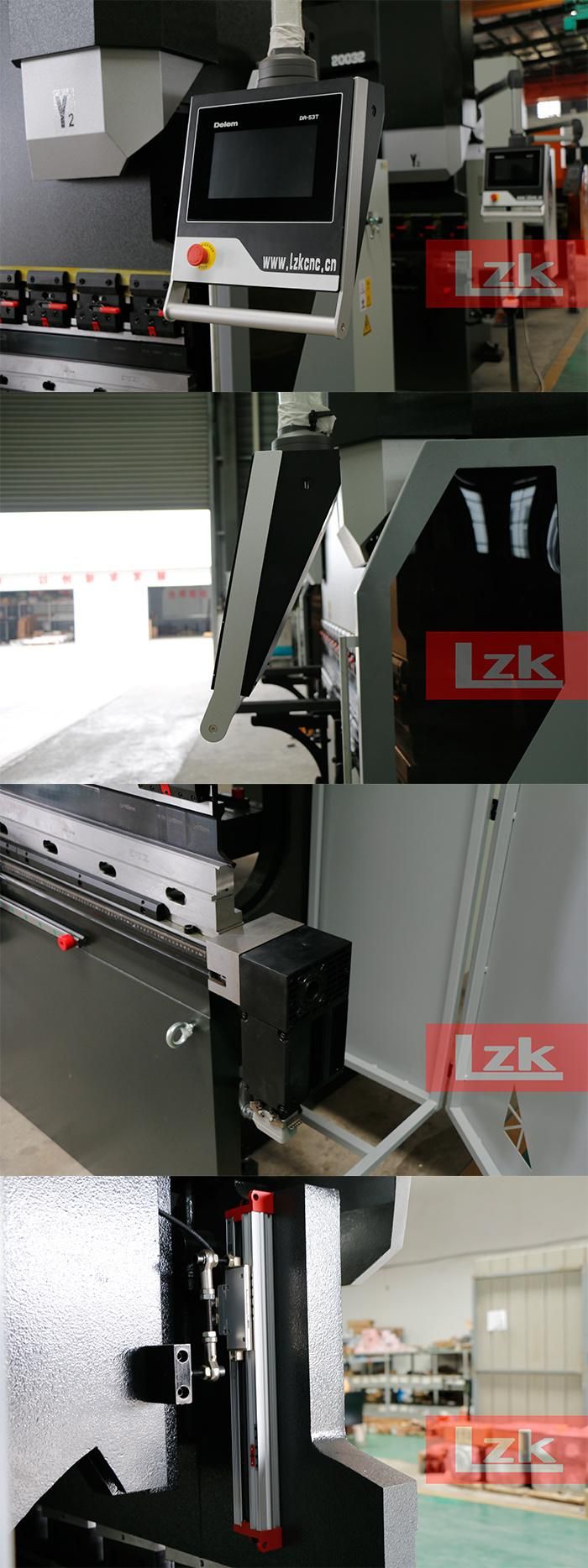

  • CNC System:Delem Da53t
  • Axes:Y1, Y2, R and Automatic Crowning
  • Max Bending Length:4000mm
  • Max Bending Thickness:10mm for 4m Sheet
  • Weight:7600kg

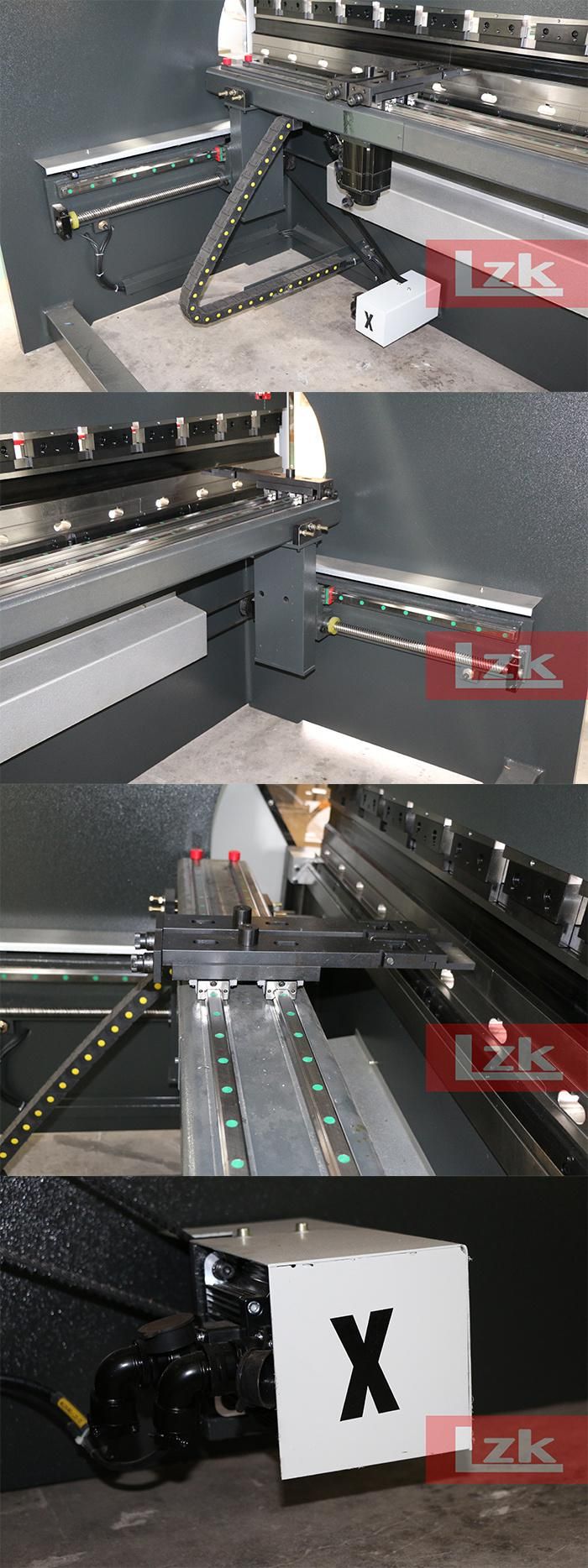

  • Backgauge:600mm Distance, Ball Screw and Linear Guide Rail
  • Main Motor:Servo Motor
  • Main Motor Power:7.5kw

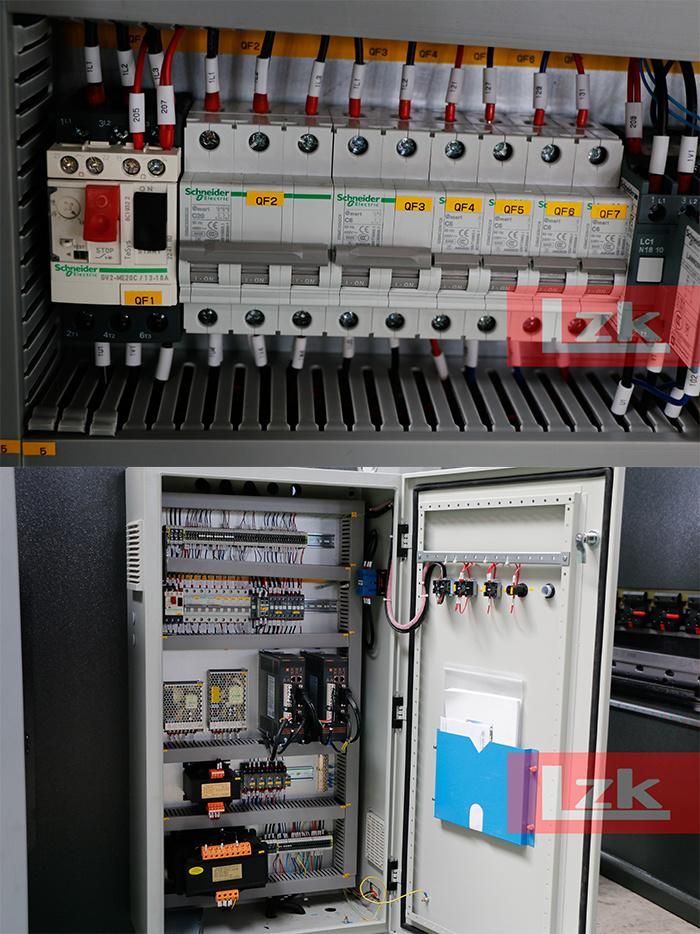

  • Main Electrical Components:Schneider
  • Hydraulic System:Bosch-Rexroth
  • Servo Drive:Japan Yaskawa
  • Grating Ruler:Italy Givi
  • Transport Package:20gp
  • Specification:3800× 1750× 2580mm
  • Trademark:LZK
  • Origin:Maanshan, Anhui Province, China
  • HS Code:8462219000
  • Production Capacity:100 Sets,Month

Description

The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.
Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.8 mm Thick Carbon Metal Plate Bending Machine
8 mm Thick Carbon Metal Plate Bending Machine
8 mm Thick Carbon Metal Plate Bending Machine
8 mm Thick Carbon Metal Plate Bending Machine
8 mm Thick Carbon Metal Plate Bending Machine8 mm Thick Carbon Metal Plate Bending Machine

Our press brakes work well in customer's workshop

8 mm Thick Carbon Metal Plate Bending MachineGerman Customer8 mm Thick Carbon Metal Plate Bending MachineRussia Customer, manufacturer of Yacht

Customer come from different countries for cooperation and inspection

8 mm Thick Carbon Metal Plate Bending Machine
8 mm Thick Carbon Metal Plate Bending Machine
